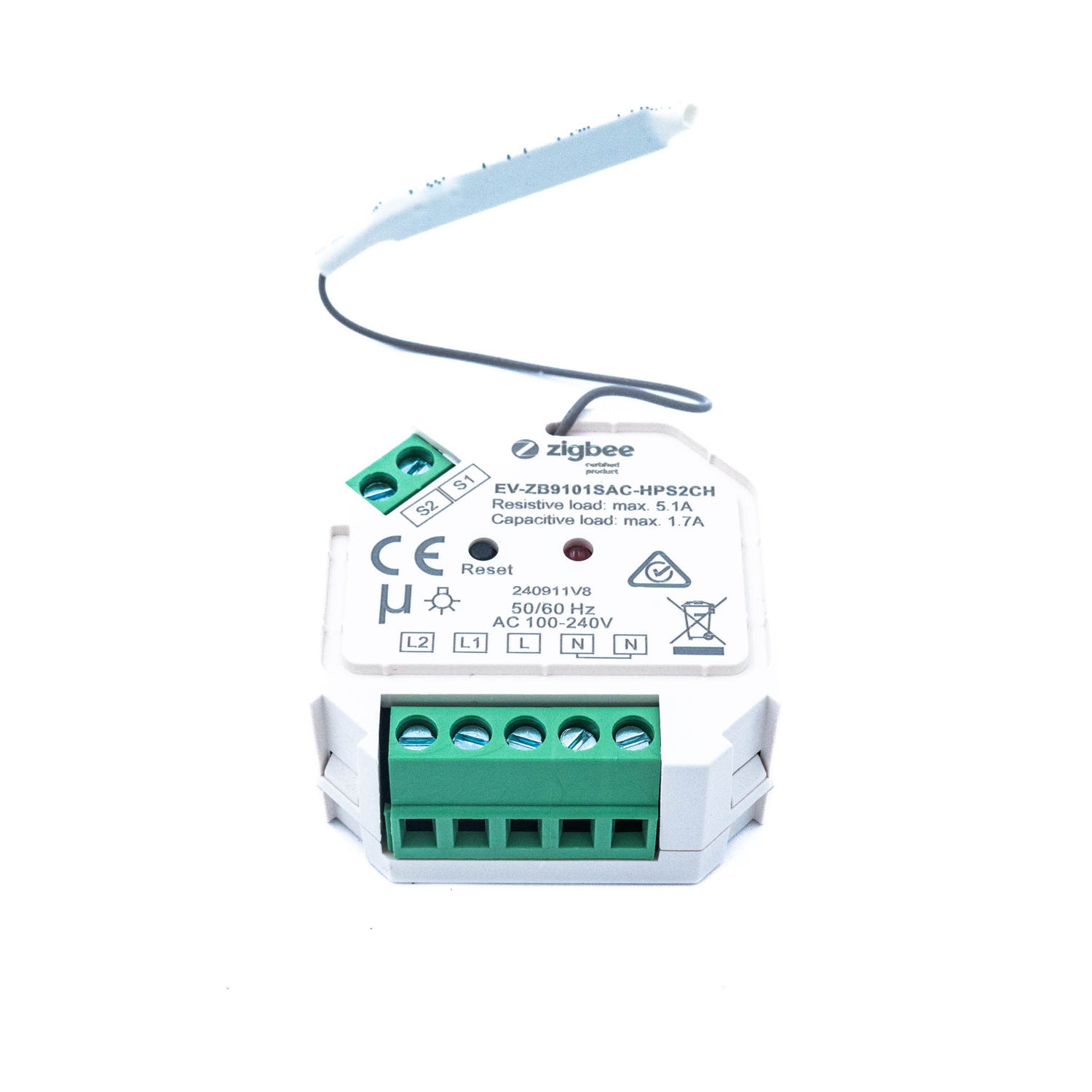

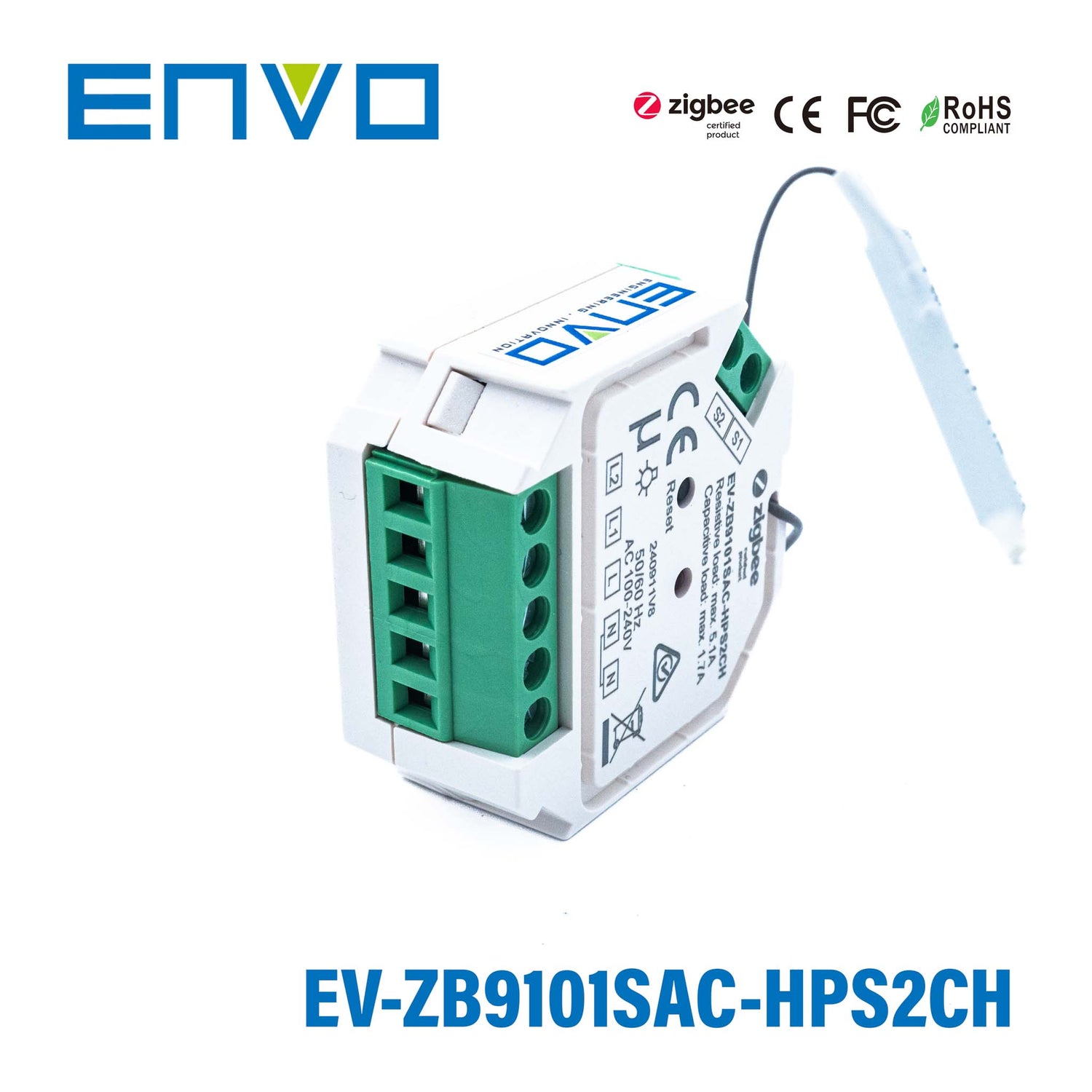

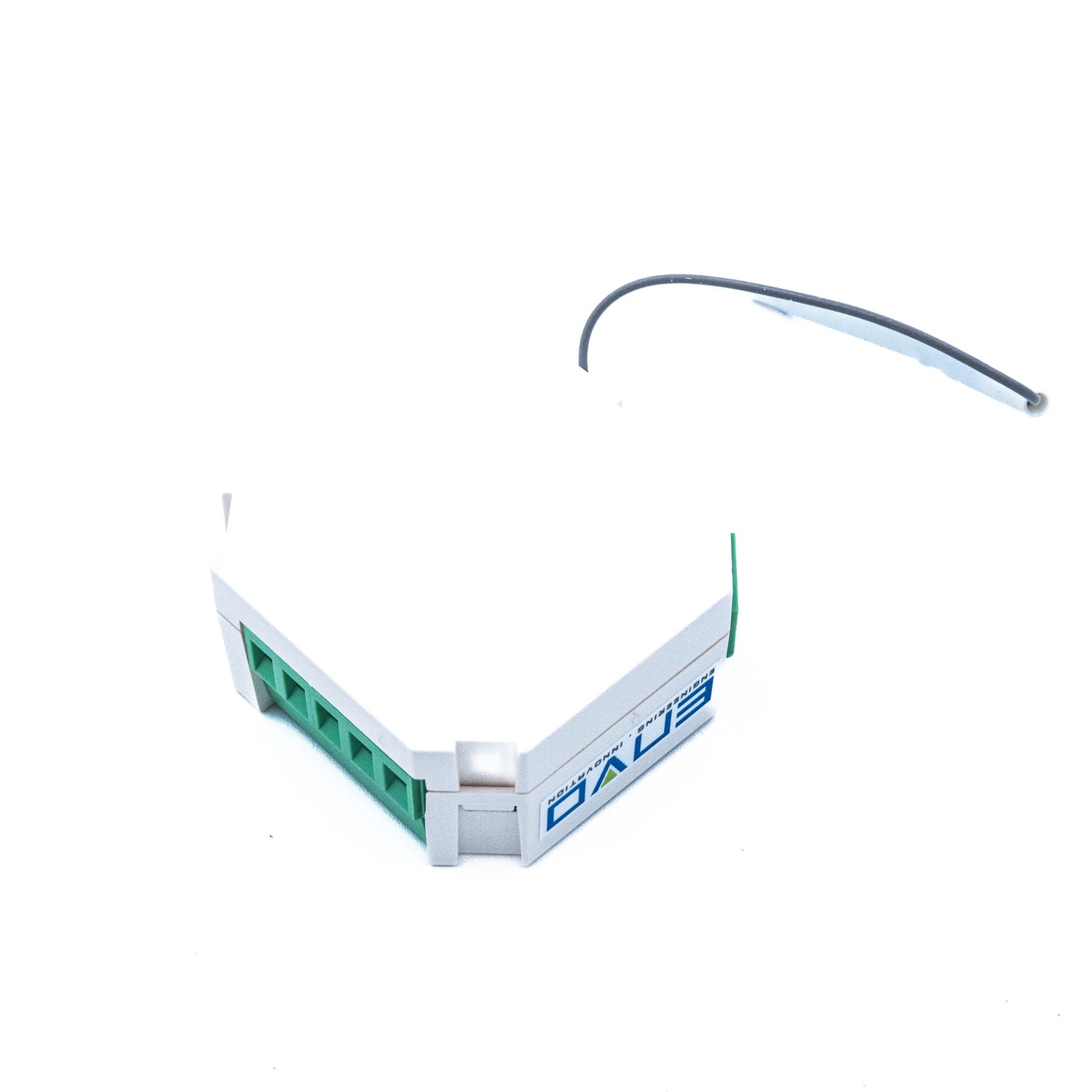

ENVO ZigBee 2Gang In-wall Switch - On/Off Control

$60.05 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • 2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
  • 100-240VAC wide input and output voltage
  • Supports resistive loads and capacitive loads
  • 2 channels output, max. load 5.1A/CH
  • Input and output with screw terminals, safe and reliable
  • Enables to control ON/OFF of connected load
  • ZigBee device with 2 endpoints which can be controlled separately
  • ZigBee end device that supports Touchlink commissioning
  • Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
  • Supports self-forming zigbee network without coordinator and add other devices to the network
  • Supports find and bind mode to bind a ZigBee remote
  • Supports zigbee green power and can bind max. 20 zigbee green power switches
  • Compatible with universal ZigBee gateway products
  • Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
  • Active power and energy metering functionality
  • Mini Size, Easy to be installed into a standard wall box
  • Radio Frequency : 2.4GHz
  • Waterproof grade: IP20
  • DO NOT install with power applied to device.
  • DO NOT expose the device to moisture.

General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

100-240VAC

Output Voltage

100-240VAC

Output Channel

2 Channels

Max. Load

Resistive load: max. 5.1A/CH

Capacitive load: max. 1.7A/CH

Input Type

Constant voltage

Dimension (LxWxH)

45.5x45x20.3mm

Specifications

  • Brand
    Envo
  • Series
    ENVO Zigbee Series
  • Power Rating
    390 Watt
  • Output Voltage
    230 Volt
  • Rated Current
    1.7 Ampere
  • Input Voltage
    100V~240V
  • Standards Met
    CE,FC,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    1.79 in
  • Width
    1.77 in
  • Height
    0.8 in

File Downloads

::specification::
