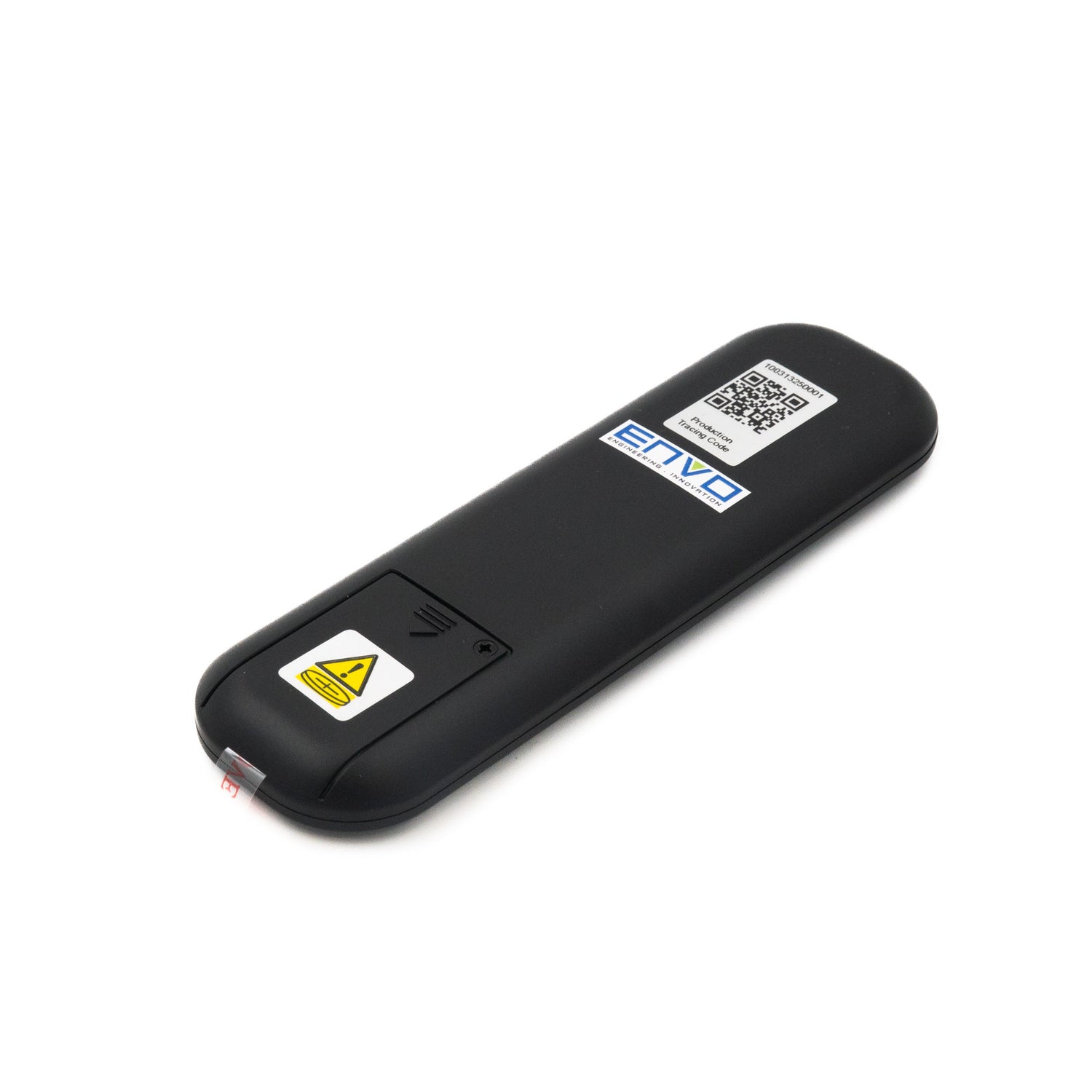

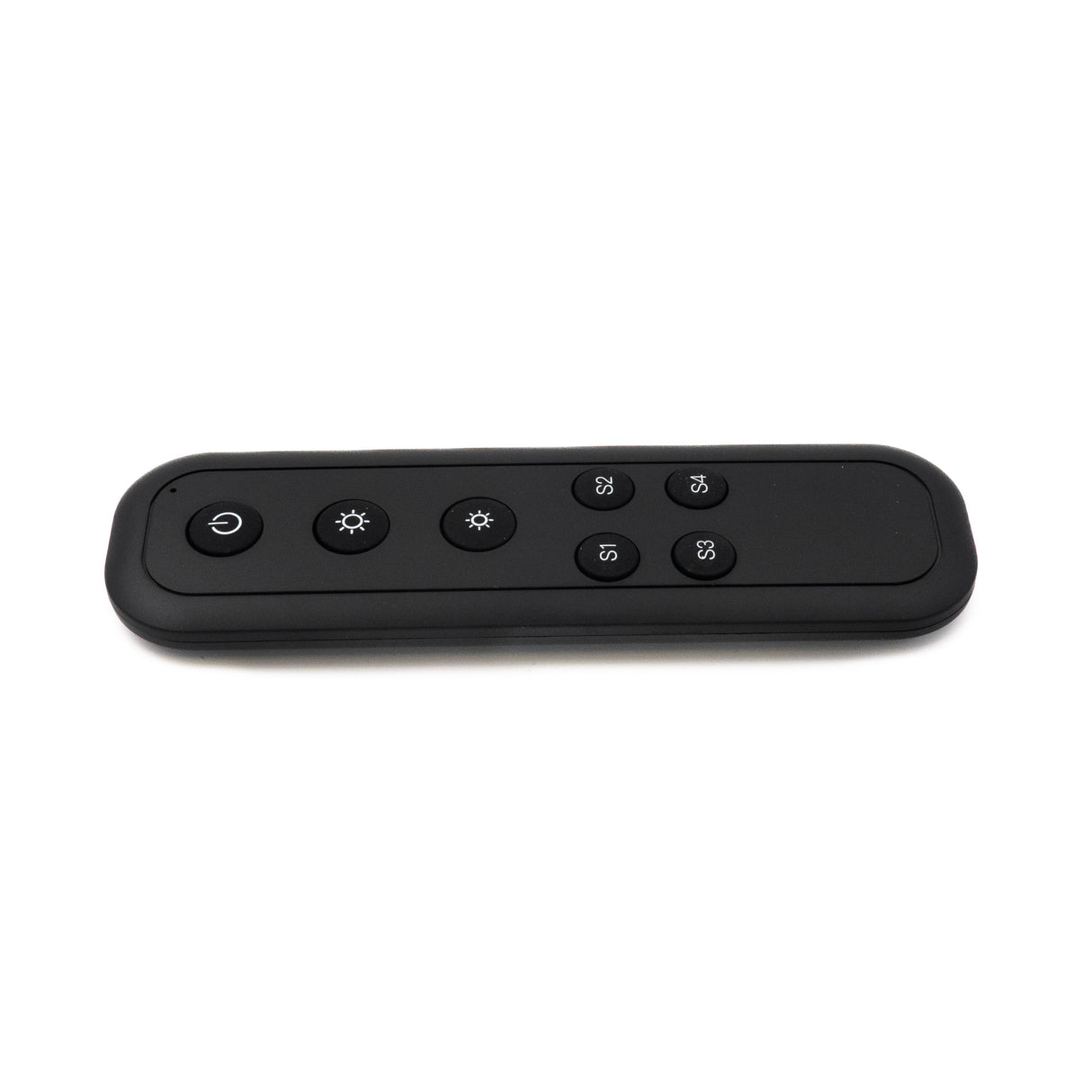

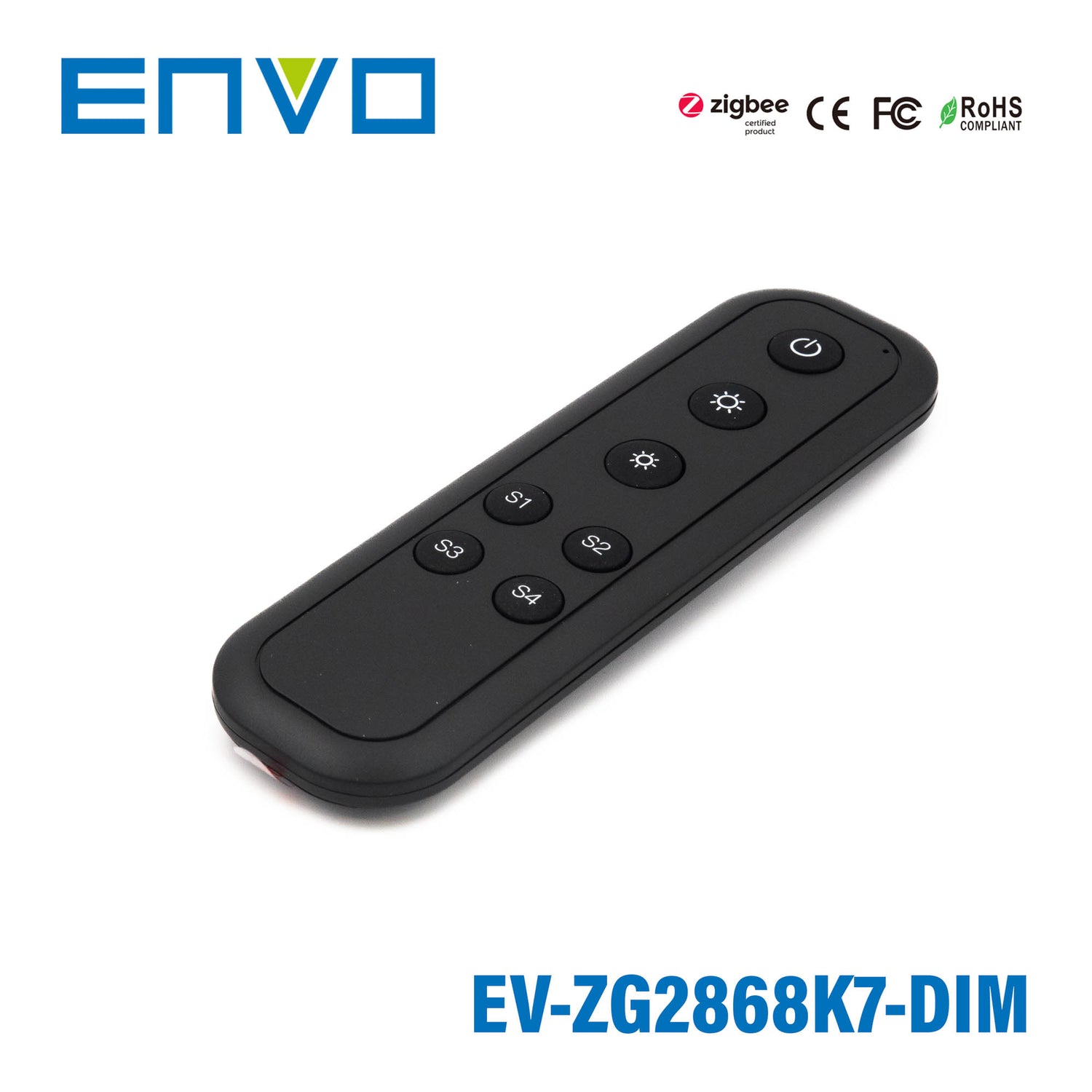

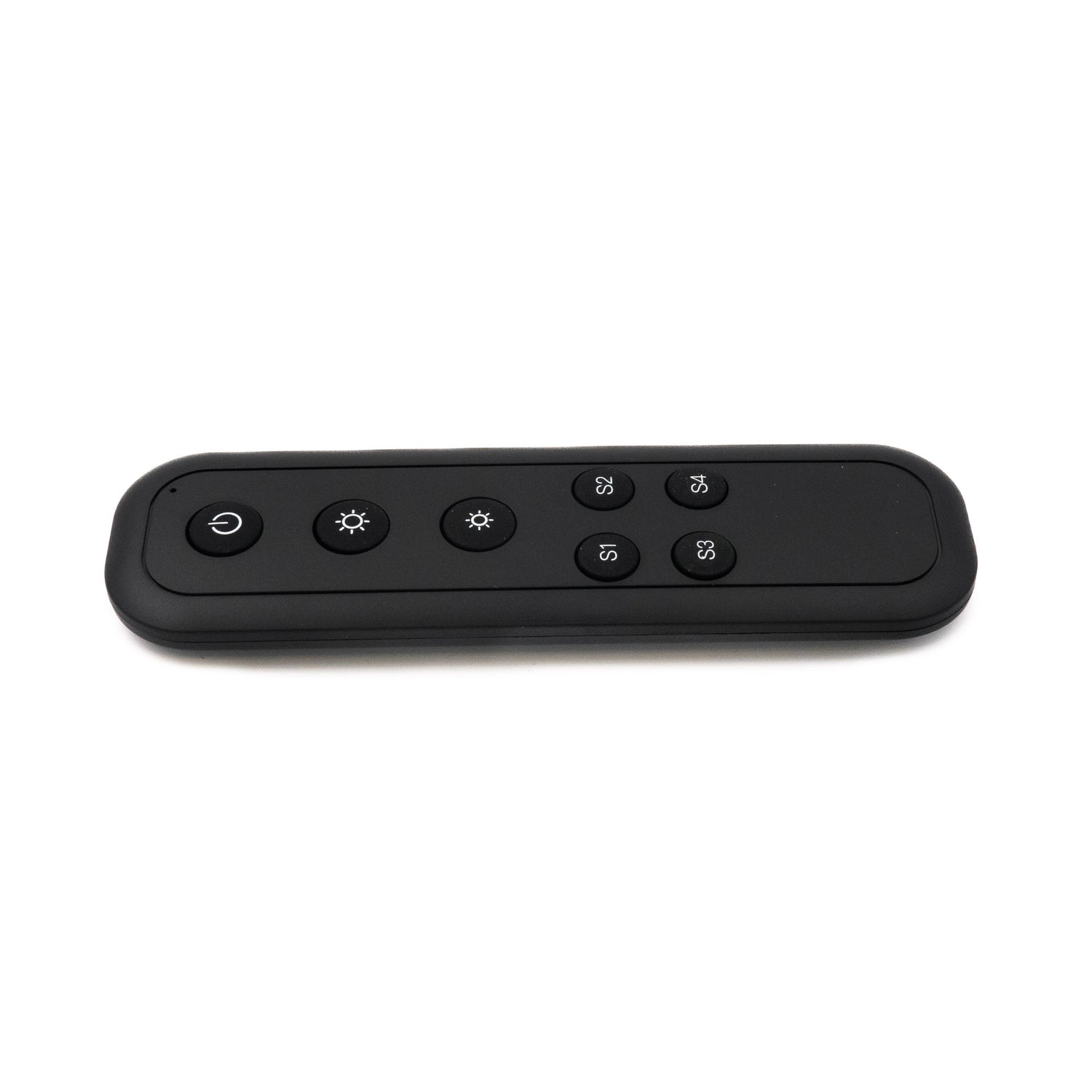

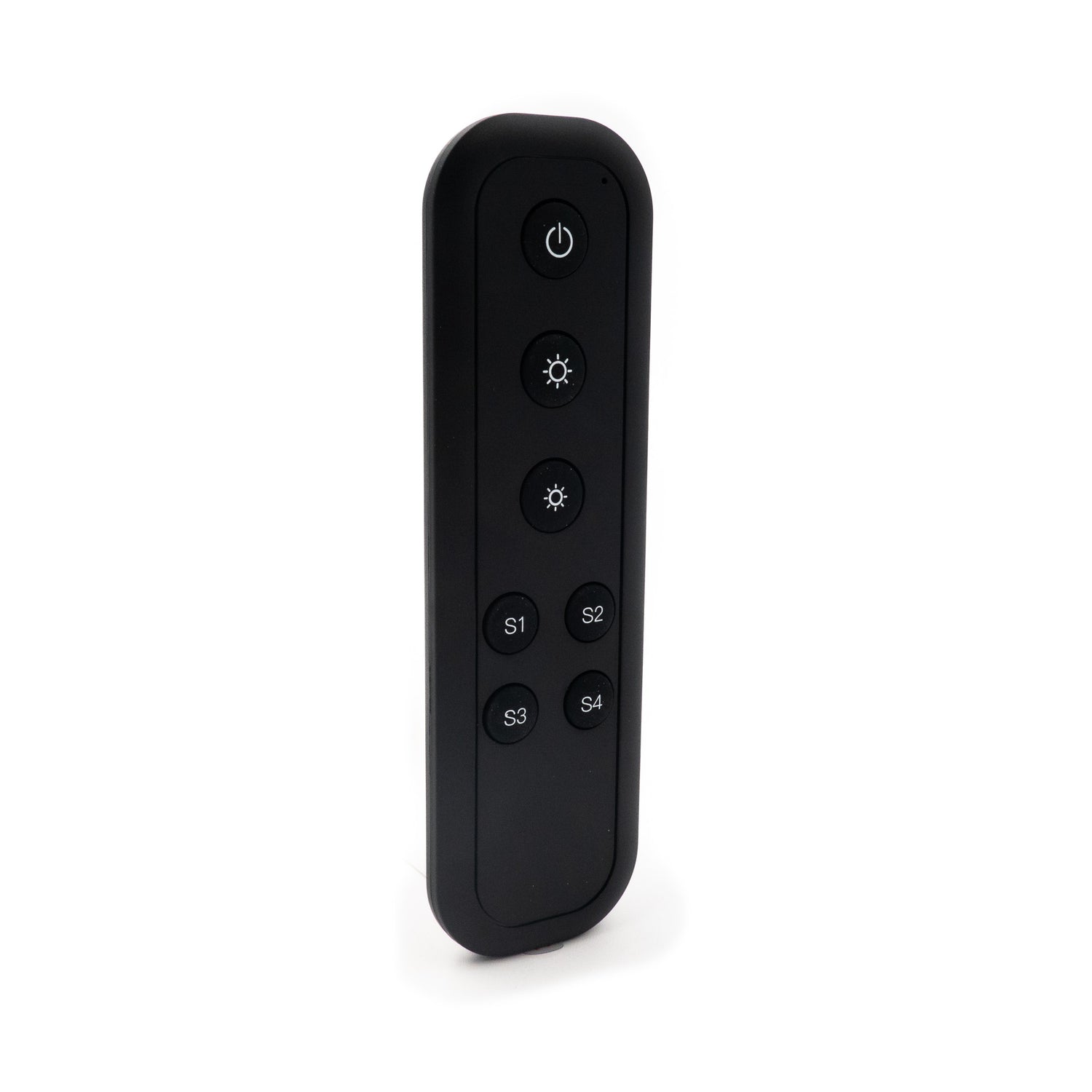

ENVO ZigBee Economic Single Color Remote
$25.52 USD
Unit price /
Unavailable
Description
Description
Features:
- ZigBee single color remote based on ZigBee 3.0
- Enables to control single color lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices through Touchlink commissioning
- Supports 1 group for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- This device contains button lithium batteries that shall be stored and disposed properly.
- DO NOT expose the device to moisture.
General Specification
Protocol
ZigBee 3.0
Operation Voltage
3VDC (CR2025 battery)
Transmission Frequency
2.4GHz
Transmission Range (free field)
30m
Dimming Range
0.1%-100%
Waterproof Grade
IP20
Dimension (LxWxH)
137x40x11.5mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage3 Volt
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.39 in
-
Width1.57 in
-
Height0.45 in
