Mean Well

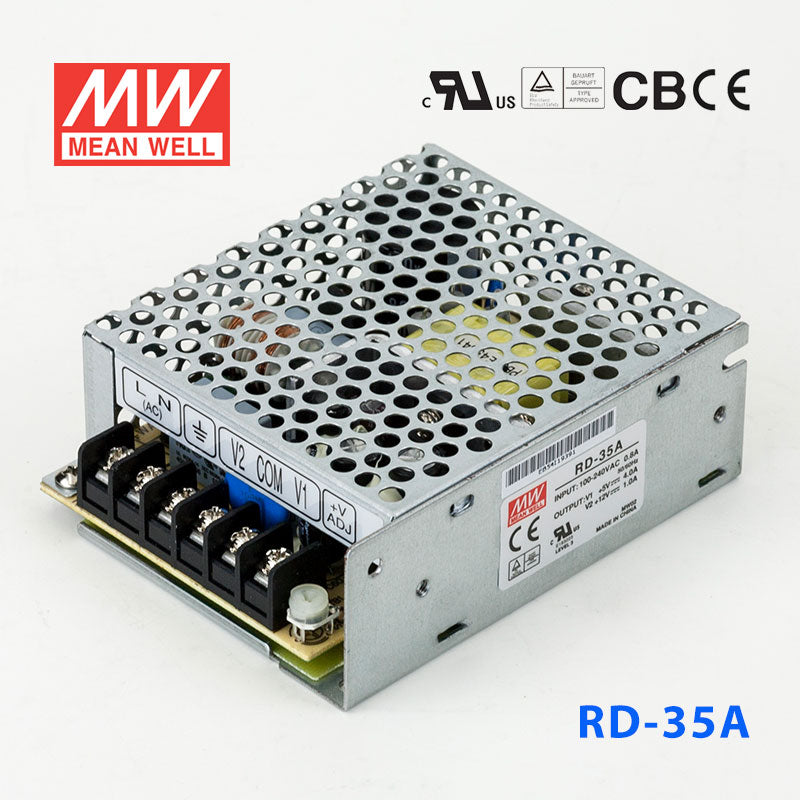

Mean Well RD-35A Power Supply 35W 5V 12V 4A

miniature sizeeconomicalwithstand 5G vibration and 70°C operationdual output
SKU RD-35A
$19.45 USD
Shipping calculated at checkout.

Select model — 5 in this family

RD-35A
In stock
|

Overview

RD-35A is the 5V / 12V output model of this series: rated current 4A / 1A, rated power 32W, typical efficiency 79%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RD-35ASpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2
DC VOLTAGE
5V / 12V
RATED CURRENT
4A / 1A
CURRENT RANGE
0 ~ 4A / 0 ~ 1A
RATED POWER
32W
RIPPLE & NOISE (max.)Note.2
80mVp-p / 120mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0% / ±6.0%
LINE REGULATIONNote.4
±0.5% / ±1.5%
LOAD REGULATIONNote.5
±0.5% / ±3.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
79%
AC CURRENT (Typ.)
0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)on CH1 output
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3096.5K hrs min. Telcordia SR-332 (Bellcore) ; 541.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*82*36mm (L*W*H)
PACKING
0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation. (In order to meet tolerance, it is recommended that CH1 load >15% rated current for A type and CH1 load > 10% rated current for B type.)
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RD-35A Mechanical Specification
Mechanical Specification
RD-35A Block Diagram
Block Diagram
RD-35A Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RD-35A in a small controller that needs both 5V logic and 12V support power?

Yes. The RD-35A is a dual output constant voltage supply with 5V and 12V outputs. The listed 5V output current is 4A and total power is 32W, so it fits lower-power control or embedded systems that need both rails.

Is the RD-35A suitable for compact automation hardware with limited mounting space?

It is well suited to compact enclosures because the housing is 99.0 x 82.0 x 36.0 mm and weighs 0.3 kg. With 32W total power and a 5V output rated at 4A, it fits lighter-duty industrial or embedded equipment that needs a small dual output supply.

Can the RD-35A be used in industrial equipment that sees vibration or warm cabinet conditions?

Yes. The specifications list 5G vibration resistance and an operating range of -25°C to +70°C. Those ratings make it suitable for enclosed industrial and automation equipment where vibration and internal heat are part of normal operation.

Is the RD-35A appropriate for outdoor installations?

An IP rating is not listed for this model, so it should be considered an indoor power supply or one that must be installed inside a protective enclosure. The operating temperature range is -25°C to +70°C, but no outdoor ingress protection is specified.

How does the RD-35A compare with the other RD family models listed here?

The RD-35A is one of the smaller models at 32W with a listed 5V output current of 4A. Other specified siblings are RD-35B at 35W with 5V 2.2A and 24V 1A, RD-3513 at 35.1W with 13.5V 1.3A and -13.5V 1.3A. Higher power models in the RD series include RD-50A, RD-50B, RD-65A, RD-65B, RD-85A, RD-85B, RD-125A, and RD-125B, which offer higher wattages and different voltage combinations.
