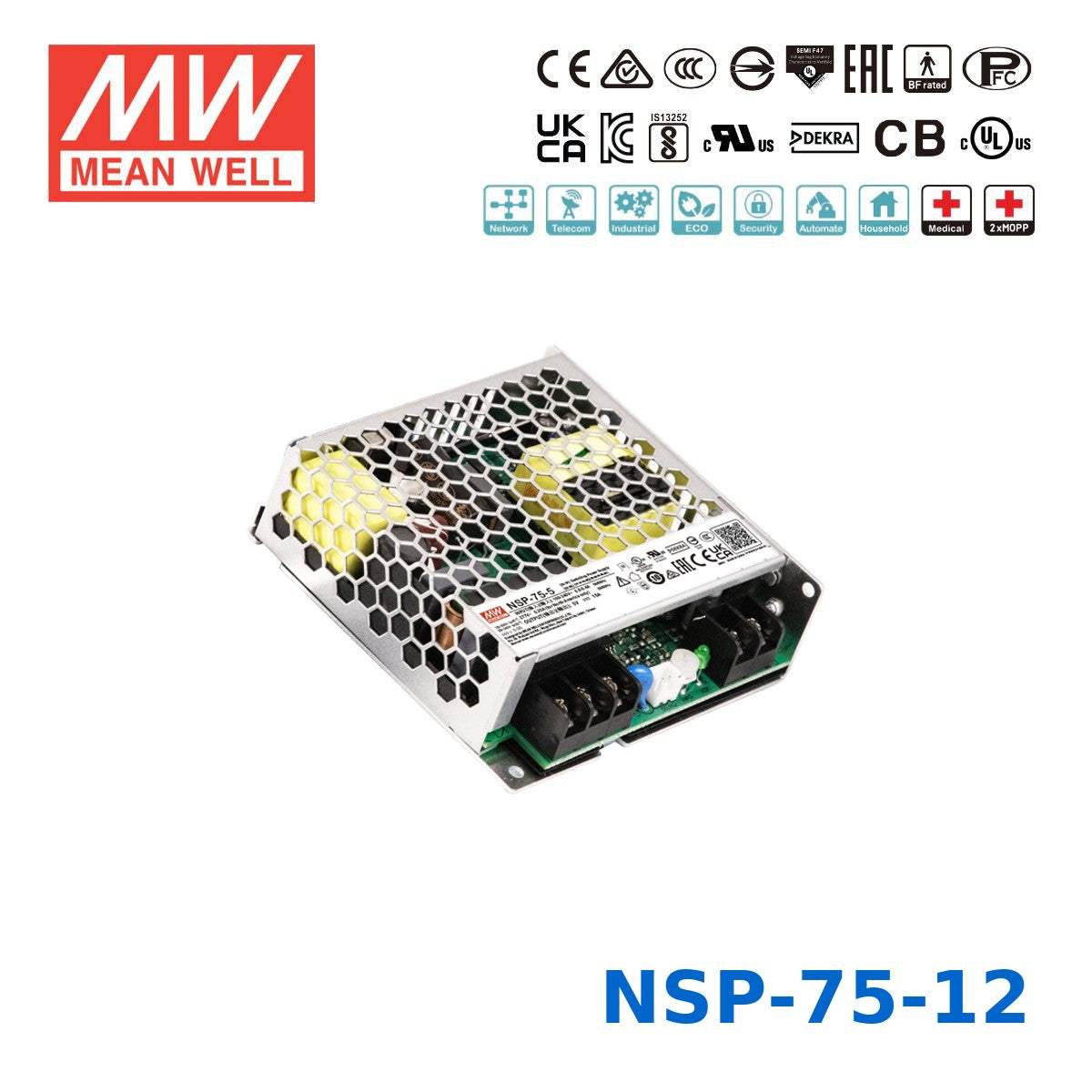

Mean Well 75.6W High Reliable Multi-Industries Power Supply 12V 6.3A

Name: Mean Well 75.6W High Reliable Multi-Industries Power Supply 12V 6.3A
Brand: Mean Well
SKU: NSP-75-12
Price: 27.81 USD
Availability: InStock

$27.81 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.

Key Features

Specifications

Brand

Mean Well
Series

NSP Series
Power Rating

75.6 Watt
Output Voltage

12 Volt
Rated Current

6.3 Ampere
Input Voltage

85V~305V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

3.9 in
Width

3.82 in
Height

1.18 in
Weight

0.66 lb

File Downloads

::specification::
