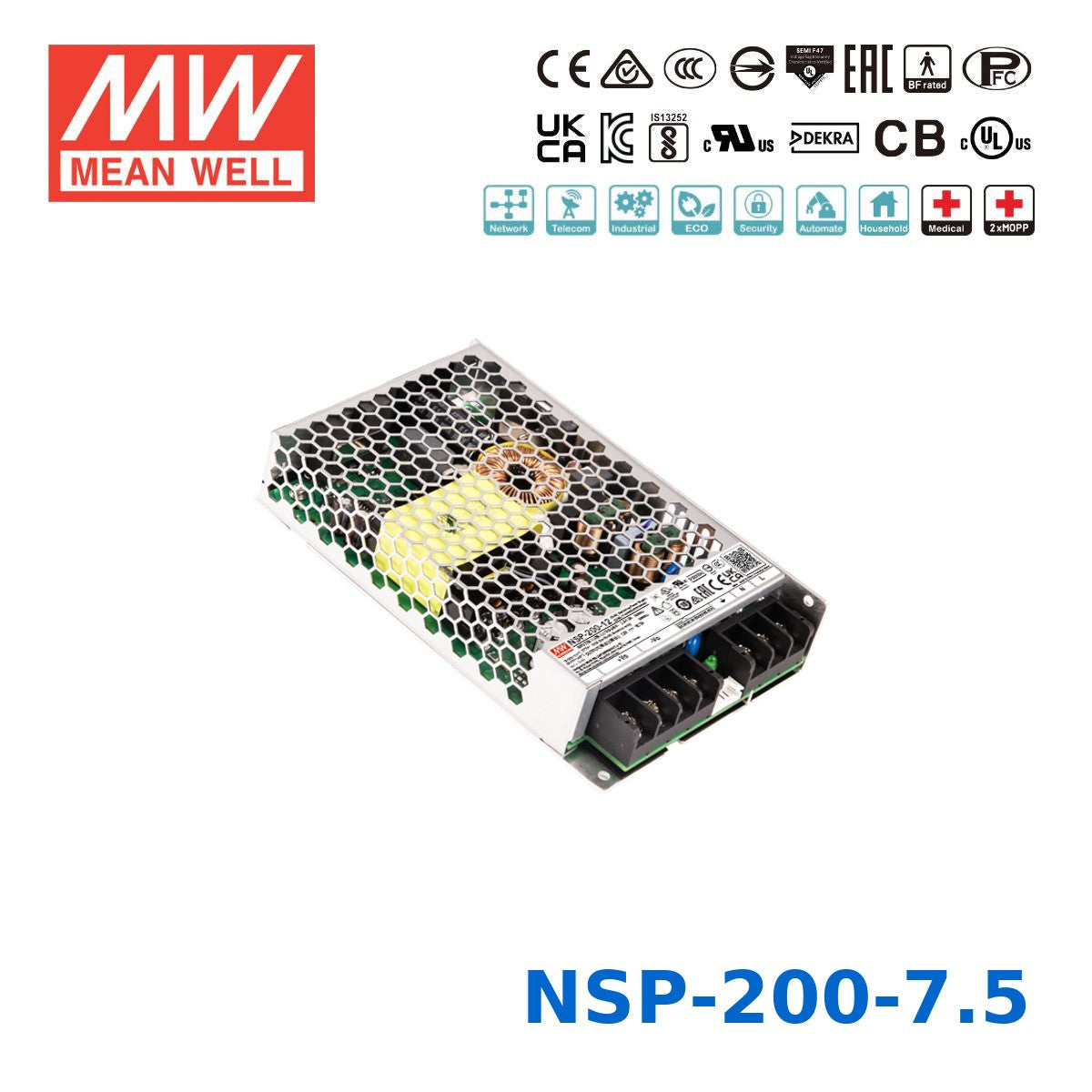

Mean Well 201W High Reliable Multi-Industries Power Supply 7.5V 26.8A

Name: Mean Well 201W High Reliable Multi-Industries Power Supply 7.5V 26.8A
Brand: Mean Well
SKU: NSP-200-7.5
Price: 39.33 USD
Availability: InStock

$39.33 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.

Key Features

Specifications

Brand

Mean Well
Series

NSP Series
Power Rating

201 Watt
Output Voltage

7.5 Volt
Rated Current

26.8 Ampere
Input Voltage

85V~305V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

6.26 in
Width

3.82 in
Height

1.18 in
Weight

1.1 lb

File Downloads

::specification::
