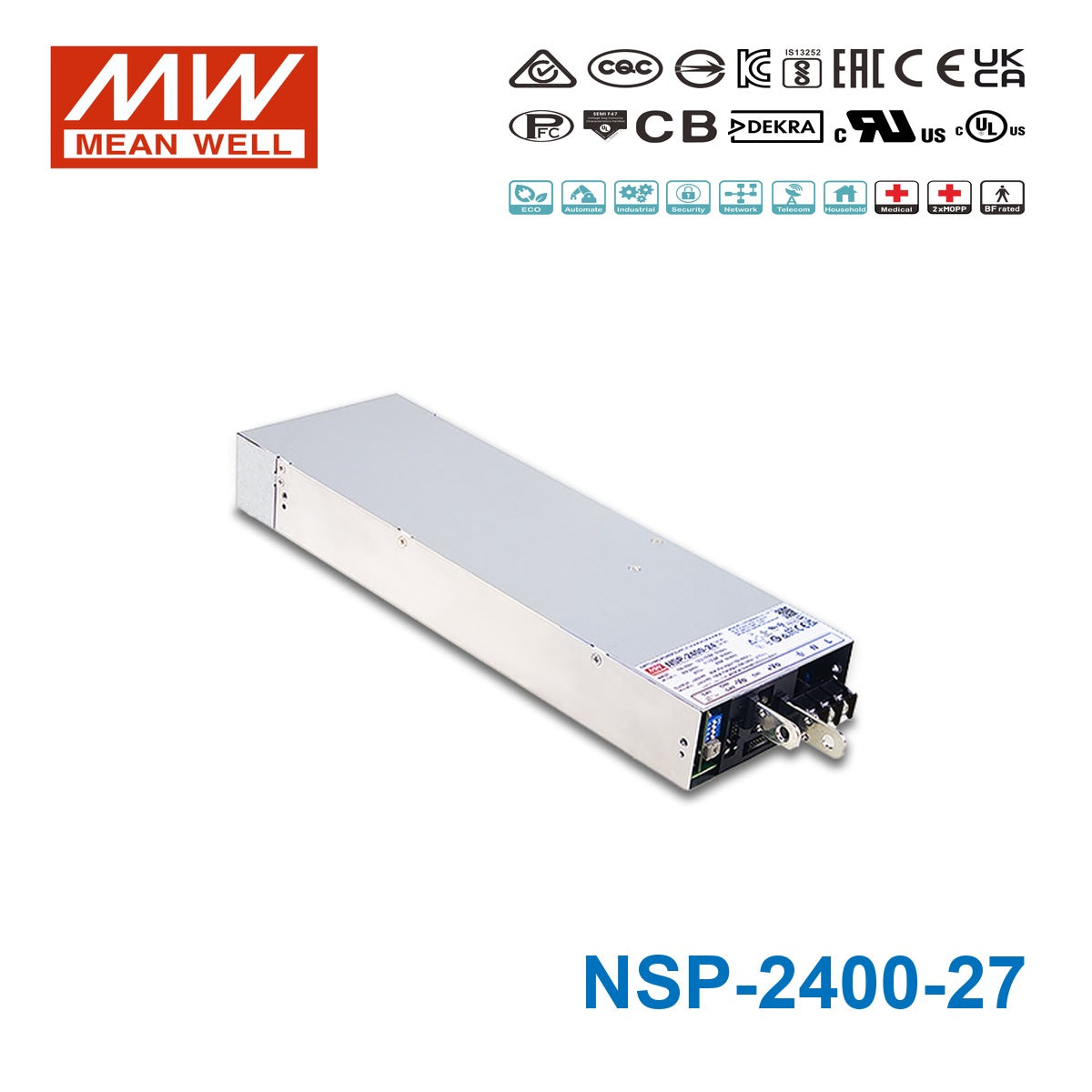

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well NSP-2400-27 2397W 27V Compact Power Supply 88.8A

Name: Mean Well NSP-2400-27 2397W 27V Compact Power Supply 88.8A
Brand: Mean Well
SKU: NSP-2400-27
Price: 464.0 USD
Availability: InStock

$464.00 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well NSP-2400-27 is a 2397W, 27V enclosed AC/DC power supply with built-in active PFC, engineered for high-reliability service across industrial, medical, household and ITE applications. It delivers a stable 27V DC output at up to 88.8A, sustains 4795W peak power (200% of rated), and carries BSMI, CB, CE, EAC and UL certifications for global compliance.

Accepting a wide 85–305VAC input (277VAC operable) with SEMI F47 voltage sag immunity, the NSP-2400-27 holds up where supply quality is poor. Output voltage is programmable across 0–120% and current across 0–100% through the built-in CANBus interface, with remote on/off, remote sense and DC OK signalling. PCB conformal coating, intelligent fan speed control and a -40°C to +85°C operating range suit it to harsh environments, and up to 9600W or (3+1) units can be paralleled. At 325.8 x 107 x 41 mm it is around 55% smaller than the RSP-2400 generation it replaces.

Key Features

✓ Constant voltage output: 27V DC at up to 88.8A (2397W)
✓ Peak power capability: 4795W — 200% of rated, for up to 5 seconds
✓ Programmable output: voltage 0–120%, current 0–100%
✓ Built-in CANBus communication (Modbus available by request)
✓ Wide input range: 85–305VAC / 250–431VDC, 277VAC operable
✓ SEMI F47 voltage sag immunity; 2 x MOPP isolation for BF-type medical use
✓ Efficiency up to 91%, built-in intelligent fan speed control
✓ Parallel operation up to 9600W or (3+1) units
✓ Wide operating temperature: -40°C to +85°C
✓ Safety certifications: BSMI, CB, CE, EAC, UL (KC and BIS by request)
✓ Compact enclosure: 325.8 x 107 x 41 mm, 2.32 kg
✓ 5 year Mean Well warranty

Specifications

Brand

Mean Well
Input Voltage

85V~305V
Standards Met

BSMI,CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Length

12.83 in
Width

4.21 in
Height

1.61 in
Weight

5.11 lb
