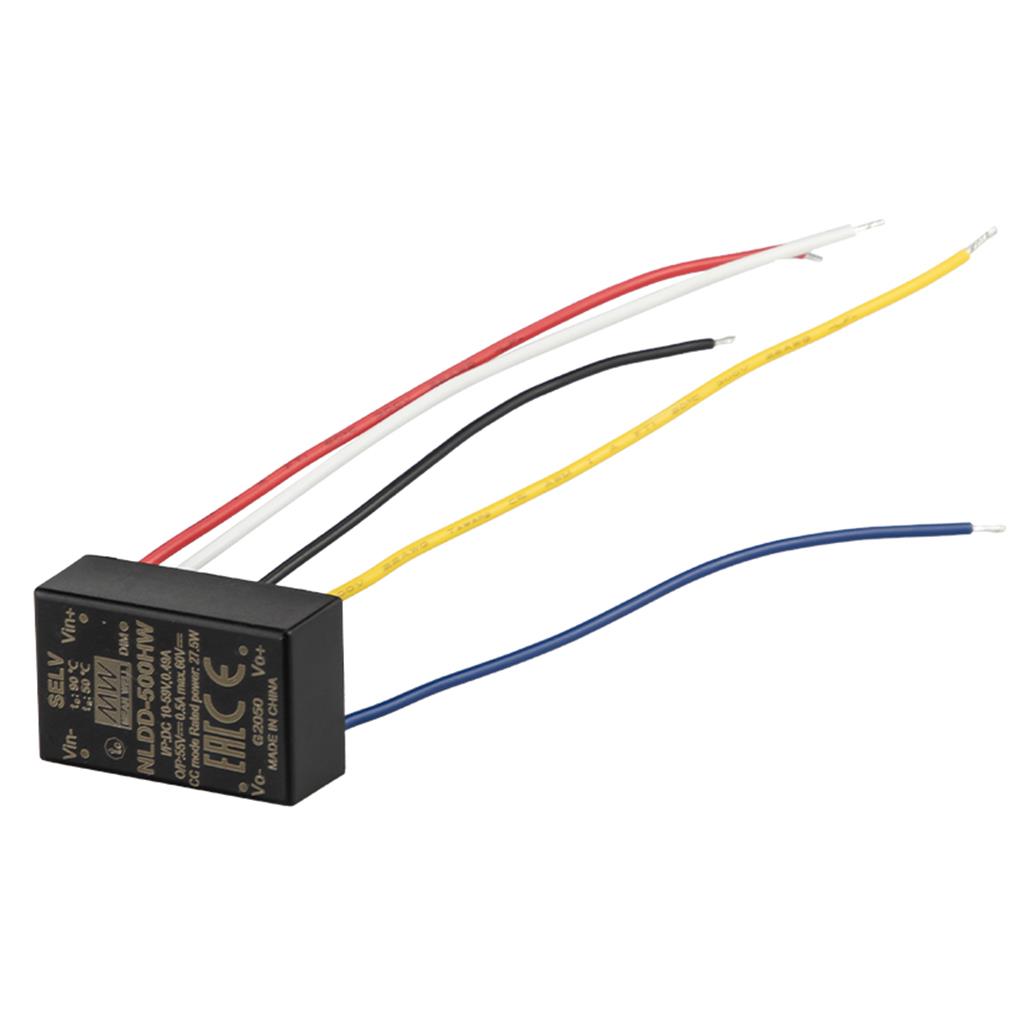

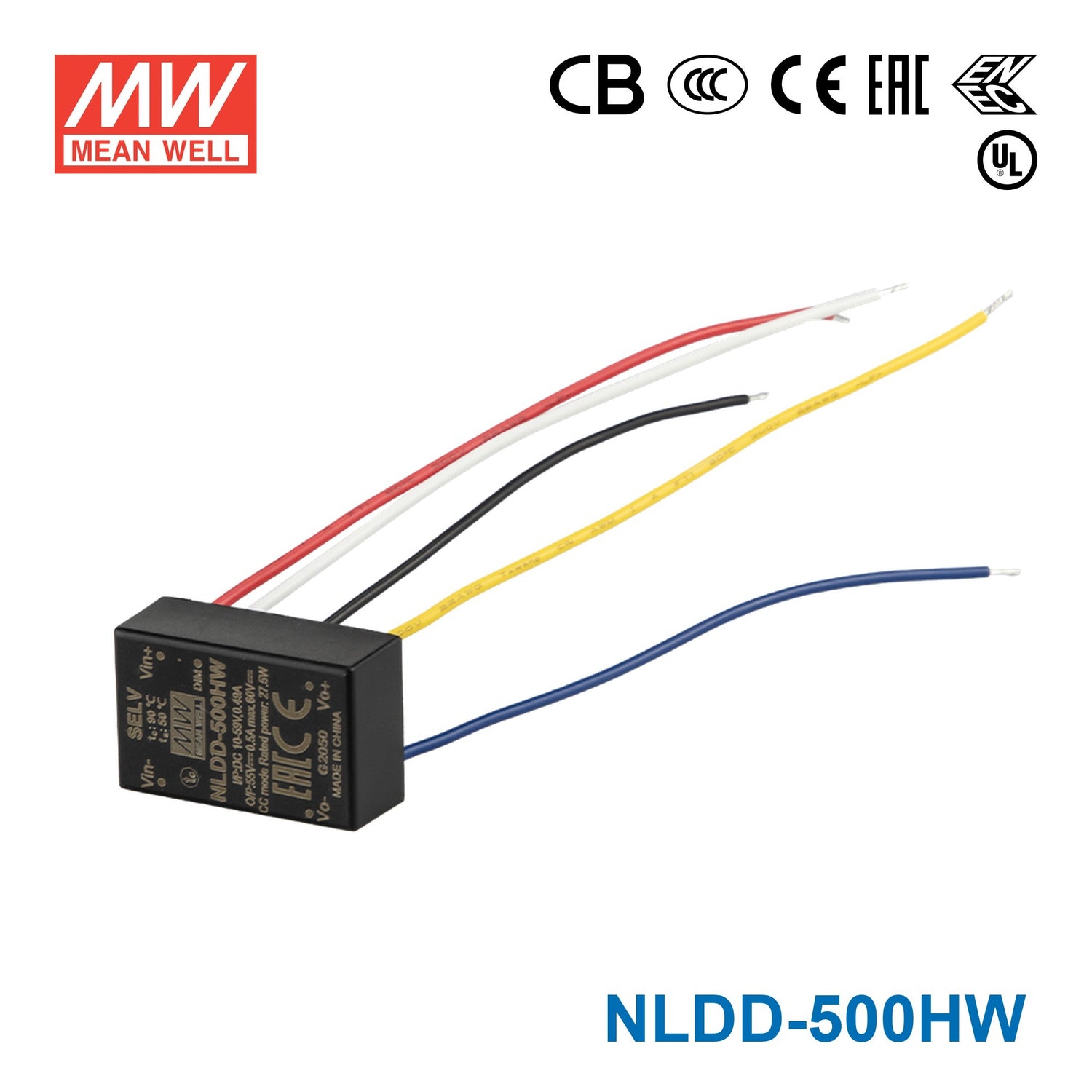

Mean Well NLDD-500HW DC/DC LED Driver CC 500mA - Step-down Wire Type

Name: Mean Well NLDD-500HW DC/DC LED Driver CC 500mA - Step-down Wire Type
Brand: Mean Well
SKU: NLDD-500HW
Price: 7.25 USD
Availability: InStock

constant currentstep downhigh efficiency up to 97%IP67wire style

SKU NLDD-500HW

$7.25 USD

Shipping calculated at checkout.

Available to order

Overview

NLDD-500HW is the model of this series: typical efficiency 96% at full load and 36VDC/48VDC input.

NLDD-H series is a 60W DC/DC LED driver featuring constant current output. NLDD-H operates from 10~56VDC and offers models with different rated current ranging between 350mA and 1400mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance the heat dissipation allows this series to fit for classⅢ or DC bus lighting application.

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10 ~ 56VDC(59VDC Max.)
Wide output LED forward voltage: 6 ~ 52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
For class Ⅲ application(SELV)
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated and compact site
Suitable for driving illumination LED
3 years warranty

Specifications

NLDD-500HWSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT RANGE: 500mA
VOLTAGE RANGE^Note.4: 6 ~ 52VDC
CURRENT ACCURACY (Typ.): ±5% at 48VDC input
RIPPLE & NOISE(max.)^Note.2: 150mVp-p
SWITCHING FREQENCY: 200KHz

INPUT

VOLTAGE RANGE: 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.): 96% at full load and 36VDC/48VDC input
DC CURRENT Full load^Note.3: 490mA
DC CURRENT No load: 5mA

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF: Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY: 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.): 2mA at PWM dimming OFF at 48VDC input

PROTECTION

SHORT CIRCUIT: Regulated at rated current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE: Tj 165℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ + 50℃(Refer to derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.): 90℃
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT: NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL: Expoxy(UL94-V0)

Test conditions and notes7

1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
3.Test condition: 48VDC input.
4.Output voltage will always step down by 4 volts from input DC voltage.
5.The output of NLDD-H should not be connected to the input of the same unit or output from other sources.
6.The power supply is regarded as a part of the components in the system, and the final EMI test needs to be tested with the final device. If an additional EMI filter circuit is required to meet the electromagnetic compatibility requirements, please refer to the EMC test report for details. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7.Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

NLDD-500HW Mechanical Specification — Mechanical Specification

NLDD-500HW Derating Curve — Derating Curve

NLDD-500HW PWM Dimming Control — PWM Dimming Control

NLDD-500HW Efficiency VS Output Voltage — Efficiency VS Output Voltage

Typical applications

DC battery source lighting
Portable lighting
Commercial lighting
DC 48V Track lighting
DC 24V landscape lighting

Downloads

Certificates3

Mean Well NLDD-H-EMC Certificate PDF Download

Mean Well NLDD-CE-dec Certificate PDF Download

Mean Well NLDD-UK-dec Certificate PDF Download

Test reports1

Mean Well NLDD-500H Test Report PDF Download

FAQ

Can the NLDD-500HW be used for a constant current LED downlight module?

Yes, if the downlight module is designed for 500mA constant current operation. The NLDD-500HW is a 60W step-down constant current driver, so it is not intended for loads that expect fixed constant voltage output.

Is this driver suitable for LED signage modules that need moderate drive current?

It can be suitable for signage modules or small LED arrays built for 500mA constant current input. The LED load also has to stay within the driver's 52-6V constant current operating range.

Can the NLDD-500HW be used in outdoor or damp-location LED products?

The datasheet does not specify an IP rating, so it is not rated for outdoor or damp locations. The operating temperature range is -40°C to +50°C. It is fully potted and suitable for sealed LED products operating within those limits.

How do I check LED compatibility for the NLDD-500HW?

The key point is that this is a constant current driver, not a constant voltage supply. Its constant current range is 52-6V, and the number of LEDs depends on the forward voltage of each LED rather than on a single fixed count.

How does the NLDD-500HW compare with other wire-style NLDD models?

The listed wire-style siblings are NLDD-350HW at 350mA with 6-52V, NLDD-700HW at 700mA with 6-52V, NLDD-1050HW at 1050mA with 6-52V, NLDD-1200HW at 1200mA with 6-46V, and NLDD-1400HW at 1400mA with 6-46V, all shown at 60W. The NLDD-500HW sits in the middle of that group as the 500mA wire-style model.
