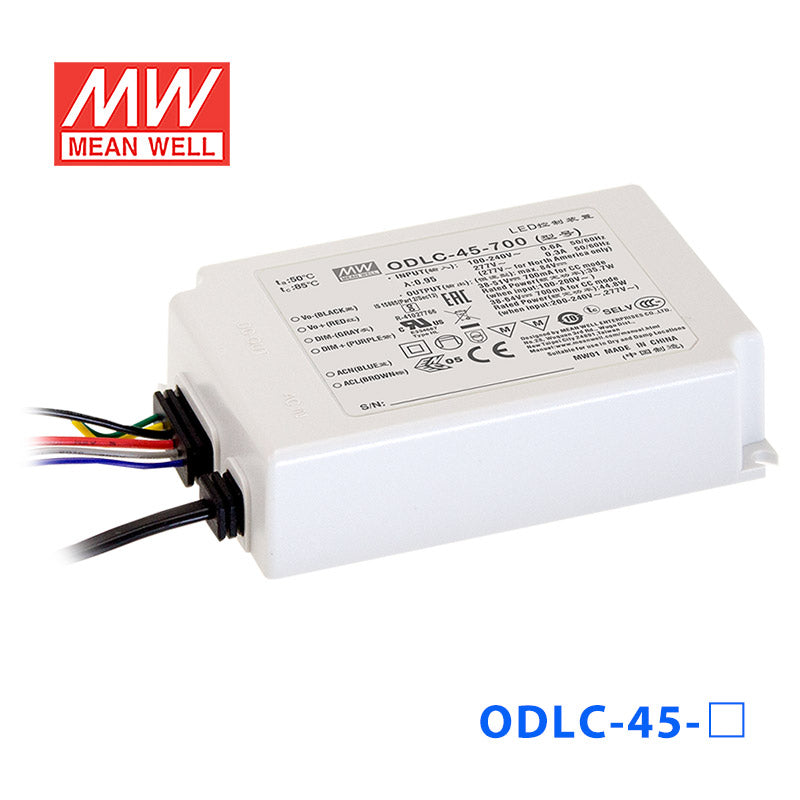

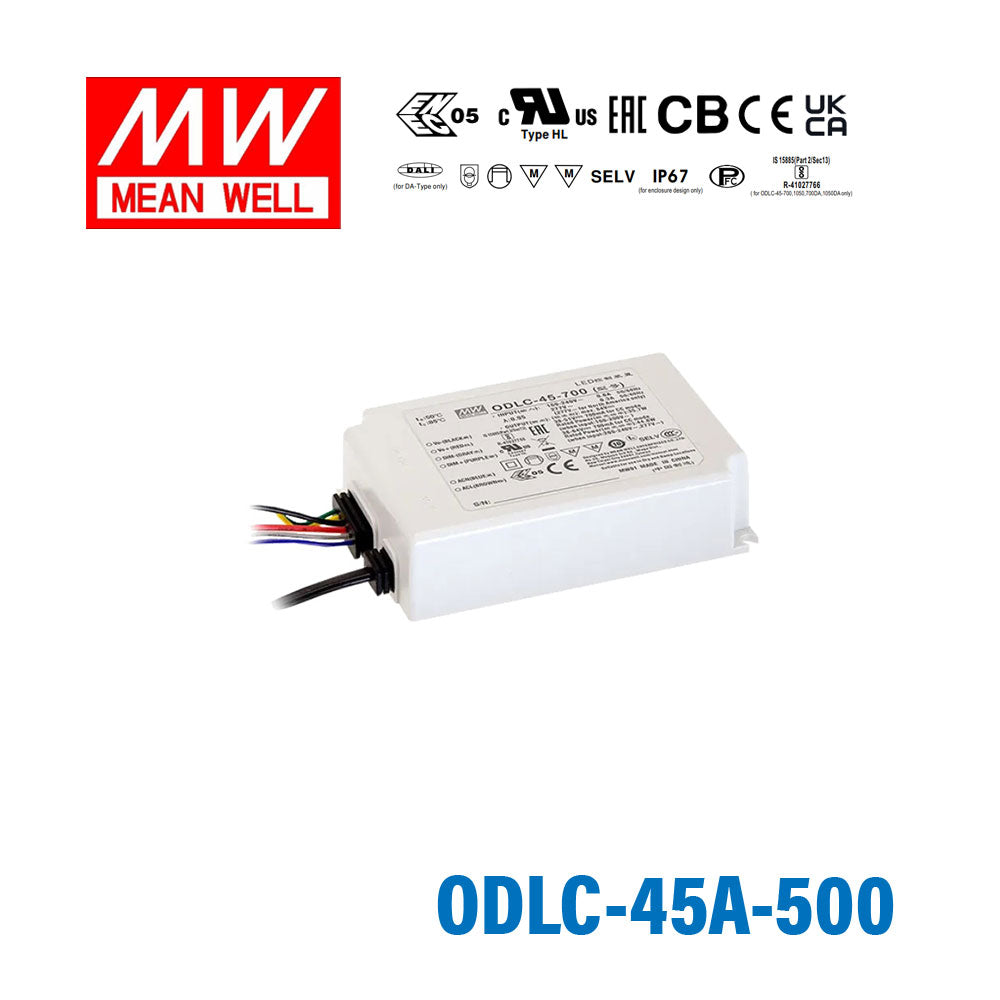

Mean Well ODLC-45A-500 Power Supply 45W 500mA (Auxiliary DC output)

Name: Mean Well ODLC-45A-500 Power Supply 45W 500mA (Auxiliary DC output)
Brand: Mean Well
SKU: ODLC-45A-500
Price: 24.63 USD
Availability: InStock

$24.63 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

ODLC-45A-500 is the model of this series: rated current 500mA, rated power 45W, typical efficiency 85%.

ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design.ODLC-45 operates from 90~295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type), Standby power consumption<0.5W(DA-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

ODLC-45A-500Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER: 45W
CONSTANT CURRENT REGION^Note.2: 54 ~ 90V
OPEN CIRCUIT VOLTAGE(max.): 115V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC 1200ms/115VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for ODLC-45A only

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 85%
AC CURRENT: 0.6A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD/STANDBY POWER CONSUMPTION: No load power consumption<0.5W for Blank-Type,<1.2W for ODLC-45A Standby power consumption<0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 NO.250.13-12;ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384; BIS IS15885( for ODLC-45-700,1050,700DA,1050DA only), EAC TP TC 004,IP67 approved
DALI STANDARDS: Compliance to IEC62386-101, 102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 3513.4K hrs min. Telcordia SR-332 (Bellcore) ;340.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 111*77*28.5mm(L*W*H)
PACKING: 0.42Kg; 24pcs/ 11Kg/ 0.72CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ODLC-45A-500 Block Diagram — Block Diagram

ODLC-45A-500 DIMMING OPERATION — DIMMING OPERATION

ODLC-45A-500 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

ODLC-45A-500 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ODLC-45A-500 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ODLC-45A-500 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates7

Mean Well ODLC-45-EMC Certificate PDF Download

Mean Well IDLV-ODLV-IDLC-ODLC-45(DA)-BIS Certificate PDF Download

Mean Well IDLC-ODLC-45-65-ENEC Certificate PDF Download

Mean Well IDLC-ODLC-45-65(A)-CB Certificate PDF Download

Mean Well IDLC-ODLC-45-65-CE-dec Certificate PDF Download

Mean Well IDLC-ODLC-45-65-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well ODLC-45-500 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ODLC-45A-500 for a 500mA LED downlight system?

Yes, if the downlight uses a constant current LED load rated at 500mA. The LED forward voltage must stay within the 54-90V constant current range, and the total load must remain within 45W.

Is the ODLC-45A-500 a good fit for a small LED array with a higher forward-voltage string?

It is intended for constant current LED arrays that run at 500mA and need a relatively high output voltage range. With 54-90V available and a 45W rating, it fits longer-series LED arrays better than lower-voltage 45A models.

Can this model be used with signage light engines?

Yes, but only when the signage light engine is a constant current type rated for 500mA. It should not be treated like a constant voltage supply, because this model regulates current and operates over a 54-90V constant current range.

How do I size LED loads for the ODLC-45A-500?

The driver provides 500mA constant current with a 54-90V output range, so the LED load has to be selected by total forward voltage, not by a preset LED quantity. The number of LEDs depends on each LED forward voltage, and the load must stay within 45W.

What are the main differences between the ODLC-45A-500 and the other ODLC-45A versions?

The ODLC-45A-500 is rated for 500mA, 54-90V, and 45W. In the same ODLC-45A family, the other models are 350mA at 57-95V and 33.25W, 700mA at 38-64V and 44.8W, 1050mA at 26-43V and 45.15W, and 1400mA at 19-32V and 44.8W.
