Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

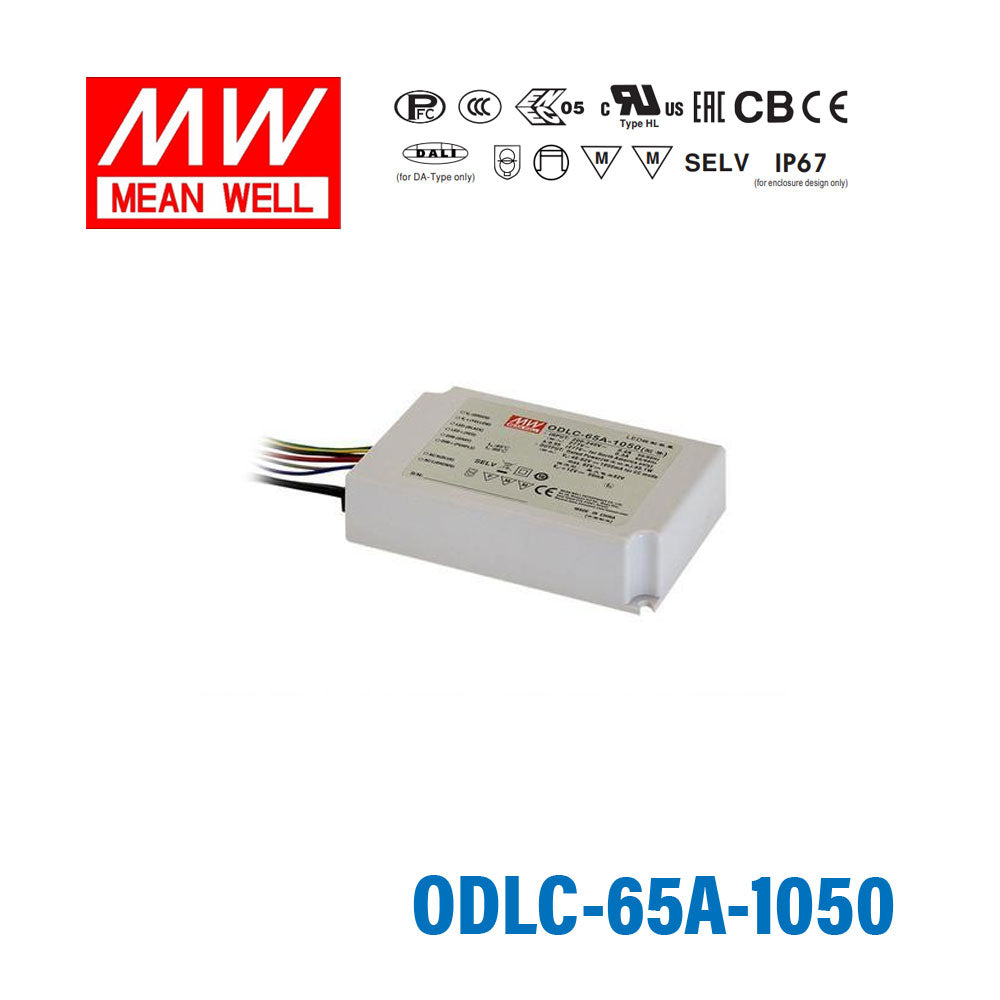

Mean Well ODLC-65A-1050 Power Supply 65W 1050mA (Auxiliary DC output)
$27.07 USD
$115.00
Unit price /
Unavailable
Description
Description
The ODLC-65A is a 65.1W Mean Well AC-DC constant current LED driver (input: 180~295VAC, output: 62V, operating temperature: -20~+85°C).
Key Features
- ✓ Input voltage: 180~295VAC
- ✓ Output voltage (max): 62V
- ✓ Rated output current: 1050mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -20~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 3 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating65.1 Watt
-
Output Voltage62 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
