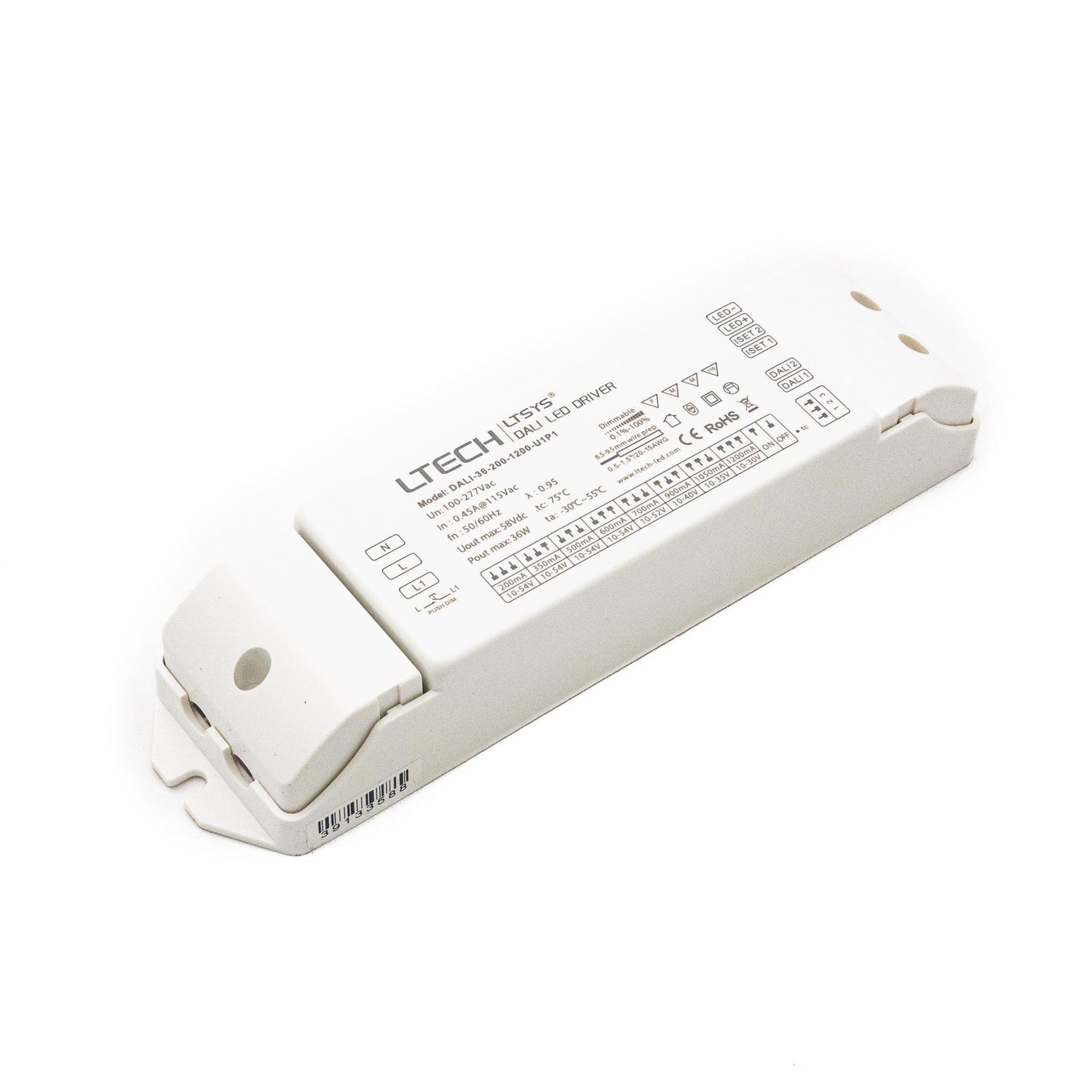

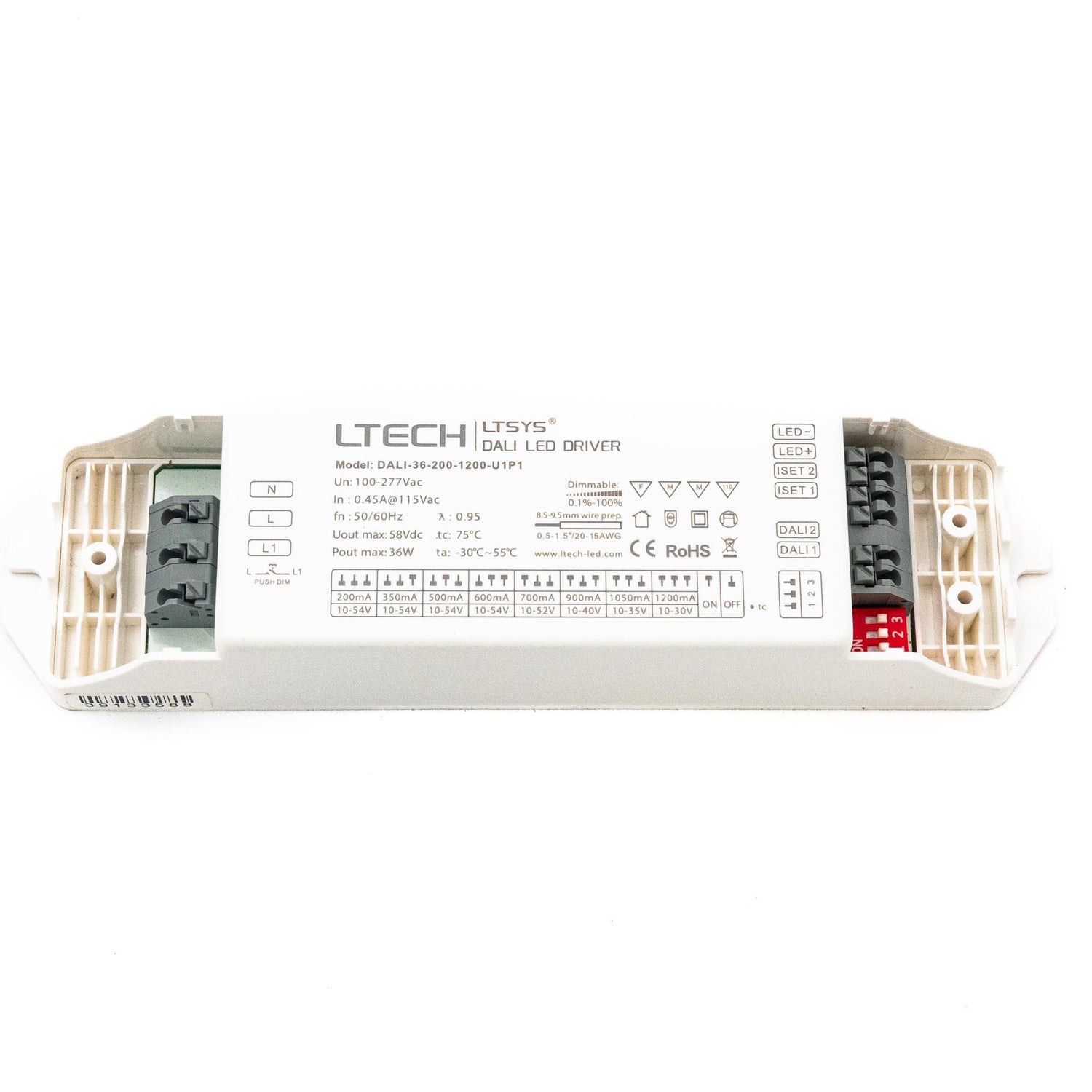

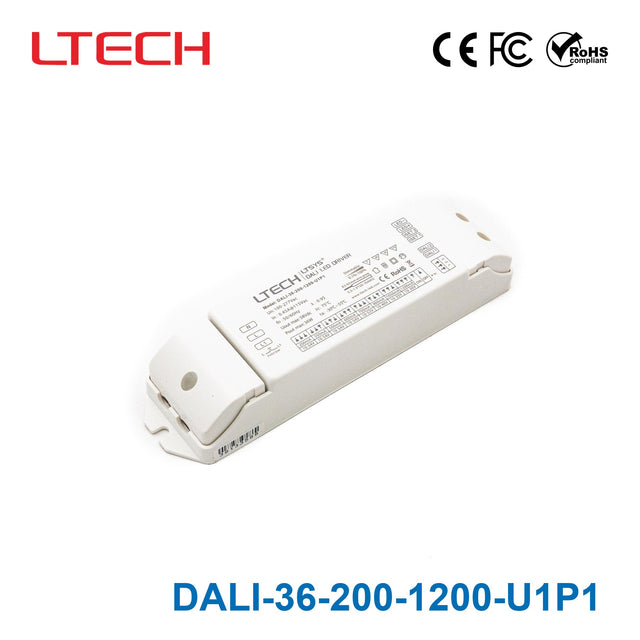

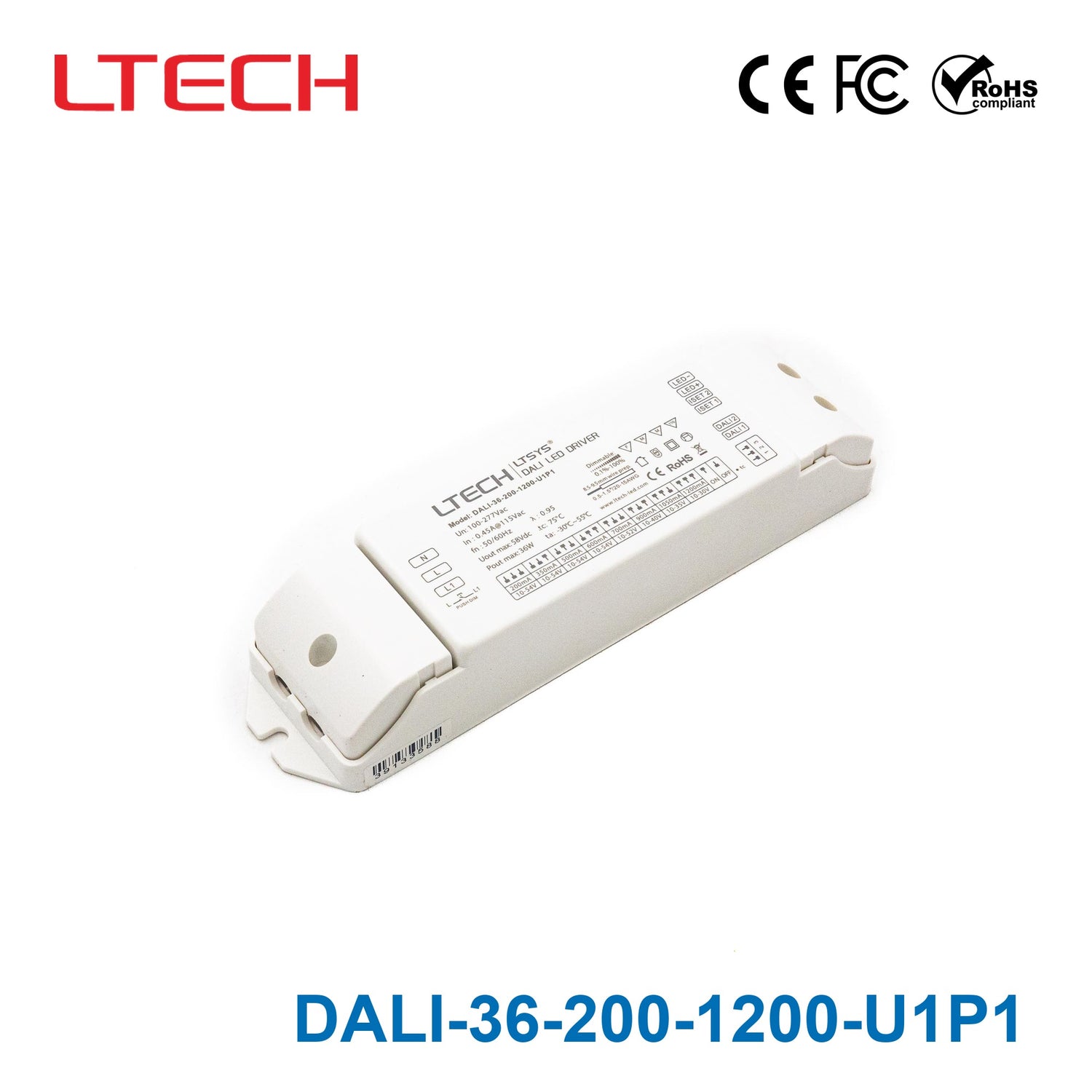

LTECH DALI-36-200-1200-U1P1 36W 200mA ~ 1200mA CC Dali LED Driver - Selectable Output

Name: LTECH DALI-36-200-1200-U1P1 36W 200mA ~ 1200mA CC Dali LED Driver - Selectable Output
Brand: Ltech
SKU: DALI-36-200-1200-U1P1
Price: 54.78 USD
Availability: InStock

$54.78 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Dimming interface: DALI, Push DIM
T-PWM digital dimming
Dimming range: 0~100%, LED start at 0.01% possible.
0-100% flicker-free (IEEE 1789 standard).
Innovative thermal management technology, intelligent power life protection.
DALI dimming curve can be either linear or logarithmic.
Multi-current & wide voltage, suitable for different power LED.
Non-load output voltage 0V to prevent damages to LED caused by poor contact
Short circuit / Over-heat / Over load / Non-load protection, recover automatically
DALI bus standard: IEC62386-101, 102, 207
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
5 years warranty (Rubycon capacitor).

General Specification

Input Voltage

100-277Vac ±10%, (Max. 90-305Vac)

Inrush Current

Cold start 20A at 230Vac (twidth=75μs measured at 50% Ipeak)

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.

Over Load Protection

Shut down the output when current load≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers

Non-load Protection:

Shut down the output if no load, auto recovers

Withstanding Voltage

I/P-O/P: 3750Vac

Insulation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Operating Temperature

ta: -30°C ~ 55°C tc: 75°C

Safety standards

IEC/EN61347-1, IEC/EN61347-2-13

Dimension (LxWxH)

175×44×30 mm

Specifications

Brand

Ltech
Series

Ltech DALI Series
Power Rating

36 Watt
Output Voltage

58 Volt
Rated Current

1.2 Ampere
Input Voltage

90V~305V
Standards Met

CE,FC,ROHS,SELV
Operation Mode

Constant Current
Operating Temperature

-30°C~55°C
Warranty

5 Year
Length

6.89 in
Width

1.18 in
Height

1.73 in
Weight

0.39 lb
