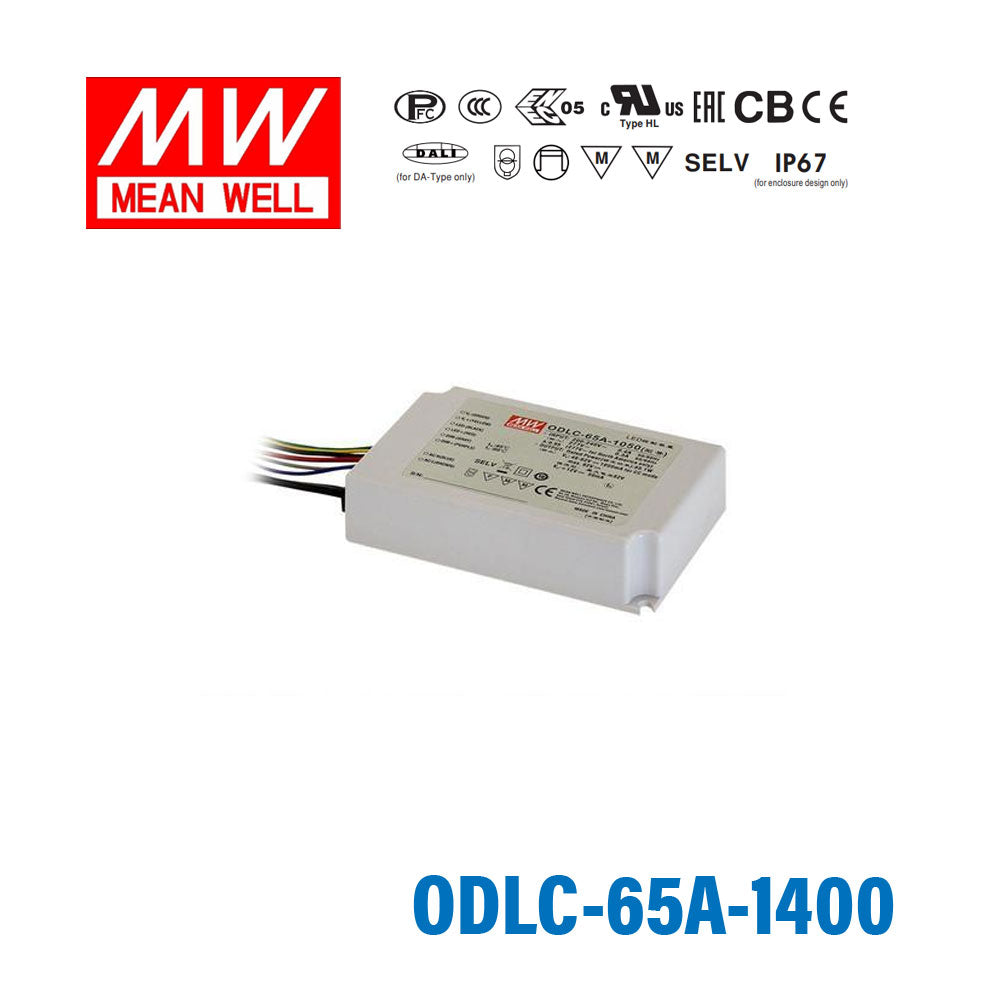

Mean Well ODLC-65A-1400 Power Supply 65W 1400mA (Auxiliary DC output)
$27.07 USD
$91.50
Unit price /
Unavailable
Description
Description
The ODLC-65A is a 65W Mean Well power converter (input range: 180~295VAC, operating temperature: -20~+85℃).
Key Features
- ✓ Input voltage range: 180~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+85℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14; EAC TP TC 004, IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating64.4 Watt
-
Output Voltage46 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
