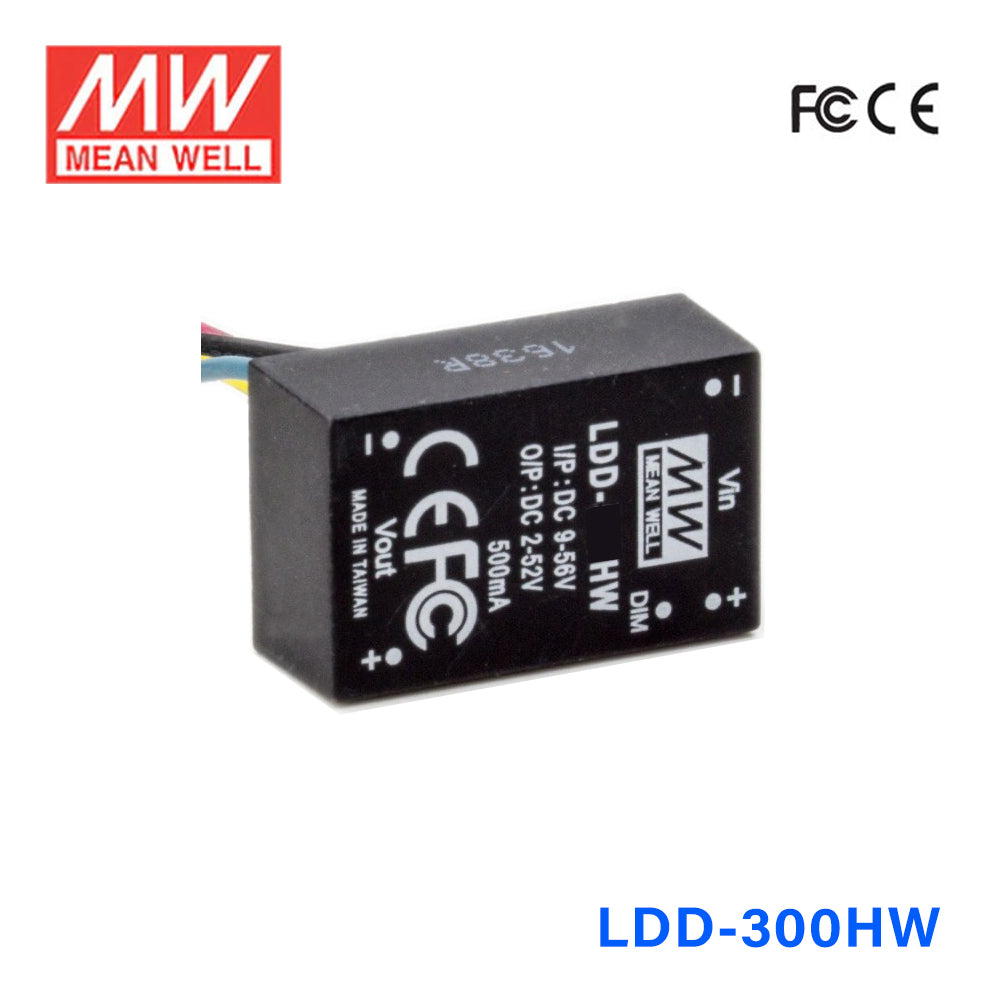

Mean Well LDD-300HW DC/DC LED Driver CC 300mA - Step-down

constant currentstep downhigh efficiency up to 97%IP67wire style
SKU LDD-300HW
$8.73 USD
Shipping calculated at checkout.
Available to order
|

Overview

LDD-300HW is the model of this series: typical efficiency 97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS. Type W: wire style.

Features

  • DC/DC step-down converter
  • Constant current output: 300mA to 1500mA
  • Wide input voltage: 9 ~ 56VDC
  • Wide output LED string voltage: 2 ~ 52VDC
  • High efficiency up to 97%
  • Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors
  • Built-in PWM and remote ON/OFF control
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully encapsulated with IP67 level for pin and wire style
  • Non-potted, optional conformal coating for SMD style (Order No.: LDD- 350-1000 HSC)
  • Compact size
  • Low cost, high reliability
  • Suitable for driving illumination LED
  • 3 years warranty

Specifications

LDD-300HWSpecifications from the official datasheet (2022-05-24 edition)

OUTPUT

CURRENT RANGE
300mA
VOLTAGE RANGENote.4
2 ~ 52VDC
CURRENT ACCURACY (Typ.)
±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS
RIPPLE & NOISE(max.)Note.2
150mVp-p
SWITCHING FREQENCY
40KHz ~ 1000KHz
EXTERNAL CAPACITANCE LOAD (max.)
2.2uF

INPUT

VOLTAGE RANGE
9 ~ 56VDC
EFFICIENCY (max.)
97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS
DC CURRENT Full loadNote.3
270mA
DC CURRENT No load
5mA
FILTER
Capacitor

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF
Leave open if not use
REMOTE ON/OFF
Power ON with dimming: DIM ~ -Vin >2.5 ~ 6VDC or open circuit
REMOTE ON/OFF
Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY
100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.)
1mA at PWM dimming OFF and 24VDC input

PROTECTION

SHORT CIRCUIT
Regulated at rated output current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE
Tj 150℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ + 85℃(Refer to derating curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing for LDD-H/HW ; 20%~85% RH non-condensing for LDD-HS
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.)
100℃

EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
EMC EMISSION
Compliance to BS EN/EN55015, FCC part 15 class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
1000Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H) for LDD-H/HW ; 31.8*20.3*11.4mm or 1.25"*0.8"*0.45" inch (L*W*H) for LDD-HS
WEIGHT
LDD-H:15.6g ; LDD-HW:18g ; LDD-HS:12.8g
POTTING MATERIAL
Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS

MODEL ENCODING

Blank
Blank : pin style
W (this model)
wire style
S
SMD style
Test conditions and notes5
  1. 1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf capacitor.
  3. 3.Test condition: 48VDC input.
  4. 4.Output voltage will always step down by 3 volts from input DC voltage.
  5. 5.The output of LDD-H should not be connected to the input of the same unit or output from other sources.

Technical drawings

LDD-300HW Mechanical Specification
Mechanical Specification
LDD-300HW L D D - H series
L D D - H series
LDD-300HW Recommended PCB layout (for LDD-300~1000HS)
Recommended PCB layout (for LDD-300~1000HS)
LDD-300HW Reflow Soldering Curve (for LDD-300~1000HS)
Reflow Soldering Curve (for LDD-300~1000HS)
LDD-300HW PWM Dimming Control
PWM Dimming Control
LDD-300HW Efficiency VS Output Voltage(Number
Efficiency VS Output Voltage(Number
LDD-300HW LDD-HS (2)
LDD-HS (2)

Downloads

FAQ

Can I use the LDD-300HW for low-current LED downlights?

Yes, if the downlight requires a constant current driver at 300mA and the LED load stays within the 2-52V CC range. As the lowest-current model of the LDD-H series, it is aimed at lower-current constant current fixtures. It is not a replacement for a constant voltage LED driver.

Is the LDD-300HW suitable for long-series small LED arrays?

It can be, because the constant current range extends up to 52V while maintaining a 300mA output. That wide CC range makes it useful for low-current arrays with a higher total forward voltage, as long as the input is about 3V above the string voltage. The exact number of LEDs depends on the forward voltage of each LED.

Can this driver work for signage modules that need low current but higher LED string voltage?

Yes, when the signage module assembly is designed for 300mA constant current and the total LED load remains between 2V and 52V. Its fully encapsulated IP67 construction supports harsher environments. It should only be used with constant current modules, not constant voltage signage systems.

How do I determine compatibility for the LDD-300HW?

Your LED load must be specified for 300mA constant current, with a total forward-voltage requirement inside the 2-52V CC range. The number of LEDs depends on each LED's forward voltage, so this driver cannot be matched by LED count alone. Because it is a step-down design, the input source must also stay within the listed 9-56VDC range.

How does the LDD-300HW compare with other 300mA LDD models?

At 300mA, the LDD-300H, LDD-300HS, and LDD-300HW all use a 2-52V constant current range. The H (pin) and HW (wire) are epoxy-encapsulated to IP67 with up to 97% efficiency, while the HS is a non-potted SMD version with up to 96%. The key difference is the package style, with the HW version using wire leads.

Is the LDD-300HW appropriate for outdoor or wide-temperature use?

Yes, it is fully encapsulated to IP67 and operates from -40°C to +85°C (refer to the derating curve). Those specs make it suitable for demanding environmental conditions when the rest of the assembly is built to the same standard. The compact 31.8 × 20.3 × 12.2 mm body can also help in sealed fixtures.
