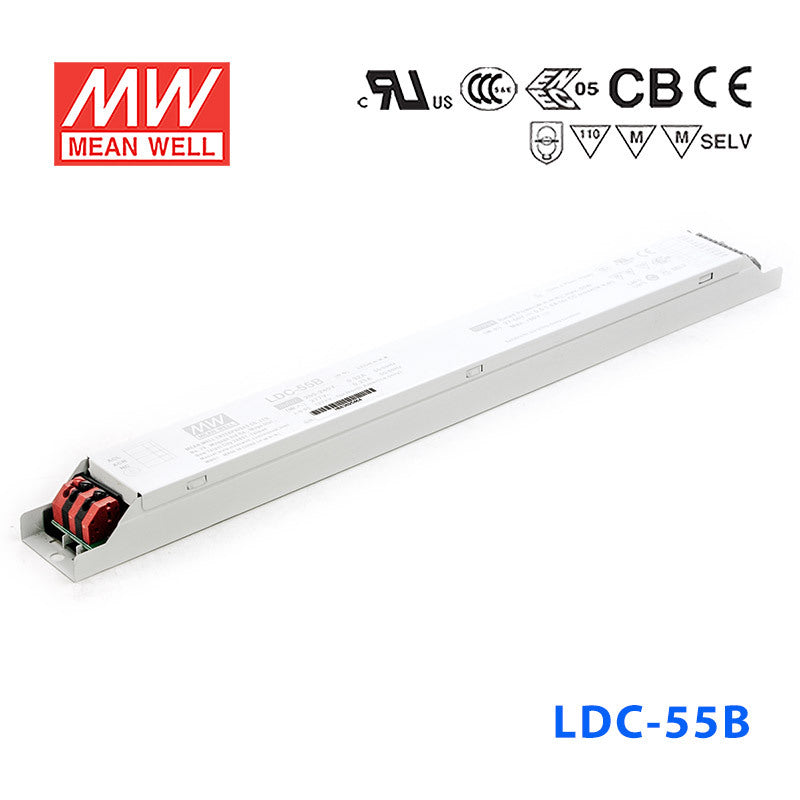

Mean Well LDC-55DA Linear LED Driver 55W 500~1600mA Adjustable Outp...
Overview
LDC-55DA is the model of this series: rated power 55W, typical efficiency 90%(230VAC@Full load).
LDC-55 series is a 55W AC/DC LED driver featuring the Constant Power mode output. LDC-55 operates from 180~295VAC and output current can be adjust between 500mA to 1600mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate -25℃~+80℃ case temperature under free air convection.LDC-55 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Power mode output
- Metal housing design
- Full Power at 70~100% max Current
- Built-in active PFC function
- Flicker Free design
- Class 2 power supply
- No load / Standby power consumption <0.5W
- Output current level pre-settable
- Function options: 3 in 1 dimming (dim-to-off); DALI interface, push dimming
- Typical lifetime>50000 hours
- SELV and Isolated
- 5 years warranty
Specifications
OUTPUT
- OUTPUT CURRENT REGION
- 500 ~ 1600mA(1050mA default)
- RATED POWERNote.2
- 55W
- CONSTANT CURRENT REGIONNote.2
- 27 ~ 56V
- FULL POWER CURRENT RANGE
- 980 ~ 1600mA
- OPEN CIRCUIT VOLTAGE(max.)
- 60V
- LOW FREQUENCY CURRENT RIPPLE
- 3.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.95/230VAC@load≧50%; PF≧0.9/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)Note.6
- 90%(230VAC@Full load)
- AC CURRENT (Typ.)
- 0.35A / 230VAC 0.25A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 30A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
- OVER VOLTAGE
- 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, with auto-recovery
FUNCTION
- DIMMING
- Please refer to“DIMMING OPERATION”section
- TEMP. COMPENSATION
- By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section
ENVIRONMENT
- WORKING TEMP.
- Tcase=-25 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.5
- Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
- DALI STANDARDS
- Compliance to IEC62386-101.102.207 for DA-Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.5
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV),EAC TP TC 020
OTHERS
- MTBF
- 2521K hrs min. Telcordia SR-332 (Bellcore) 226.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 320*30*21mm (L*W*H)
- PACKING
- 0.255Kg;48pcs/13.24Kg/0.92CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to " OUTPUT CURRENT SETTING ".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. The DA type power supply is less efficient than the typical efficiency in specification by 2%.
- 7. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
Technical drawings
Typical applications
- LED panel lighting
- Indoor LED lighting
- Linear LED lighting
Downloads
Certificates10
Test reports1
Catalogues1
FAQ
Can I use the LDC-55DA to drive LED downlights that need a constant current driver?
Yes, if the downlight is designed for constant current operation and its LED load falls within the 27-56V constant current output range. This model is a 55W constant power mode driver with an output current adjustable from 500 to 1600mA (1050mA default), so it is intended for LED engines that require current regulation rather than constant voltage.
Is the LDC-55DA suitable for slim linear fixtures or narrow LED light boxes?
It can be a good fit where a constant current LED array is used and the load stays within 27-56V at up to 55W. Its 320.0 × 30.0 × 21.0 mm housing and 30mm width make it suited to narrow fixture spaces where a linear driver format is preferred.
Can this driver power signage modules or small LED arrays?
It can power signage modules or small LED arrays only when they are constant current assemblies that operate within the 27-56V CC range. It is not a constant voltage driver, so it should not be used as a substitute for 12V or 24V constant voltage signage power supplies.
How do I know if my LED load is compatible with the LDC-55DA?
Match the LED module's required current to the 500-1600mA setting range (1050mA default, set by a resistor on IADJ) and its total forward voltage to the 27-56V range. The number of LEDs depends on the forward voltage of each LED in the array, so compatibility should be checked by total forward voltage rather than by a fixed LED count.
How does the LDC-55DA compare with other Mean Well LDC series linear drivers?
Within the LDC-55 series, the LDC-55, LDC-55B and LDC-55DA share the same 55W rating, 500-1600mA adjustable output and 27-56V constant current range. The LDC-55DA adds a DALI interface (IEC62386-101, 102, 207) with push dimming, the LDC-55B offers 3-in-1 dimming (0-10VDC, 10V PWM or resistance), the standard LDC-55 has no dimming input, and the DA type is about 2% less efficient than the typical 90%.
