Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

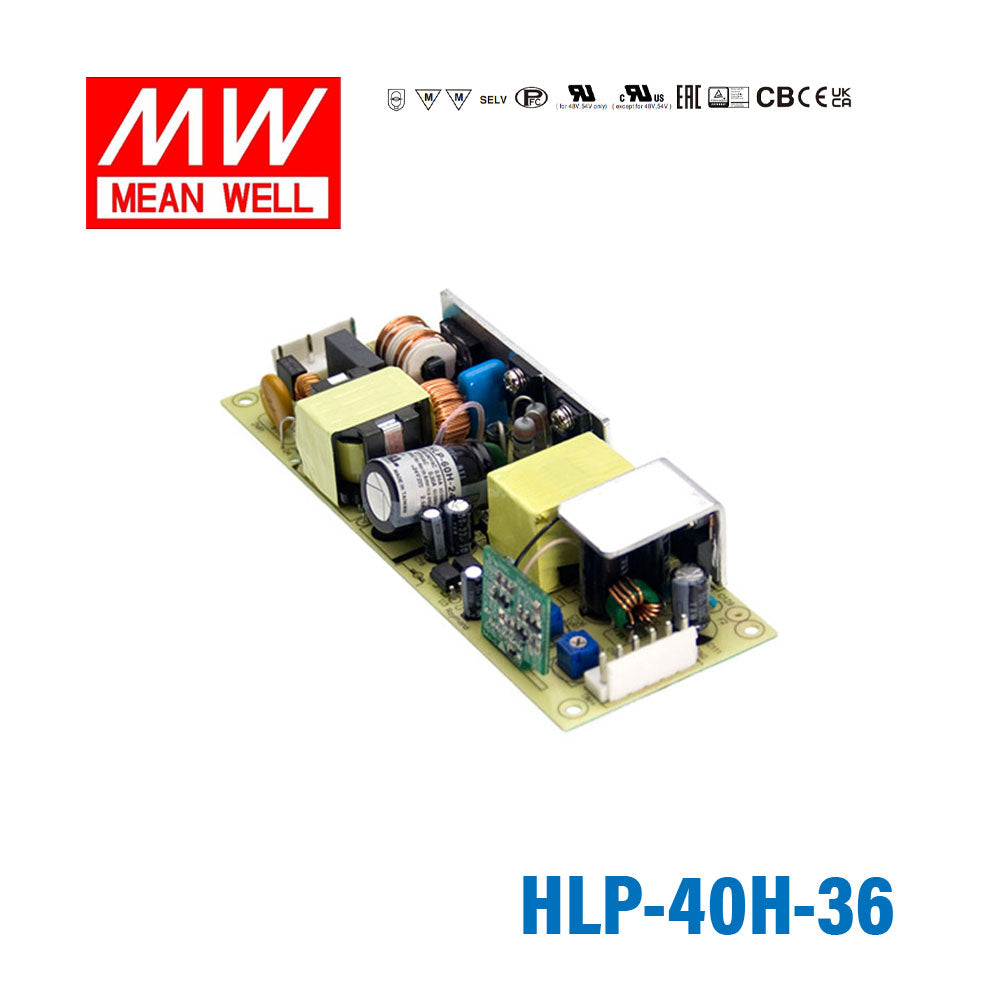

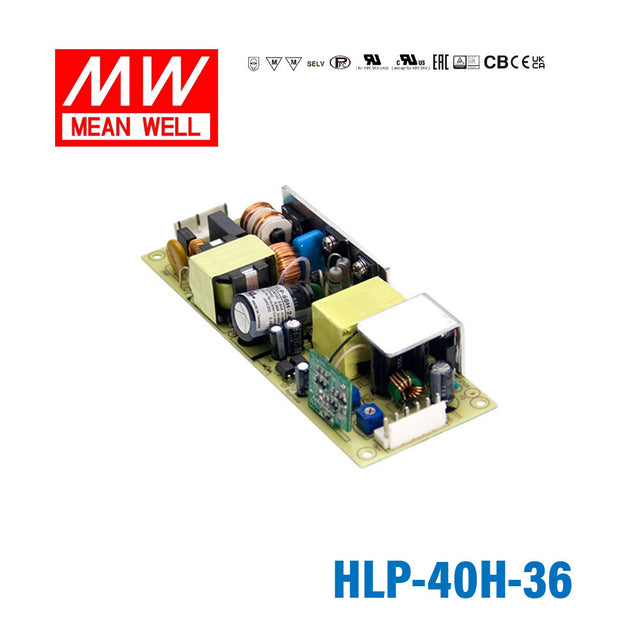

Mean Well HLP-40H-36 AC-DC Single output LED driver 40W
$56.03 USD
Unit price /
Unavailable
Description
Description
Protection type : Shut down o/p voltage, re-power on to recover
UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active function
- ✓Protection: Short circuit / Over current / Over Voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built-in LED lighting systems
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating40.3 Watt
-
Output Voltage36 Volt
-
Rated Current1.12 Ampere
-
Input Voltage127V~431V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.79 in
-
Width2.09 in
-
Height1.06 in
-
Weight0.44 lb
