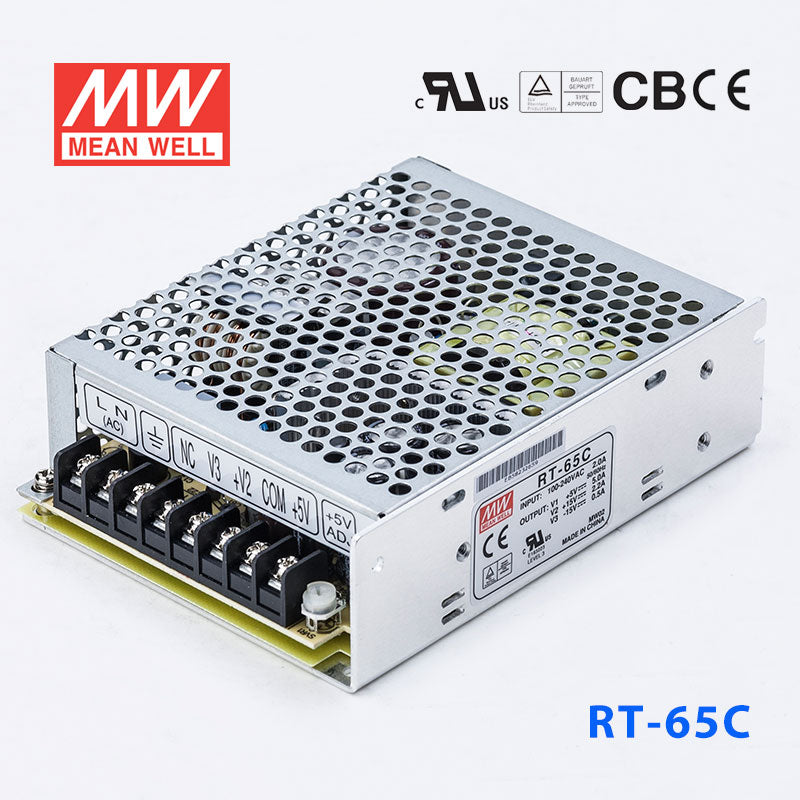

Mean Well RT-65C Power Supply 65W 5V 15V -15V 5A
Overview
RT-65C is the 5V 15V -15V output model of this series: rated current 5A 2.2A 0.5A, rated power 65.5W, typical efficiency 77%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3
- DC VOLTAGE
- 5V 15V -15V
- RATED CURRENT
- 5A 2.2A 0.5A
- CURRENT RANGENote.6
- 0 ~ 8A 0 ~ 3A 0 ~ 1A
- RATED POWERNote.6
- 65.5W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p 120mVp-p 80mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0% +8,-4% ±5.0%
- LINE REGULATIONNote.4
- ±0.5% ±1.5% ±0.5%
- LOAD REGULATIONNote.5
- ±1.0% ±3.0% ±1.0%
- SETUP, RISE TIME
- 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 60ms/230VAC 14ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 77%
- AC CURRENT (Typ.)
- 2A/115VAC 1.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

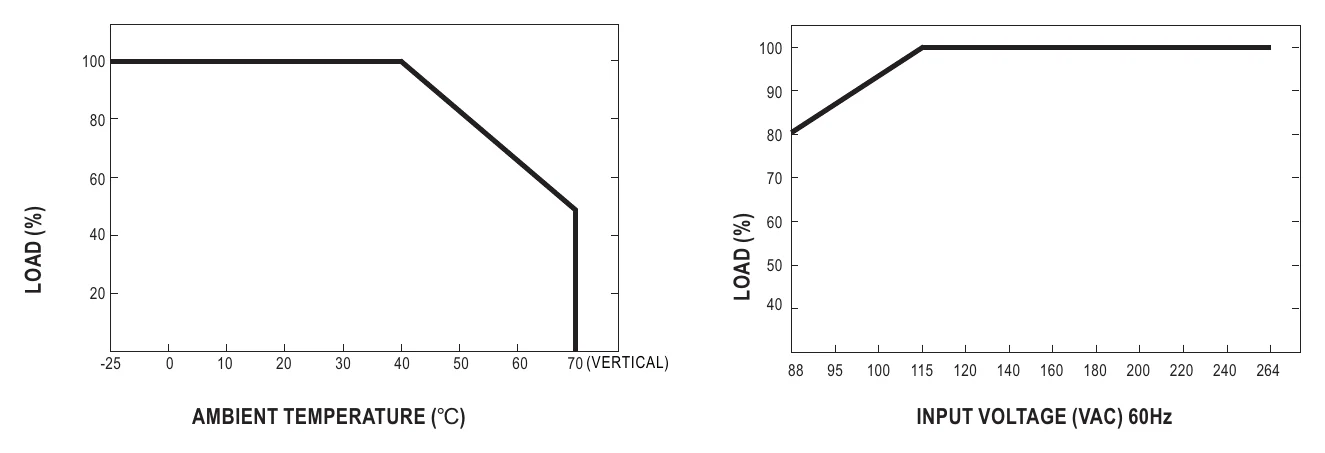

- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)on +5V output
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 7)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, BIS IS 13252(Part 1):2010/IEC 60950-1:2005, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2720.8K hrs min. Telcordia SR-332 (Bellcore) ;507.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 129*98*38mm (L*W*H)
- PACKING
- 0.44Kg; 30pcs/13.2Kg/0.72CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
- 6. Each output can work within current range. But total output power can't exceed rated output power.
- 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

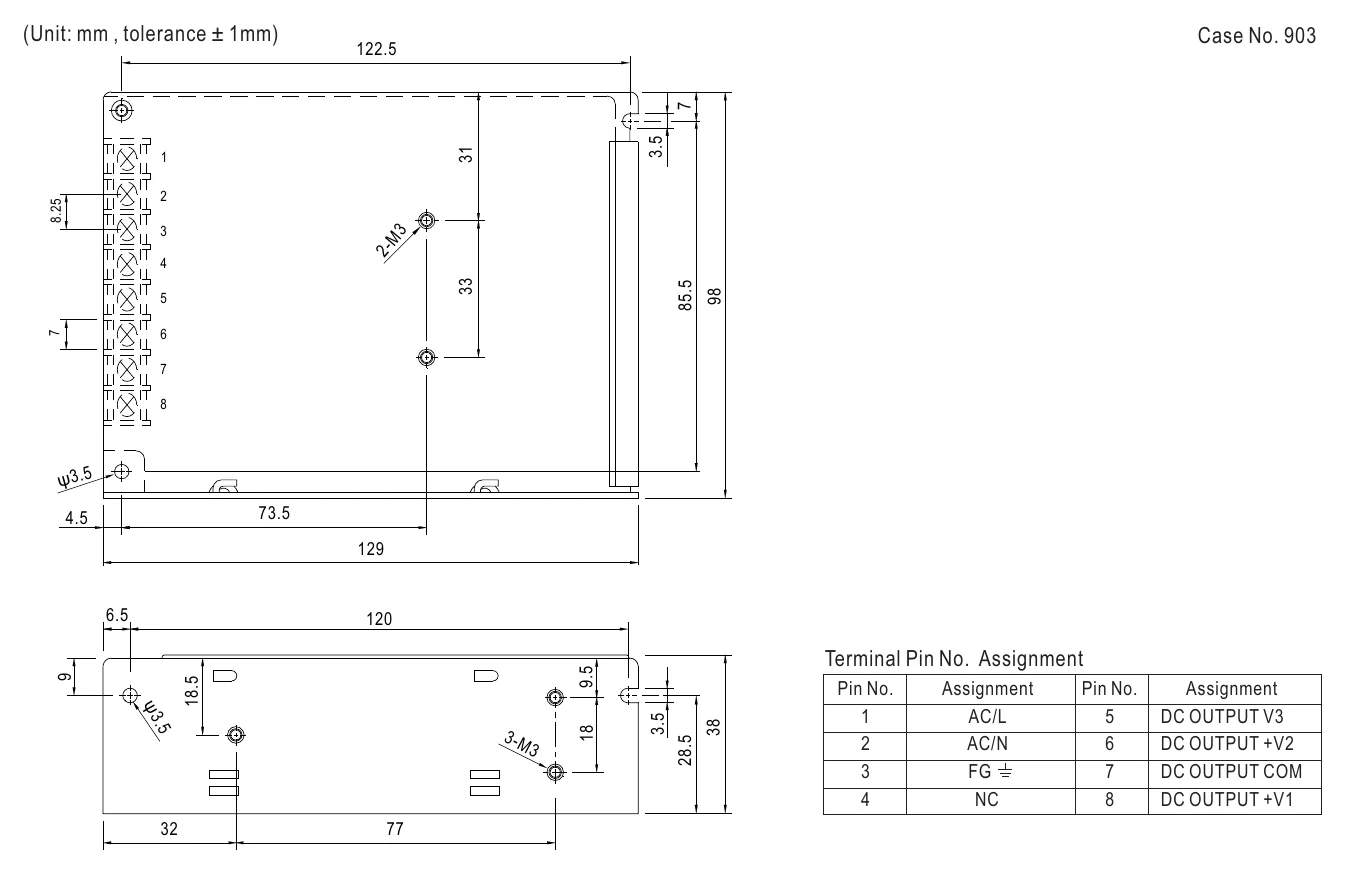

Technical drawings
Downloads
Certificates8
Test reports1
Catalogues1
FAQ
Can I use the RT-65C for industrial electronics that need 5V logic and plus/minus 15V analog rails?
Yes. The RT-65C is a triple-output constant-voltage power supply with 5V, 15V, and -15V outputs and 65.5W total power. That makes it appropriate for industrial or embedded equipment that combines a 5V digital rail with plus/minus 15V analog circuitry.
Is the RT-65C a good choice for instrumentation or signal-processing assemblies with bipolar analog sections?
It is suited to lower-power instrumentation that needs both 5V logic and plus/minus 15V rails from one supply. The 5V output is rated at 5A, and the total power is 65.5W, so it fits compact mixed-signal assemblies rather than higher-power systems.
Can the RT-65C power embedded control hardware that mixes digital control and 15V analog stages?
Yes, if the design requires constant-voltage outputs at 5V, 15V, and -15V. Its triple-output format is useful when one device needs digital control power and bipolar analog rails without adding multiple separate power supplies.
Is the RT-65C suitable where panel space is limited?
The housing measures 129.0 × 98.0 × 38.0 mm. That can make it easier to use in compact control cabinets or embedded equipment where three output rails are needed in a small footprint.
Can the RT-65C handle elevated temperatures in indoor equipment enclosures?
The specified operating range is -25°C to +70°C, and the features list 70°C operation plus 5G vibration resistance. Those ratings support indoor industrial use where ambient heat and machine vibration are part of the operating conditions.
How does the RT-65C compare with similar RT series models?
In the listed family, RT-50A is 46.5W at 5V 4A, RT-50B is 50W at 5V 4A, RT-50C is 50W at 5V 4A, RT-50D is 51W at 5V 3A, RT-65A is 66.1W at 5V 6A, RT-65B is 64.6W at 5V 5A, RT-65C is 65.5W at 5V 5A, RT-65D is 68W at 5V 4A, RT-125A is 131W at 5V 12A, RT-125B is 132W at 5V 12A, RT-125C is 132.5W at 5V 10A, and RT-125D is 136W at 5V 8A. The RT-85A, RT-85B, RT-85C, RT-85D, RT-125NA, RT-125NB, and RT-125ND appear in the sibling list without detailed wattage or current data here.
