Mean Well

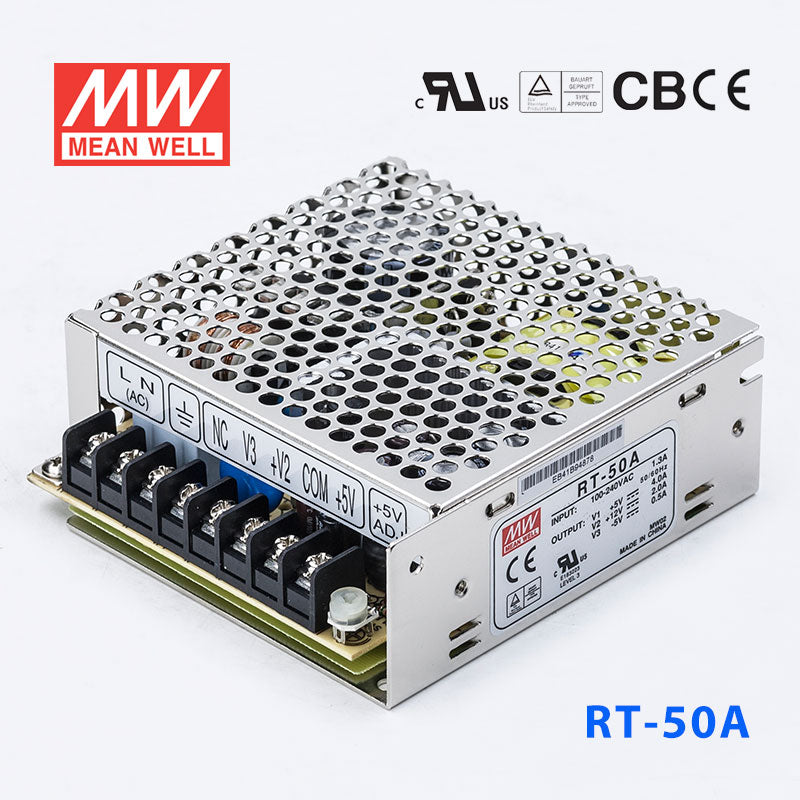

Mean Well RT-50A Power Supply 50W 5V 12V -5V 4A

miniature sizeeconomicalwithstand 5G vibration and 70°C operationtriple output
SKU RT-50A
$23.60 USD
Shipping calculated at checkout.
Available to order
|

Overview

RT-50A is the 5V 12V -5V output model of this series: rated current 4A 2A 0.5A, rated power 46.5W, typical efficiency 75.5%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RT-50ASpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 CH2 CH3
DC VOLTAGE
5V 12V -5V
RATED CURRENT
4A 2A 0.5A
CURRENT RANGENote.3
0 ~ 5A 0 ~ 2.5A 0 ~ 1A
RATED POWER
46.5W
RIPPLE & NOISE (max.)Note.2
80mVp-p 120mVp-p 100mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0% ±8.0% ±3.0%
LINE REGULATIONNote.4
±0.5% ±1.5% ±0.5%
LOAD REGULATIONNote.5
±1.0% ±3.0% ±1.0%
SETUP, RISE TIME
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
75.5%
AC CURRENT (Typ.)
1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.)
COLD START 48A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)on +5V output
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
2788.1K hrs min. Telcordia SR-332 (Bellcore) ; 504.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*97*36mm (L*W*H)
PACKING
0.41Kg; 45pcs/19.5Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RT-50A Mechanical Specification
Mechanical Specification
RT-50A Block Diagram
Block Diagram
RT-50A Derating Curve
Derating Curve

Downloads

FAQ

Can the RT-50A be used in a small industrial control panel that needs multiple DC rails?

Yes. The RT-50A is a triple output constant voltage power supply with 46.5W total power, 5V output listed at 4A, and additional 12V and -5V rails in the model spec. Its 99.0 × 97.0 × 36.0 mm size also suits compact control enclosures where space is limited.

Is the RT-50A a fit for legacy logic or embedded equipment that still uses a negative rail?

It can be a good fit when the equipment needs the specific RT-50A output set of 5V, 12V, and -5V from one supply. The unit is constant voltage, rated for 46.5W total, and provides 5V at 4A on its main listed output. That combination is relevant for older control, embedded, and interface boards that require more than one DC rail.

Can I use the RT-50A for bench testing PLC I/O or automation boards?

It is suitable for low-power bench or cabinet-side testing where the load fits within 46.5W total and the 5V rail stays within 4A. The wide 88-264VAC input is useful if the same supply may be used on different AC mains. Because it is a triple output model, it can support test scenarios that need 5V together with 12V and -5V rails.

Is the RT-50A suitable for harsh factory conditions or outdoor use?

The operating temperature range is -25°C to +70°C, and the features list says it withstands 5G vibration and 70°C operation, which supports use in demanding indoor industrial environments. However, no IP rating is provided in the listed specs. Without an IP rating, outdoor or washdown suitability should not be assumed from this data alone.

How does the RT-50A compare with other RT series models?

The RT-50A is a 50W-class triple output model with 46.5W total power and 5V at 4A. Other models in the RT-50 series include the RT-50B (50W, 5V/12V/-12V), RT-50C (50W, 5V/15V/-15V), and RT-50D (51W, 5V/24V/12V). Higher power options like the RT-65 and RT-125 series are also available in the RT family, offering different voltage combinations and higher current ratings.
