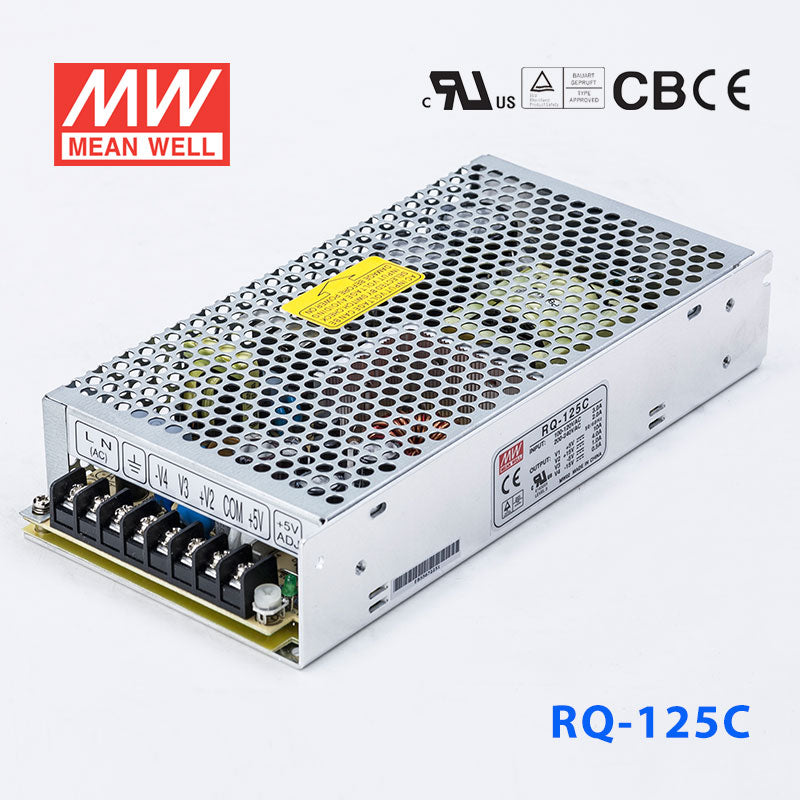

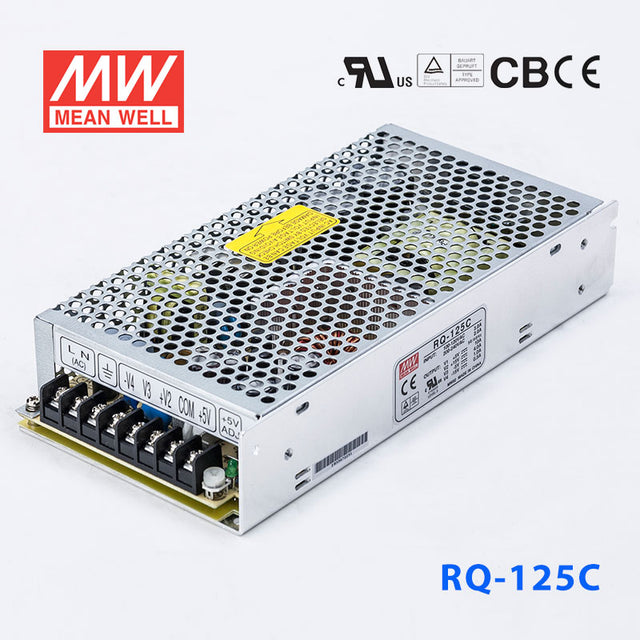

Mean Well RQ-125C Power Supply 125W 5V 15V -5V-15V 10A
Overview
RQ-125C is the CH1: 5V, CH2: 15V, CH3: -5V, CH4: -15V output model of this series: rated current CH1: 10A, CH2: 4A, CH3: 1A, CH4: 0.5A, rated power 122.5W, typical efficiency 78%.
Features
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1, CH2, CH3, CH4
- DC VOLTAGE
- CH1: 5V, CH2: 15V, CH3: -5V, CH4: -15V
- RATED CURRENT
- CH1: 10A, CH2: 4A, CH3: 1A, CH4: 0.5A
- CURRENT RANGENote.3
- CH1: 0 ~ 12A, CH2: 0 ~ 4A, CH3: 0 ~ 1A, CH4: 0 ~ 1A
- RATED POWERNote.6
- 122.5W
- RIPPLE & NOISE (max.)Note.2
- CH1: 80mVp-p, CH2: 120mVp-p, CH3: 80mVp-p, CH4: 80mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- CH1: ±2.0%, CH2: +10,-1%, CH3: +6,-10%, CH4: ±5.0%
- LINE REGULATIONNote.4
- CH1: ±0.5%, CH2: ±1.0%, CH3: ±1.0%, CH4: ±1.0%
- LOAD REGULATIONNote.5
- CH1: ±1.0%, CH2: ±3.0%, CH3: ±6.0%, CH4: ±2.0%
- SETUP, RISE TIME
- 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 25ms/230VAC 30ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 3A/115VAC 2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)on +5V output
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 7)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note 9),-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2535.9K hrs min. Telcordia SR-332 (Bellcore) ; 377.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*98*38mm (L*W*H)
- PACKING
- 0.7Kg; 20pcs/14Kg/0.85CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation. (In order to meet tolerance, it is recommended that CH1 load > 20% rated current for B, C type and CH1 load > 10% rated current for D type.)
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
- 6. Each output can work within current range. But total output power can't exceed rated output power.
- 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
- 9. Testing harmonic current at 85% load.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RQ-125C for an industrial controller that needs a 5V logic rail plus +/-15V analog rails?
Yes. The RQ-125C is a quad output supply with a 5V main output rated at 10A and a total power rating of 122.5W. That combination fits control and analog systems that need a regulated 5V rail alongside 15V and -15V outputs from one power supply.
Is the RQ-125C suitable for embedded test equipment with both digital and instrumentation sections?
It can be a good fit when the equipment needs 5V for digital circuitry and +/-15V rails for analog stages. The supply provides constant voltage output, up to 10A on the 5V rail, and 122.5W total in a 199.0 x 98.0 x 38.0 mm package. Its compact size is useful where panel space is limited.
Can the RQ-125C power a mixed-signal automation assembly from one AC input?
Yes, if the assembly is built around 5V logic and also requires 15V and -15V rails. The RQ-125C accepts 88-132VAC or 176-264VAC input selected by a switch and combines the outputs in one 0.7 kg unit. That makes it practical for compact automation or measurement enclosures using a selectable AC input range.
Is the RQ-125C appropriate for indoor control cabinets or harsher factory conditions?
The operating temperature range is -25°C to +70°C, and the unit is specified to withstand 5G vibration. That supports use in demanding indoor industrial environments. No IP rating is listed in the provided specs, so the product data does not establish suitability for direct outdoor exposure.
How does the RQ-125C compare with other Mean Well RQ series models?
Within the listed siblings, the RQ-125C is rated at 122.5W with a 5V main output at 10A. Other models are RQ-125B at 120W and 5V 11A, RQ-125D at 124W and 5V 8A, RQ-50B at 45.5W and 5V 5A, RQ-50C at 50W and 5V 5A, RQ-50D at 53.4W and 5V 3A, RQ-65B at 62.5W and 5V 6A, RQ-65C at 65W and 5V 5A, RQ-65D at 68W and 5V 4A, RQ-85B at 80.7W and 5V 7A, RQ-85C at 82.5W and 5V 7A, and RQ-85D at 84W and 5V 6A. RQ-125ND is listed as a sibling, but no specs were provided for it here.
