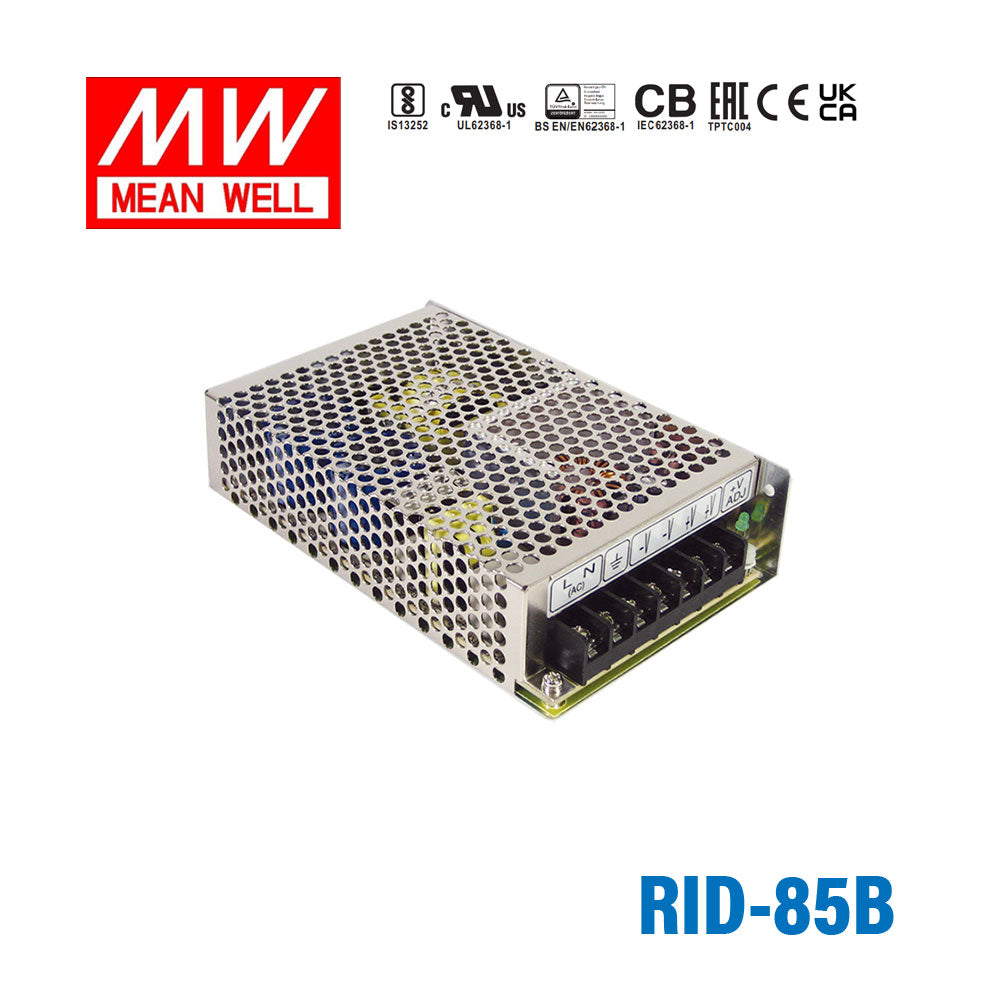

Mean Well RID-85B AC-DC Dual output enclosed power supply 85W 2A

miniature sizeeconomicalwithstand 5G vibration and 70°C operationisolated dual output
SKU RID-85B
$41.96 USD
Shipping calculated at checkout.
In stock
|

Overview

RID-85B is the 5V / 24V output model of this series: rated current 8A / 2A, rated power 88W, typical efficiency 81%.

Features

  • Isolated output & GND for CH1,CH2
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RID-85BSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2
DC VOLTAGE
5V / 24V
RATED CURRENT
8A / 2A
CURRENT RANGENote.3
0 ~ 10A / 0 ~ 2.5A
RATED POWERNote.6
88W
RIPPLE & NOISE (max.)Note.2
80mVp-p / 120mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0% / ±5.0%
LINE REGULATIONNote.4
±0.5% / ±1.0%
LOAD REGULATIONNote.5
±1.0% / ±5.0%
SETUP, RISE TIME
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 18ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
81%
AC CURRENT (Typ.)
2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 50A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)on +5V output
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
2899.1K hrs min. Telcordia SR-332 (Bellcore) ; 540.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
159*97*38mm (L*W*H)
PACKING
0.6Kg; 24pcs/15.4Kg/0.83CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
  3. 3. Tolerance: includes set up tolerance, line regulation and load regulation. (In order to meet tolerance, it is recommended that CH1 load > 20% rated current.)
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
  6. 6. Each output can work within current range. But total output power can't exceed rated output power.
  7. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

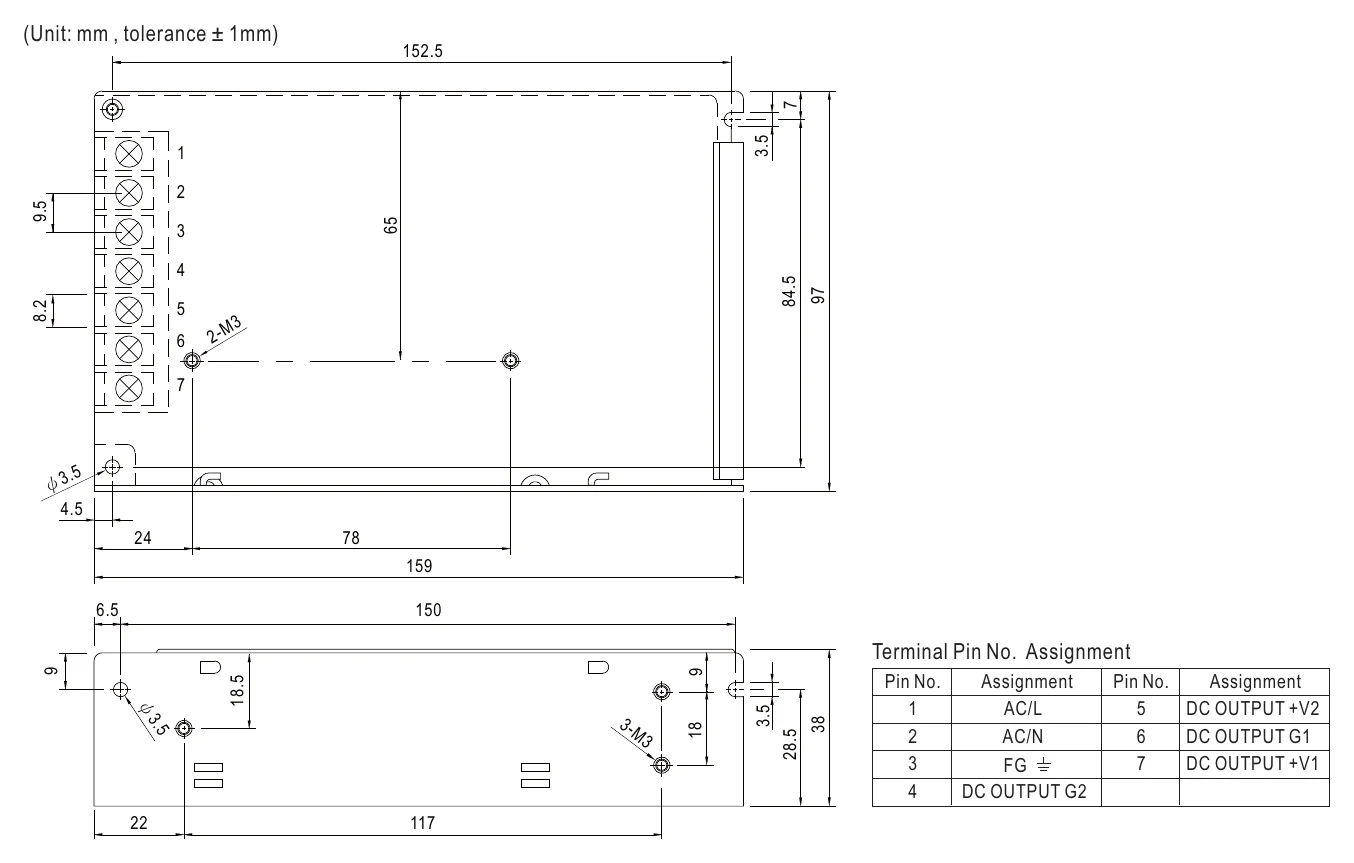

RID-85B Mechanical Specification
Mechanical Specification

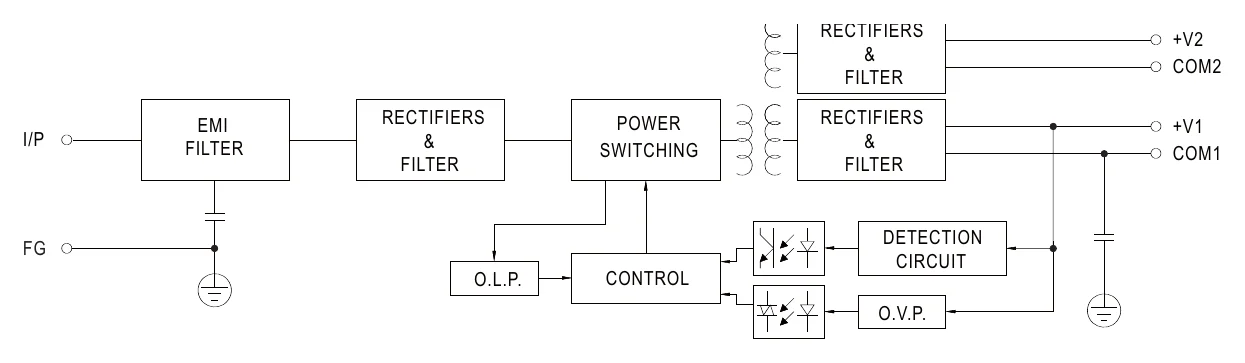

RID-85B Block Diagram
Block Diagram

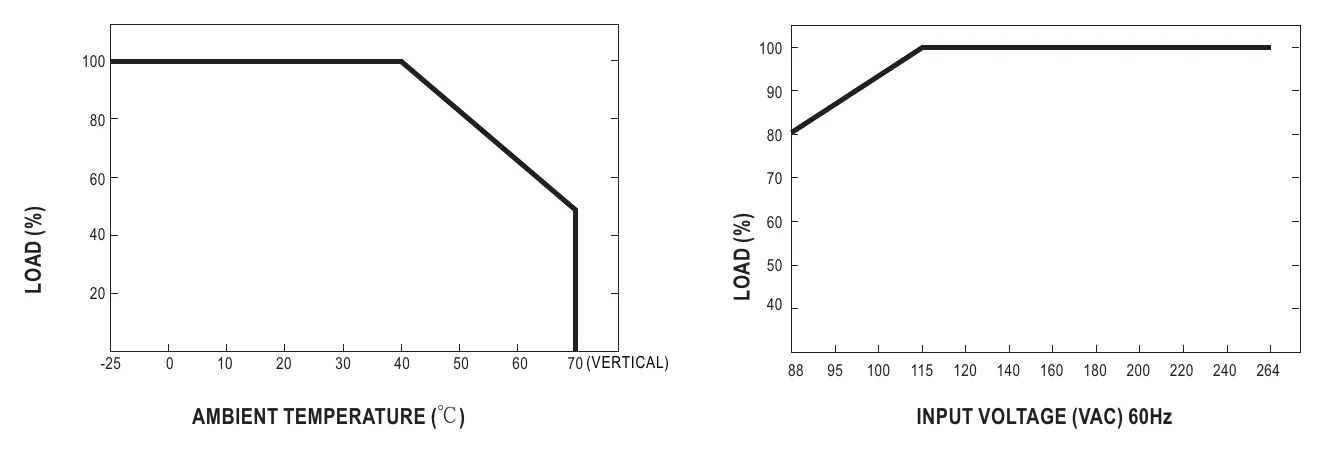

RID-85B Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RID-85B for 5V control electronics in an automation cabinet?

Yes, it can fit 5V control electronics that stay within its 88W rating and 8A output current. The supply accepts 88-264VAC input and is built as an enclosed dual-output unit for equipment integration.

Is the RID-85B a good fit for embedded monitoring or interface boards with lighter 5V loads?

It is better suited to lighter 5V embedded loads because its listed output current is 8A rather than 4A. The miniature enclosed design and 0.6 kg weight can also help where equipment space and mounting mass are limited.

Can the RID-85B be used in industrial equipment that runs at elevated ambient temperatures?

It is rated for operation from -25°C to +70°C, so the listed temperature range supports use inside industrial equipment with higher ambient conditions. The feature list also states 5G vibration resistance for more demanding machine environments.

Is the RID-85B intended for exposed outdoor installations?

No outdoor IP rating is provided in the supplied specs. The listed data supports temperature operation from -25°C to +70°C, but environmental sealing for direct outdoor exposure is not specified.

What are the main RID series alternatives to the RID-85B?

The supplied siblings include RID-50A at 50W 5V 2A, RID-50B at 50W 5V 1.4A, RID-65A at 65W 5V 3A, RID-65B at 65W 5V 2A, and RID-85A at 85W 5V 8A. Other listed options are RID-125-1205 at 125W 5V 3A, RID-125-1224 at 125W 12V 3.7A, RID-125-1248 at 125W 12V 2.3A, RID-125-2405 at 125W 5V 3A, and RID-125-2448 at 125W 24V 22A, while the RID-85B itself is 85W 5V 8A.
