Mean Well

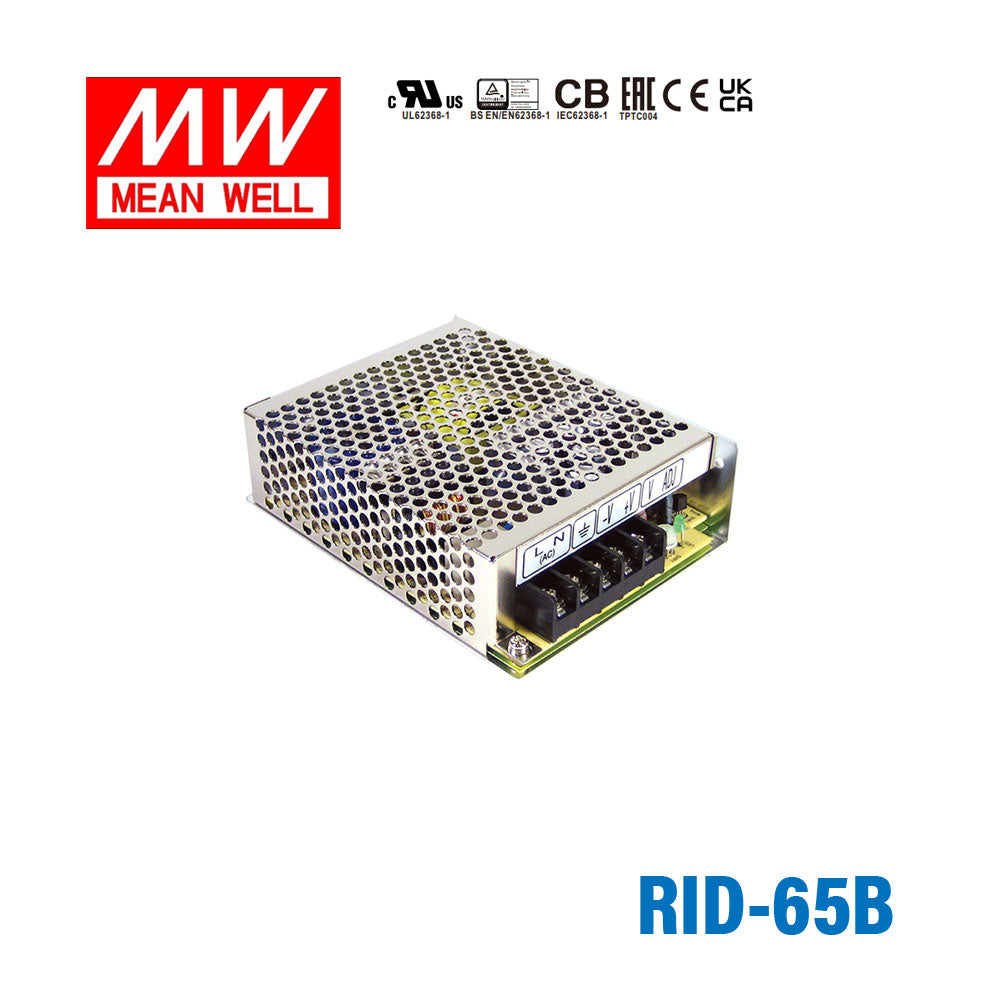

Mean Well RID-65B AC-DC Dual output enclosed power supply 65W 2A

miniature sizeeconomicalwithstand 5G vibration and 70°C operationisolated dual output
SKU RID-65B
$30.25 USD
Shipping calculated at checkout.
In stock
|

Overview

RID-65B is the 5V / 24V output model of this series: rated current 4A / 2A, rated power 68W, typical efficiency 81%.

Features

  • Isolated output & GND for CH1,CH2
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RID-65BSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2
DC VOLTAGE
5V / 24V
RATED CURRENT
4A / 2A
CURRENT RANGENote.6
0 ~ 8A / 0 ~ 3A
RATED POWERNote.6
68W
RIPPLE & NOISE (max.)Note.2
80mVp-p / 150mVp-p
VOLTAGE ADJ. RANGE
CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0% / ±10%
LINE REGULATIONNote.4
±0.5% / ±2.0%
LOAD REGULATIONNote.5
±0.5% / ±5.0%
SETUP, RISE TIME
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
81%
AC CURRENT (Typ.)
2A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 50A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)on +5V output
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
2940.2K hrs min. Telcordia SR-332 (Bellcore) ; 541.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
129*98*38mm (L*W*H)
PACKING
0.44Kg; 30pcs/14.2Kg/0.72CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
  6. 6. Each output can work within current range. But total output power can't exceed rated output power.
  7. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RID-65B Mechanical Specification
Mechanical Specification
RID-65B Block Diagram
Block Diagram
RID-65B Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RID-65B for 5V automation controllers and industrial logic circuits?

Yes, for equipment that requires 5V DC and stays within the 65W and 2A output rating. It fits automation controllers and logic circuits where the load does not need the higher 3A level of RID-65A.

Is the RID-65B suitable for 5V IT or embedded devices inside an equipment enclosure?

It is suitable for enclosed IT or embedded devices that run on 5V DC and need up to 65W or 2A. The 129.0 × 98.0 × 38.0 mm housing supports use in compact equipment enclosures.

Can this power supply be used for 5V industrial monitoring or communications modules?

Yes, if the monitoring or communications modules are specified for 5V DC and their demand remains within 65W and 2A. The isolated dual output design is intended for protected equipment environments rather than exposed field use.

Will the RID-65B handle hot control cabinets or cooler plant areas?

The specified operating range is -25°C to +70°C, so it can cover both cooler and hotter indoor industrial conditions within that range. Since no IP rating is provided, it should be used in a protected enclosure instead of exposed outdoor service.

How does RID-65B compare with RID-65A and the rest of the RID family?

RID-65B is 65W at 5V and 2A. In the listed siblings, RID-65A is 65W, 5V, 3A; RID-50A is 50W, 5V, 2A; RID-50B is 50W, 5V, 1.4A; RID-85A is 85W, 5V, 4A; RID-85B is 85W, 5V, 2A; RID-125-1205 is 125W, 5V, 3A; RID-125-1224 is 125W, 12V, 3.7A; RID-125-1248 is 125W, 12V, 2.3A; RID-125-2405 is 125W, 5V, 3A; and RID-125-2448 is 125W, 24V, 22A.
