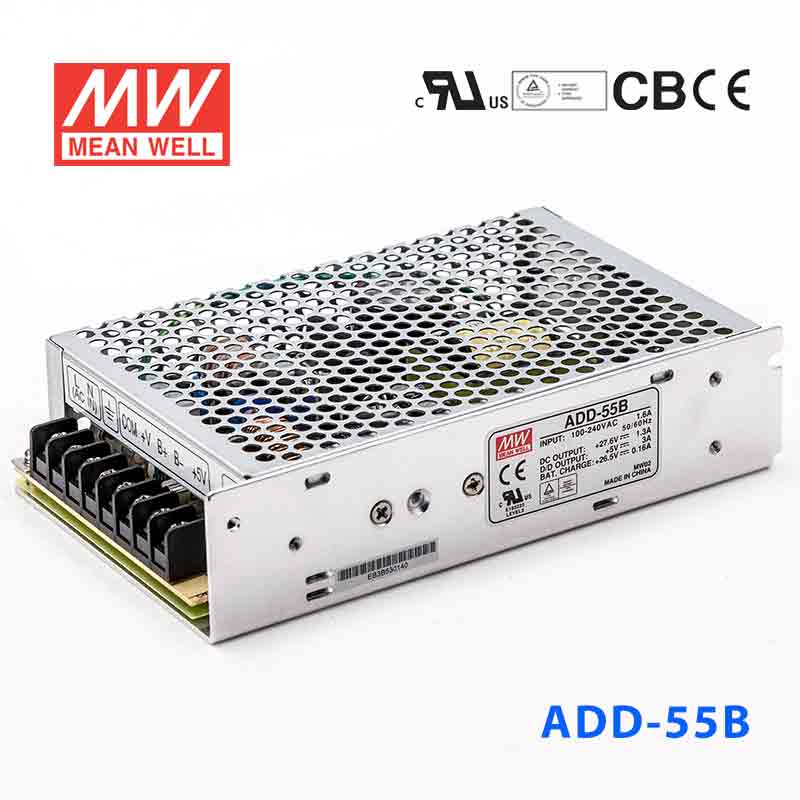

Mean Well ADD-55B Security Power Supply 55.12W 27.6V 5V 1.3A - UPS, Dual output
Mean Well ADD-55B Security Power Supply 55.12W 27.6V 5V 1.3A - UPS,...
Overview
ADD-55B is the model of this series: rated power 55.12W, typical efficiency 74%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protections
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1, CH2, CH3
- DC VOLTAGE CH1
- 27.6V
- DC VOLTAGE CH2
- 5V
- DC VOLTAGE CH3
- 26.5V
- RATED CURRENT CH1
- 1.3A
- RATED CURRENT CH2
- 3A
- RATED CURRENT CH3
- 0.16A
- CURRENT RANGE CH1
- 0 ~ 2A
- CURRENT RANGE CH2
- 0 ~ 4A
- CURRENT RANGE CH3
- --------
- RATED POWER
- 55.12W
- RIPPLE & NOISE (max.) CH1Note.2
- 150mVp-p
- RIPPLE & NOISE (max.) CH2Note.2
- 150mVp-p
- RIPPLE & NOISE (max.) CH3Note.2
- --------
- VOLTAGE ADJ. RANGE
- CH1: 24 ~ 29V
- VOLTAGE TOLERANCE CH1Note.3
- ±1.0%
- VOLTAGE TOLERANCE CH2Note.3
- ±3.0%
- VOLTAGE TOLERANCE CH3Note.3
- --------
- LINE REGULATION CH1
- ±1.0%
- LINE REGULATION CH2
- ±0.5%
- LINE REGULATION CH3
- --------
- LOAD REGULATION CH1
- ±1.0%
- LOAD REGULATION CH2
- ±0.5%
- LOAD REGULATION CH3
- --------
- SETUP, RISE TIME
- 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 74%
- AC CURRENT (Typ.)
- 1.6A/115VAC 1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
- OVER VOLTAGE
- CH1:28.98 ~ 37.26V Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION
- DC ALARM SIGNAL(OPTIONAL)
- AC fail CN1 PIN2 Battery low under charge voltage 82.5%±2% CN1 PIN1 Normal 0.8V max. Abnormal 5V±0.5V
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃) on CH1 output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2002.7K hrs min. Telcordia SR-332 (Bellcore) ; 373.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 159*97*38mm (L*W*H)
- PACKING
- 0.57Kg; 24pcs/13.7Kg/0.83CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates7
Test reports1
Catalogues1
FAQ
What is the ADD-55B typically used for?
The Mean Well ADD-55B is typically used in smaller security and backup-power systems that need a 27.6V main DC output in a dual-output power supply. With 55.12W of rated power and 1.3A on the main 27.6V output, it fits lighter-duty applications where a compact UPS-style supply is sufficient.
Can the ADD-55B support battery-backed security power designs?
Yes. The ADD-55B is positioned as a security power supply with UPS function, so it is suitable for battery-backed DC system designs when the connected load stays within the product's 27.6V, 1.3A, and 55.12W output rating.
Will the ADD-55B run from common 120V and 240V AC mains?
Yes. The listed AC input range is 88-264VAC, so the ADD-55B can operate from common AC mains systems within that range, including typical 120V and 240V supplies. That helps keep deployments flexible across sites.
How does the ADD-55B compare with other ADD series models?
Within the ADD-55 series, the ADD-55B delivers 55.12W with a 27.6V main output at 1.3A, plus a 5V/3A auxiliary output, at 74% typical efficiency. The ADD-55A provides 52.58W with a 13.8V main output at 2.5A and 71% typical efficiency. The choice depends on the main output voltage and battery system your design uses.
