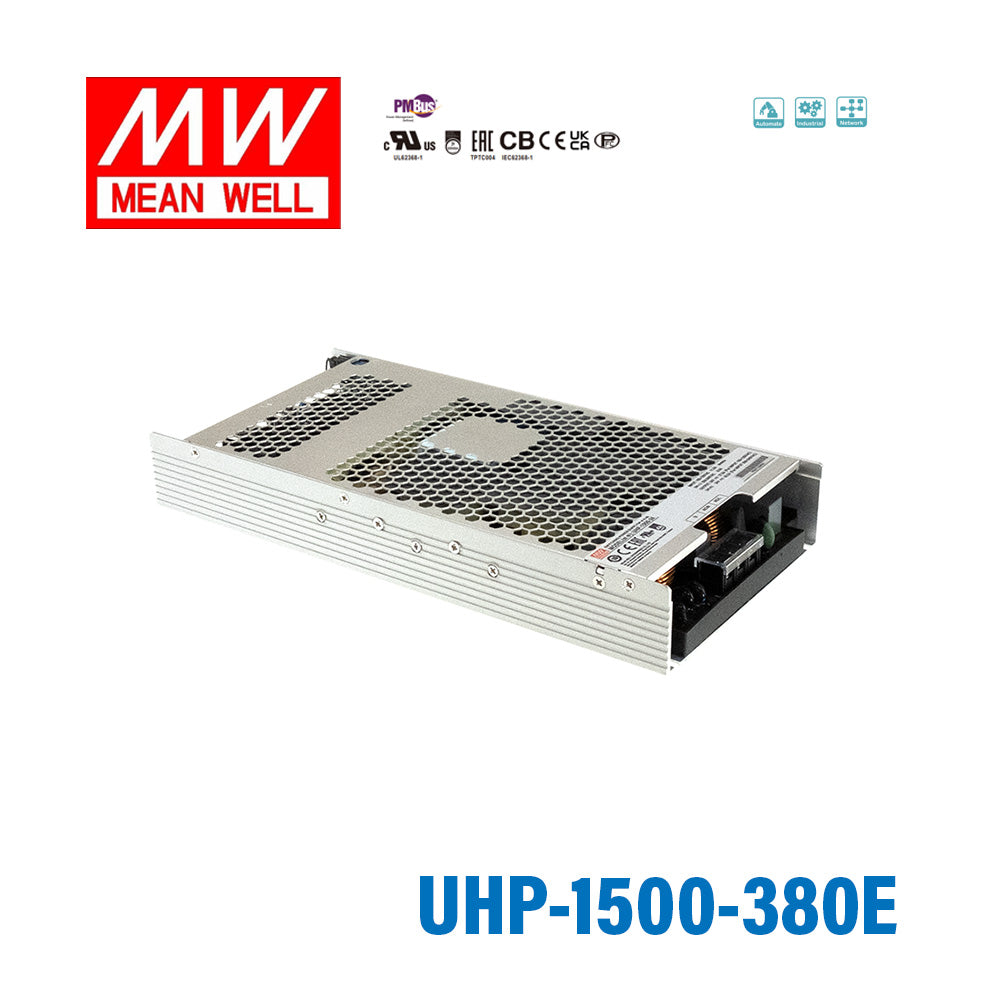

Mean Well UHP-1500-380E Power Supply 1500W 380V Economic Model

Name: Mean Well UHP-1500-380E Power Supply 1500W 380V Economic Model
Brand: Mean Well
SKU: UHP-1500-380E
Price: 362.13 USD
Availability: InStock

$362.13 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:⦁ High voltage output (115/230/380V)⦁ Fanless and conduction-cooled design⦁ Slim and 1U Low profile (41mm)⦁ Built-in active PFC function⦁ DC 12V/0.4A auxiliary power⦁ Output voltage and constant current level programmable (PV/PC)⦁ Protections: Short circuit / Over load / Over voltage / Over temperature⦁ Built-in remote ON-OFF control and DC OK signal⦁ Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)⦁ LED indicator for power on⦁ Optional PMBus or CANBus protocol⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 250 - 370VDCAC Inrush Current (max.)Cold start 60A/230VACOverload Protection105-125% rated output powerProtection type: Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Short CircuitConstant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Over-voltage Protection(428 - 460V)Protection type:vShut down O/P voltage,re-power on to recoverOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after temperature goes downWithstand VoltageOVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approvedDimension (LxWxH)290x140x41mm

Specifications

Brand

Mean Well
Series

UHP Series
Power Rating

1501 Watt
Output Voltage

380 Volt
Rated Current

3.95 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

11.42 in
Width

5.51 in
Height

1.61 in
Weight

5.53 lb

File Downloads

::specification::
