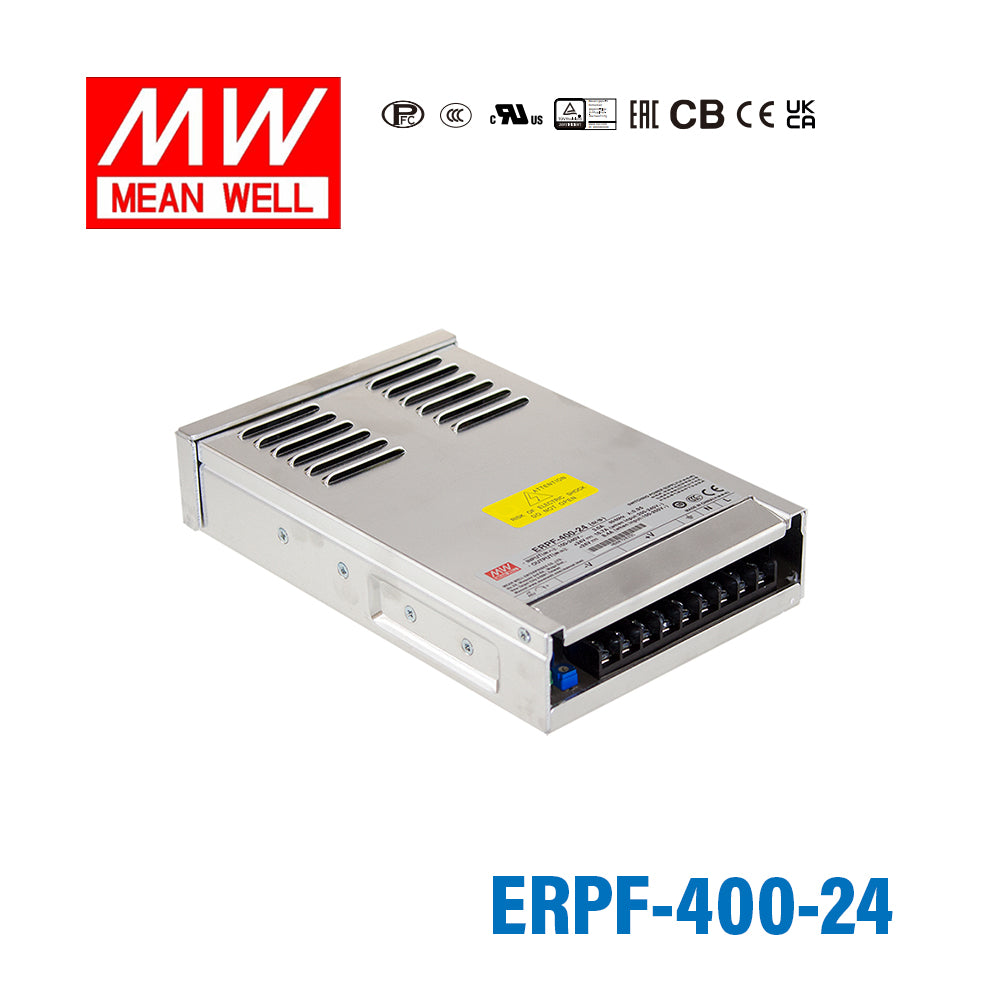

Mean Well ERPF-400-24 Switching Power Supply 400W 24V

Name: Mean Well ERPF-400-24 Switching Power Supply 400W 24V
Brand: Mean Well
SKU: ERPF-400-24
Price: 49.8 USD
Availability: InStock

$49.80 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

⦁ Universal AC input / Full range
⦁ (Withstand 300VAC surge input for 5 seconds)
⦁ Built-in active PFC function
⦁ High efficiency up to 91%
⦁ Design against rain splash
⦁ Protections: Short circuit / Overload / Over voltage/
⦁ Over temperature
⦁ Cooling by free air convection
⦁ LED indicator for power on
⦁ Low cost,high reliability
⦁ 100% full load burn-in test
⦁ 3 years warranty

General Specification:

Input Voltage
90 - 264VAC 127 - 370VDC
Inrush Current
cold start 45A/115VAC, 90A/230VAC
Over Load Protection
105 - 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Short Circuit Protection
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection
(13.8 - 16.2V) (27.6 - 32.4V) (55.2 - 64.8V)
Protection type :Shut down O/P voltage, re-power on to recover
Over Temperature Protection
Shut down O/P voltage, recovers automatically after temperature goes down
Withstand Voltage
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Operating Temperature
-30 - +60℃ (Refer to output load derating curve)
Safety Standard
UL60950-1,IEC/BS EN/EN62368-1, GB 4943.1, EAC TP TC 004, IS13252(Part1)(for 12,24 only) approved
Dimension (LxWxH)
220.4 x 130 x 48mm

Specifications

Brand

Mean Well
Series

Mean Well ERPF Series
Power Rating

400.8 Watt
Output Voltage

24 Volt
Rated Current

16.7 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

8.68 in
Width

5.12 in
Height

1.89 in
Weight

2.43 lb

File Downloads

::specification::
