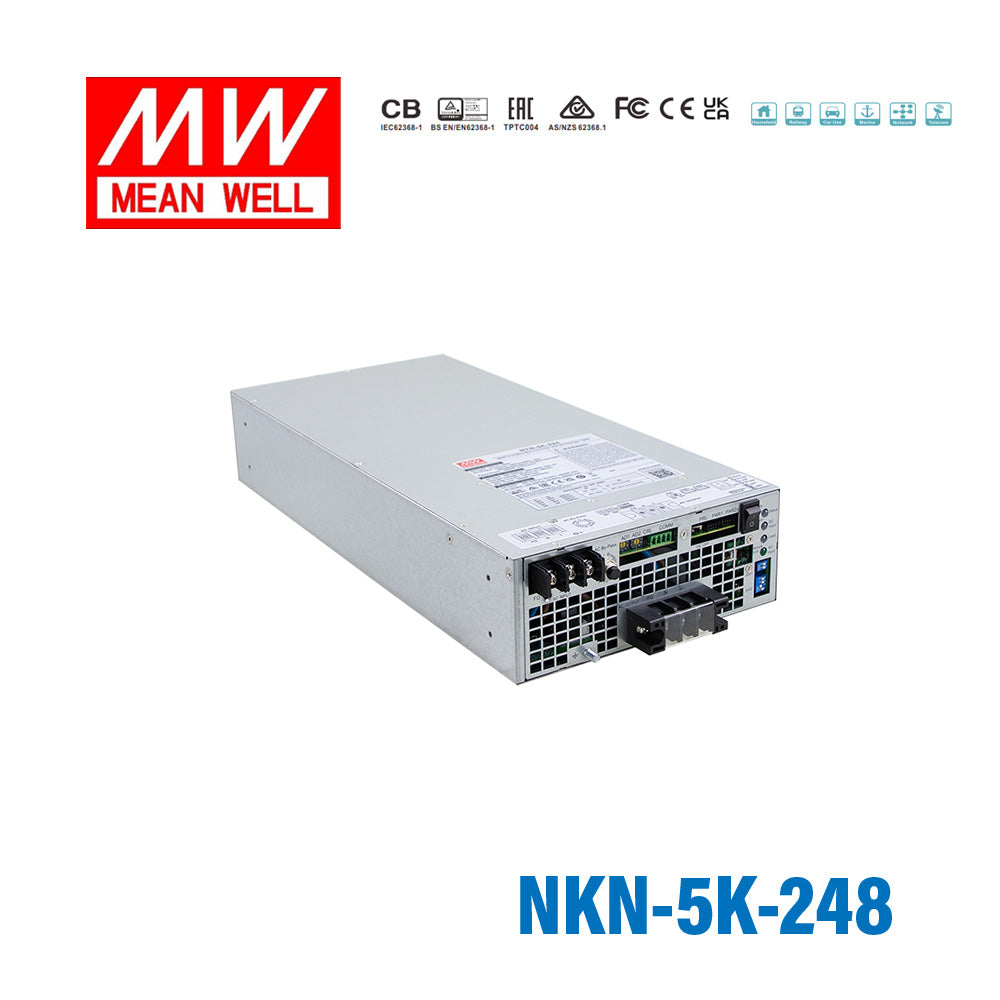

Mean Well NKN-5K-248 5KW True Sine Wave Inverter with AC Charger/UPS, 48V In 230V Out

Name: Mean Well NKN-5K-248 5KW True Sine Wave Inverter with AC Charger/UPS, 48V In 230V Out
Brand: Mean Well
SKU: NKN-5K-248
Price: 3703.12 USD
Availability: InStock

$3,703.12 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Multi-functional All-in-One device (AC-DC Charger + DC-AC Inverter for Load + AC Bypass for Load)
Built-in AC-DC high power charger up to 4520W
DC-AC pure sine wave output (THD<3%)
Instantaneous peak power of up to 10KW for AC output
Up to 6 units of AC output can be paralleled, expanding wattage up to 30KW (5+1 units)
Utilizes 3 NTN-5K unidirectional AC outputs, configurable for 3Ø4W usage
-30～+70℃ ultra-wide temperature range, suitable for global deployment or installation in enclosed environments
Built-in remote ON/OFF control
Protections:
- DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over Discharge
- AC output: Short Circuit, Overload, Over Temperature
Built-in Modbus or CAN bus communication monitoring
Optional intelligent controllers available for purchase:
- CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
Dimensions (length x width x height): 460 x 211 x 83.5mm
PCB coating for basic moisture / dust / dirt protection
Certifications: CB / TUV / RCM / EAC / CE / UKCA / FCC
Compatible with lead acid or lithium batteries
5 years warranty

General Specification

DC input voltage range

(19 - 33Vdc) (38 - 66Vdc) (280 - 430Vdc)

AC output frequency

Default setting set at 50±0.1Hz

50/60Hz selectable by DIP S.W

LOW & HIGH

ALARM, SHUTDOWN, RESTART

Reverse Polarity

No damage, re-power on to recover after fault condition is removed

Over Temperature

Shut down o/p voltage, recovers automatically after temperature goes down

Output Short

Shut down the o/p voltage, and re-power it to recover

OVERLOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 140% load for 10 sec.

105 - 115% load for 180 sec., 115% - 150% load for 10 sec.

Protection type: Shut down o/p voltage, re-power on to recover

Remote Control

Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Remote off ; Short: Normal work

Communication

MODBus-RTU (RS-485) / CANBus

Withstand voltage

(DC I/P - AC:3.0KVAC) (AC - FG:1.5KVAC)

Working temperature

-30 ~ +70℃(Refer to “Derating curve”)

Safety standards

CB IEC62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

Dimension (LxWxH)

460x211x83.5mm

Specifications

Brand

Mean Well
Series

Mean Well NTN-5K Series
Power Rating

5000 Watt
Output Voltage

200 Volt
Rated Current

120 Ampere
Input Voltage

38V~66V
Standards Met

CB,CE,EAC,EN,FC
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

18.11 in
Width

8.31 in
Height

3.29 in
Weight

23.15 lb
