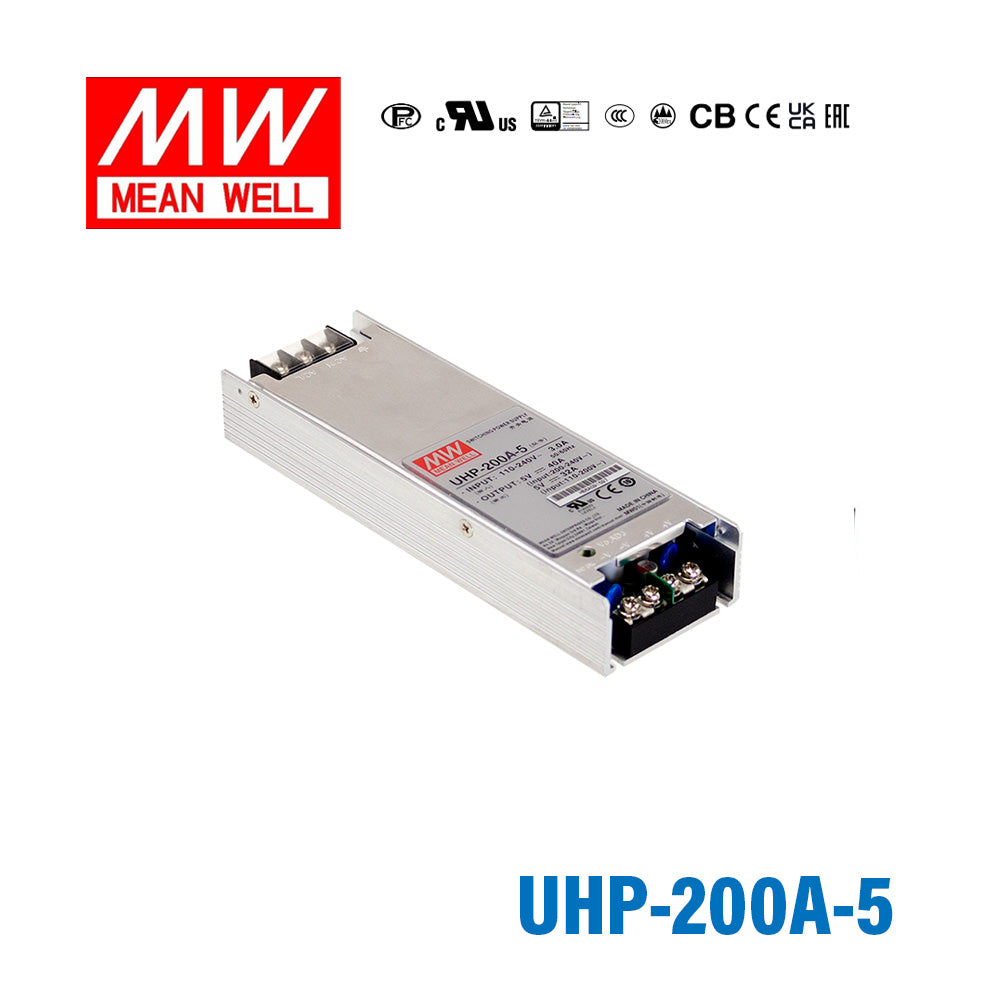

Mean Well UHP-200A-5 Power Supply 200W 5V

Name: Mean Well UHP-200A-5 Power Supply 200W 5V
Brand: Mean Well
SKU: UHP-200A-5
Price: 68.31 USD
Availability: InStock

$68.31 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:⦁ Universal AC input / Full range⦁ Withstand 300VAC surge input for 5 seconds⦁ Low profile: 26mm⦁ Built-in active PFC function⦁ Fanless design, cooling by free air convection⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Low leakage current <1.0mA⦁ LED indicator for power on⦁ 3 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 85A/230VACOverload Protection110-140% rated output powerProtection type: Hiccup mode, recovers automatically after fault condition is removedShort CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removedOver-voltage Protection(4.6 - 6V) (5 - 6.4V) (5.6 - 7.1V)Protection type: Hiccup mode, recovers automatically after fault condition is removedOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after fault condition is removedWithstand VoltageI/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVACWorking Temperature-30 - +70℃ (Refer to “OUTPUT LOAD vs TEMPERATURE")Safety StandardsUL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approvedDimension (LxWxH)167x55x26mm

Specifications

Brand

Mean Well
Series

UHP Series
Power Rating

200 Watt
Output Voltage

5 Volt
Rated Current

40 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

6.57 in
Width

2.17 in
Height

1.02 in
Weight

0.93 lb

File Downloads

::specification::
