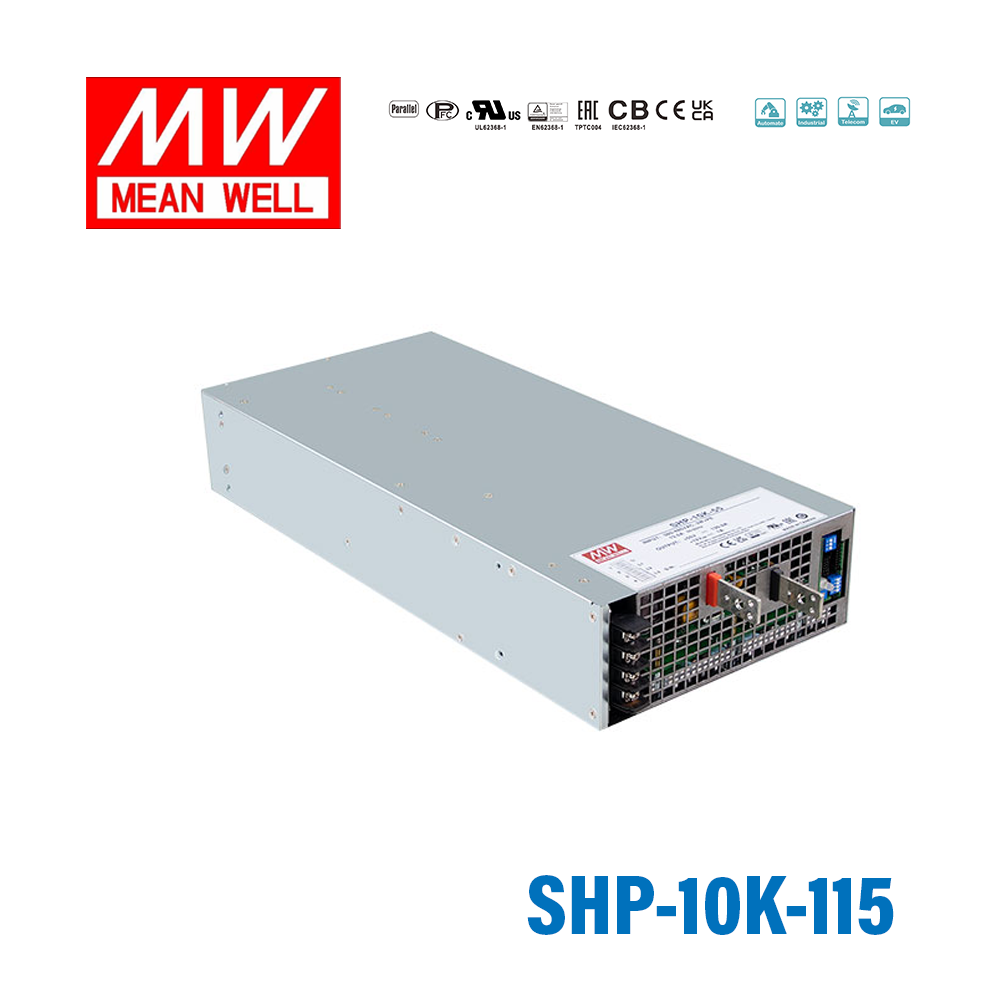

Mean Well SHP-10K-115 10KW High Efficiency Power Supply 115V Out 87A

Name: Mean Well SHP-10K-115 10KW High Efficiency Power Supply 115V Out 87A
Brand: Mean Well
SKU: SHP-10K-115
Price: 2791.0 USD
Availability: InStock

$2,791.00 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well SHP-10K-115 is a 10,000W high-efficiency digital power supply delivering 115V DC at up to 87A. Digital control gives tight regulation and full monitoring, and efficiency above 96% keeps heat and running cost down at this power level.

It runs from a three-phase 340~530VAC supply with a power factor above 0.98 at full load, operates from -30°C to 70°C and carries CB, CE, EAC and EN approvals, and includes constant-current limiting, over-voltage and over-temperature protection. Backed by a 5-year warranty.

Key Features

✓3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC
✓High efficiency up to 97%
✓Water / forced air cooling selectable
✓Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
✓Output voltage and constant current level programmable
✓Active current sharing up to 4 units (40KW)
✓Built-in remote ON-OFF control / Auxiliary power / Alarm signal
✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well SHP Series
Power Rating

10000 Watt
Output Voltage

115 Volt
Rated Current

87 Ampere
Input Voltage

340V~530V
Standards Met

CB,CE,EAC,EN
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

18.11 in
Width

8.31 in
Height

3.29 in
Weight

26.24 lb
