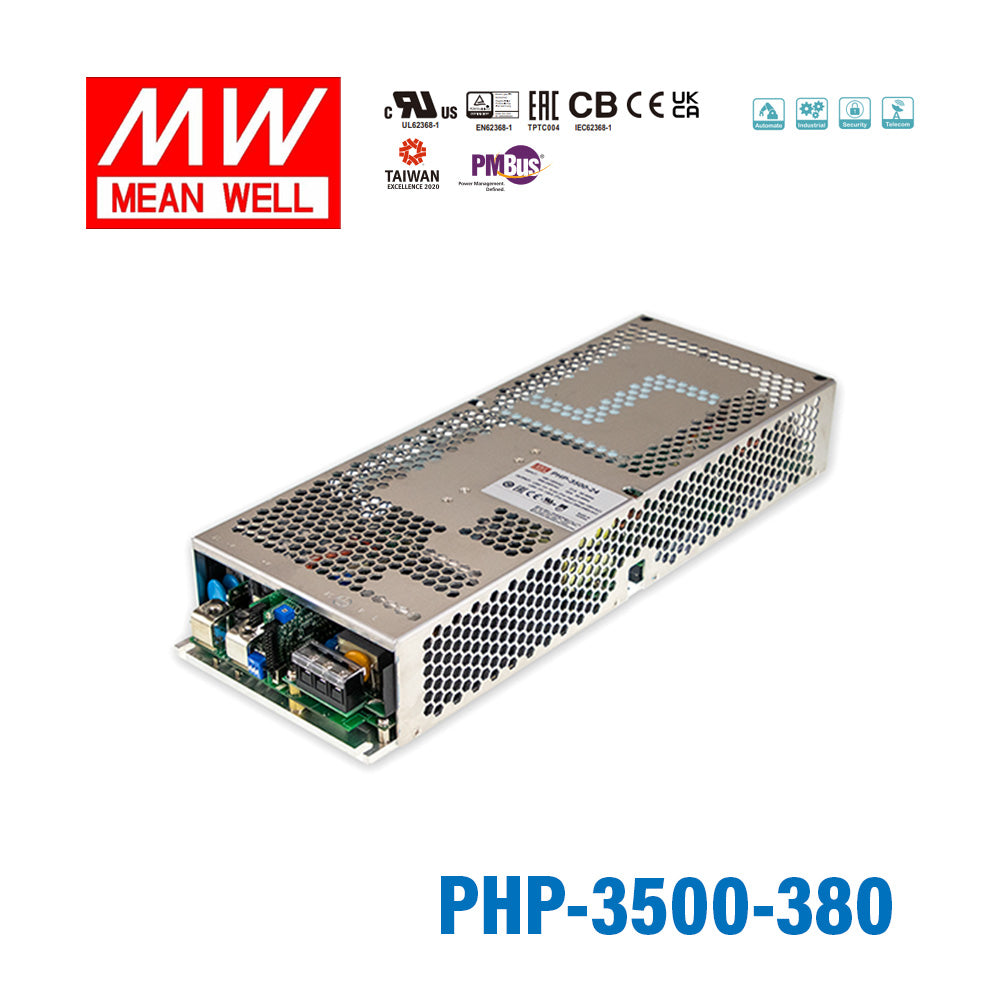

Mean Well PHP-3500-380 Power Supply 3500W 380V

Name: Mean Well PHP-3500-380 Power Supply 3500W 380V
Brand: Mean Well
SKU: PHP-3500-380
Price: 951.82 USD
Availability: InStock

$951.82 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:⦁ High voltage output (115/230/380V DC)⦁ Slim and Low profile (60mm)⦁ Fanless design with water or conduction cooling⦁ Active PFC design and efficiency up to 96%⦁ Built-in PMBus communication protocol, CANbus optional⦁ Output voltage and constant current level programmable⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Built-in remote ON/OFF control and DC-OK active signal⦁ Optional water-cooling plate for quick installation⦁ OVC III operating altitude up to 2000 meter⦁ LED indicator for power on⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 80A/230VAC 40A/115VACOverload Protection105 - 115% rated currentProtection type: Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recoverShort CircuitProtection type: Constant current limiting, unit will shut down after 5 sec, re-power on to recoverOver-voltage Protection(168 - 200V) (273 - 320) (413 - 460)Protection type: Shut down O/P voltage,re-power on to recoverWithstand VoltageI/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1Dimension (LxWxH)380x141.4x60mm

Specifications

Brand

Mean Well
Series

PHP Series
Power Rating

3500 Watt
Output Voltage

380 Volt
Rated Current

10.5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

14.96 in
Width

5.57 in
Height

2.36 in
Weight

8.97 lb
