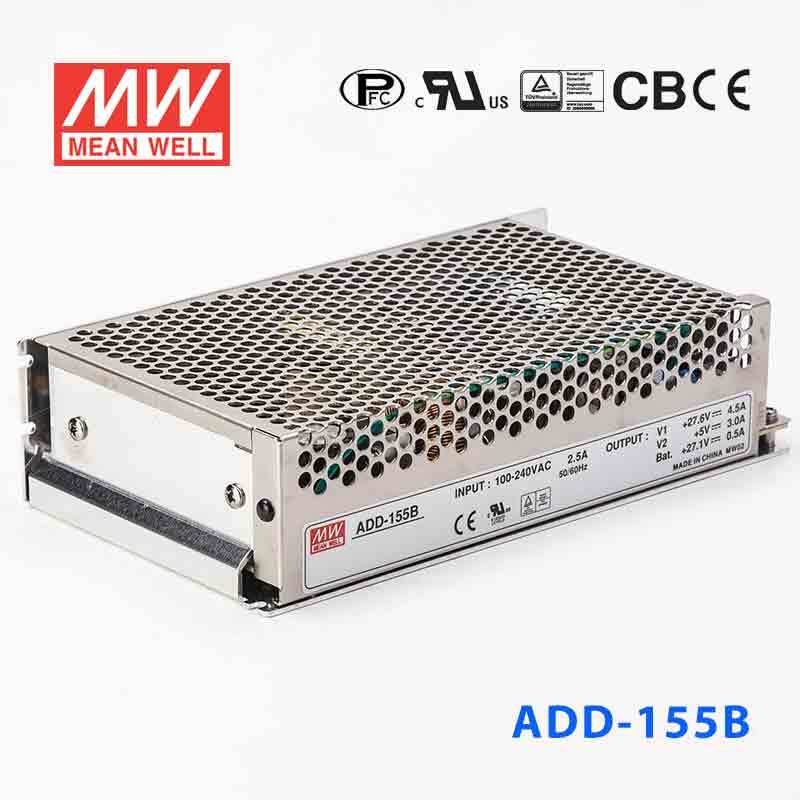

Mean Well ADD-155B Security Power Supply 152.75W 27.6V 5V 4.5A - UPS, Dual output
Mean Well ADD-155B Security Power Supply 152.75W 27.6V 5V 4.5A - UP...
Overview
ADD-155B is the model of this series: rated power 152.75W, typical efficiency 81%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage
- Battery low/battery polarity protections
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC 67KHz, PWM 134KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1, CH2, CH3
- DC VOLTAGE CH1
- 27.6V
- DC VOLTAGE CH2
- 5V
- DC VOLTAGE CH3
- 27.1V
- RATED CURRENT CH1
- 4.5A
- RATED CURRENT CH2
- 3A
- RATED CURRENT CH3
- 0.5A
- CURRENT RANGE CH1
- 0 ~ 5A
- CURRENT RANGE CH2
- 0 ~ 3A
- CURRENT RANGE CH3
- --------
- RATED POWER
- 152.75W
- RIPPLE & NOISE (max.) CH1Note.2
- 200mVp-p
- RIPPLE & NOISE (max.) CH2Note.2
- 100mVp-p
- RIPPLE & NOISE (max.) CH3Note.2
- --------
- VOLTAGE ADJ. RANGE
- CH1: 24 ~ 29V
- VOLTAGE TOLERANCE CH1Note.3
- ±1.0%
- VOLTAGE TOLERANCE CH2Note.3
- ±3.0%
- VOLTAGE TOLERANCE CH3Note.3
- --------
- LINE REGULATION CH1
- ±1.0%
- LINE REGULATION CH2
- ±0.5%
- LINE REGULATION CH3
- --------
- LOAD REGULATION CH1
- ±1.0%
- LOAD REGULATION CH2
- ±2.0%
- LOAD REGULATION CH3
- --------
- SETUP, RISE TIME
- 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 24ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.92 at full load
- EFFICIENCY (Typ.)
- 81%
- AC CURRENT (Typ.)
- 2.5A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 23A/115VAC 45A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
- OVER VOLTAGE
- CH1:31.74 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover
- BATTERY LOW
- 19.5V(+1.5V,-1V )
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 1744.5K hrs min. Telcordia SR-332 (Bellcore) ; 221.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*110*50mm (L*W*H)
- PACKING
- 1Kg; 16pcs/16Kg/0.95CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates7
Test reports1
Catalogues1
FAQ
What is the ADD-155B typically used for?
The Mean Well ADD-155B is typically used in security and backup-power systems that need a 27.6V main DC output and benefit from a dual-output design. With 152.75W of rated power and 4.5A on the main 27.6V output, it is a fit for higher-voltage DC loads in systems where an auxiliary low-voltage rail is also useful.
Is the ADD-155B suitable for battery-backed UPS-style DC systems?
Yes. The ADD-155B is a dual-output power supply with a battery charger (UPS function), so it is intended for DC systems that combine normal operation with battery-backed support. The primary connected load should stay within the unit's 27.6V, 4.5A, and 152.75W output capability.
Does the ADD-155B support common 120V and 240V AC input ranges?
Yes. The specified AC input range is 88-264VAC, which allows the ADD-155B to operate from common 120V and 240V mains supplies within that range. That flexibility is useful when standardizing installations across different sites.
Can the ADD-155B be mounted in exposed outdoor conditions?
The current product data does not show a waterproof IP rating, so the ADD-155B should be treated as an indoor or protected-enclosure power supply rather than a unit for direct outdoor exposure. Its listed working temperature is -10°C to +60°C, but enclosure protection should still match the environment.
How does the ADD-155B compare with other ADD series models?
The ADD-155B provides 152.75W with a 27.6V main output at 4.5A in a dual-output design. In the same family, the ADD-155C provides 149.9W with a 54V main output at 2.3A, while the ADD-155A provides 152.75W with a 13.8V main output at 9.5A. Selection depends on which main output voltage class you need and how much current headroom your application needs.
