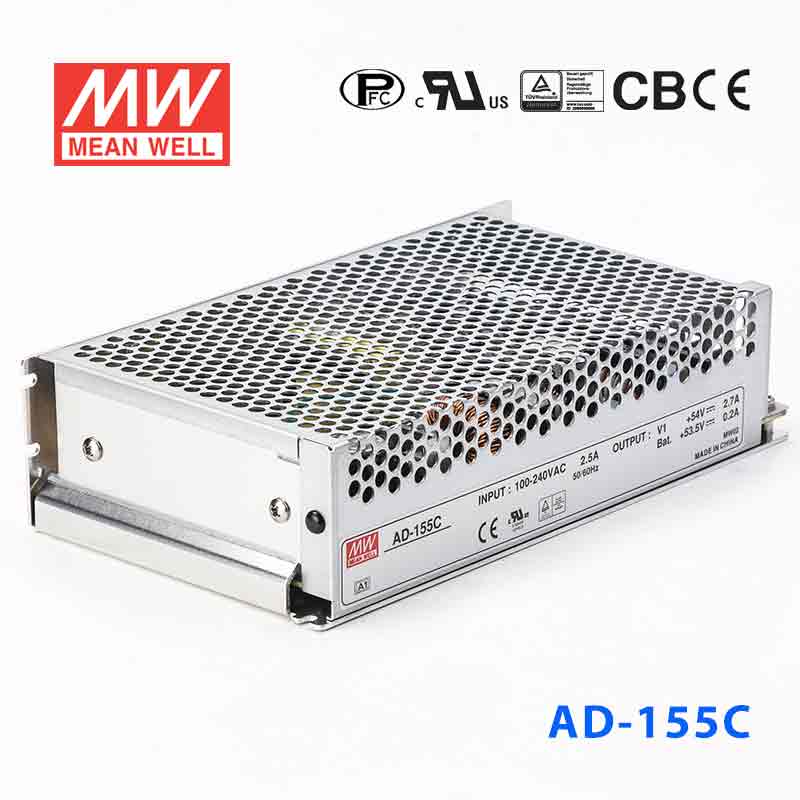

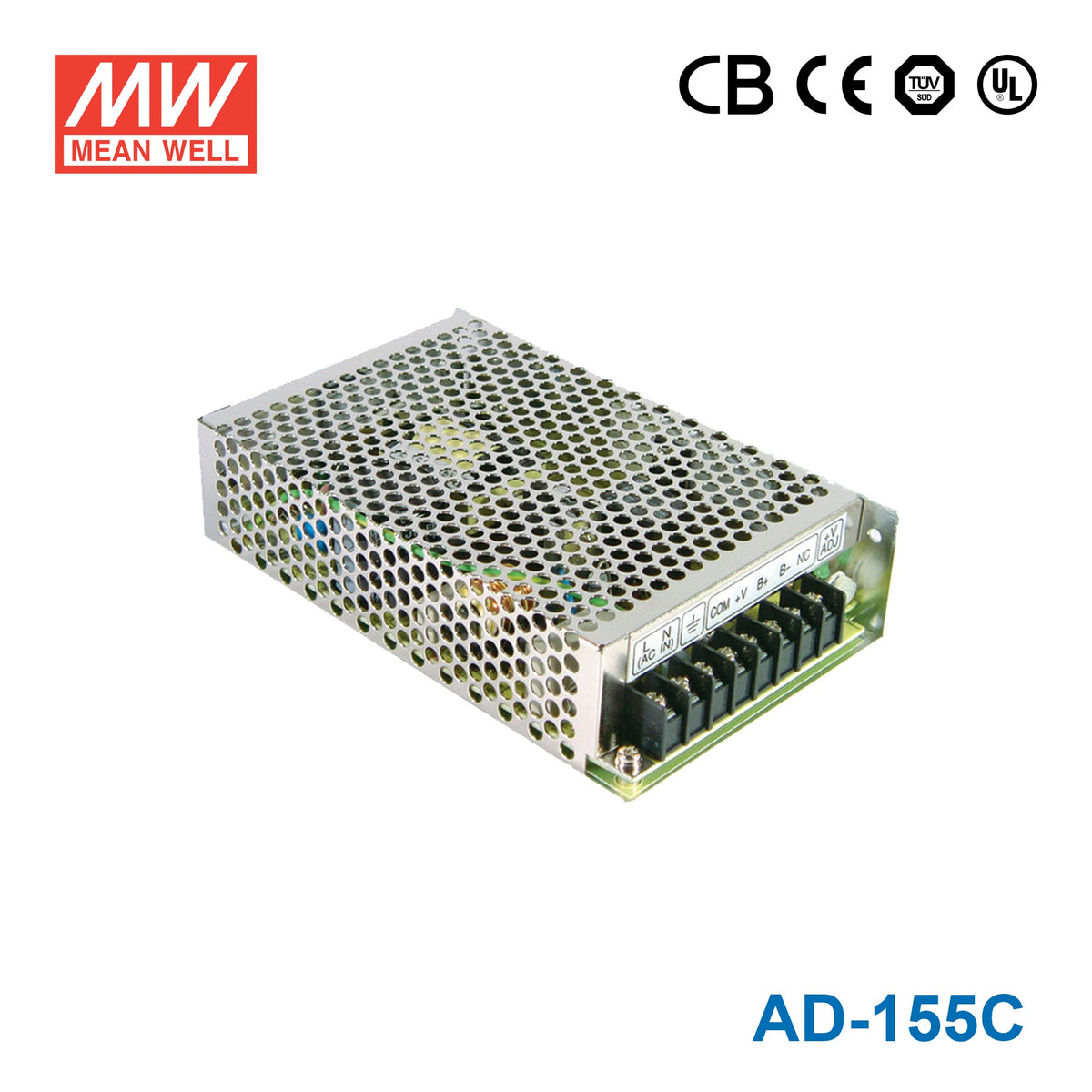

Mean Well AD-155C Security Power Supply 156.5W 54V 2.7A - UPS
$71.68 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit/ Overload/ Over voltage |
| Battery low and battery polarity protections |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at 67KHz, PWM 134 KHz |
| 2 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current | COLD START 23A/115VAC; 45A/230VAC |
| Leakage current | <1mA/240VAC |
| Overload protection | 105%~135% rated output power |
| Over-voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 1000ms, 90ms, 24ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -10~+60°C |
| Vibration | 10~500Hz, 2G 10min./1 cycle, a period of 60min. Each along the X, Y, and Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No. | 906 |
| Dimension (LxWxH) | 199*110*50mm |
| Packing | ; 16pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesAD Series
-
Power Rating156.5 Watt
-
Output Voltage54 Volt
-
Rated Current2.7 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.94 lb
