Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

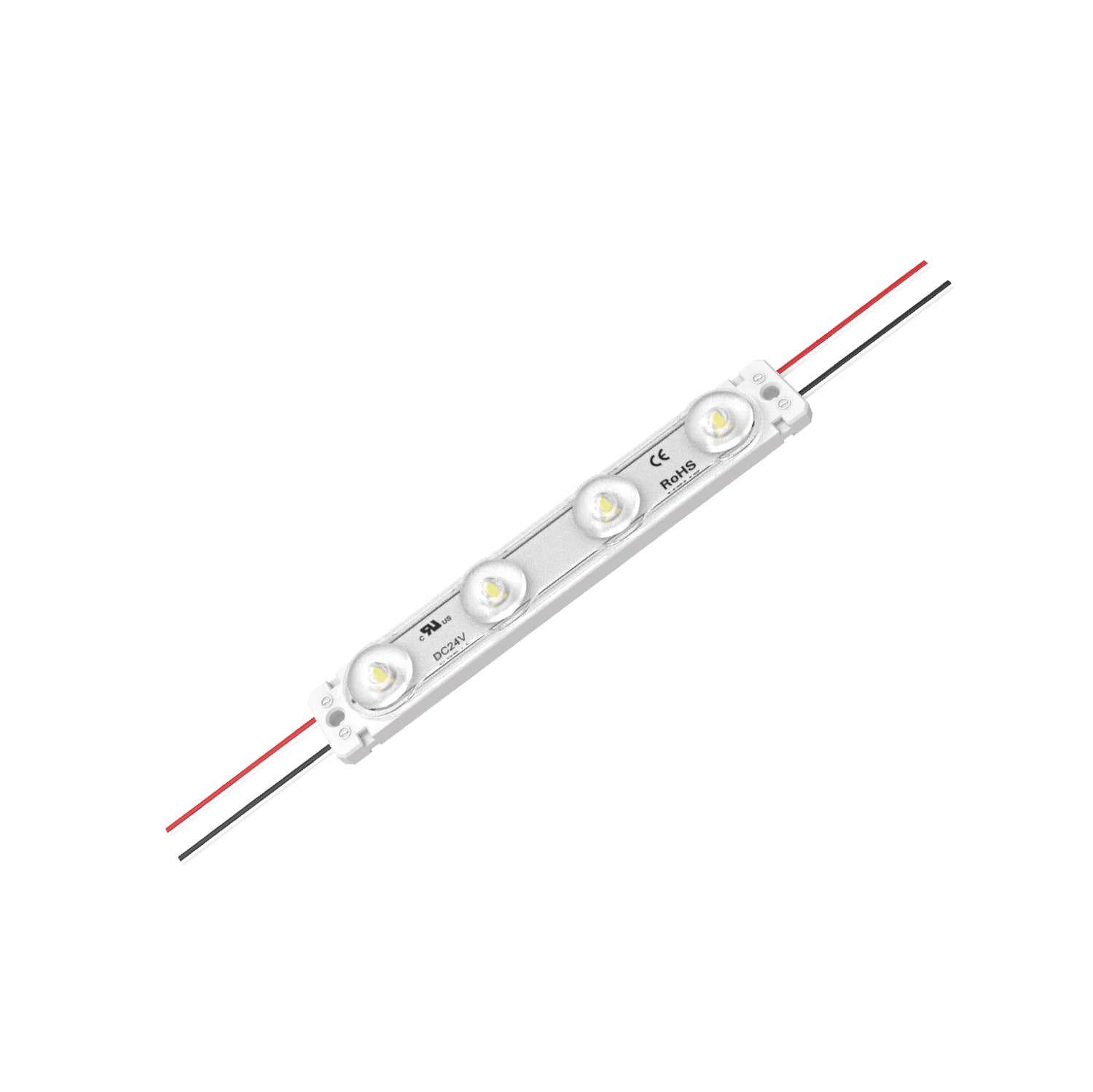

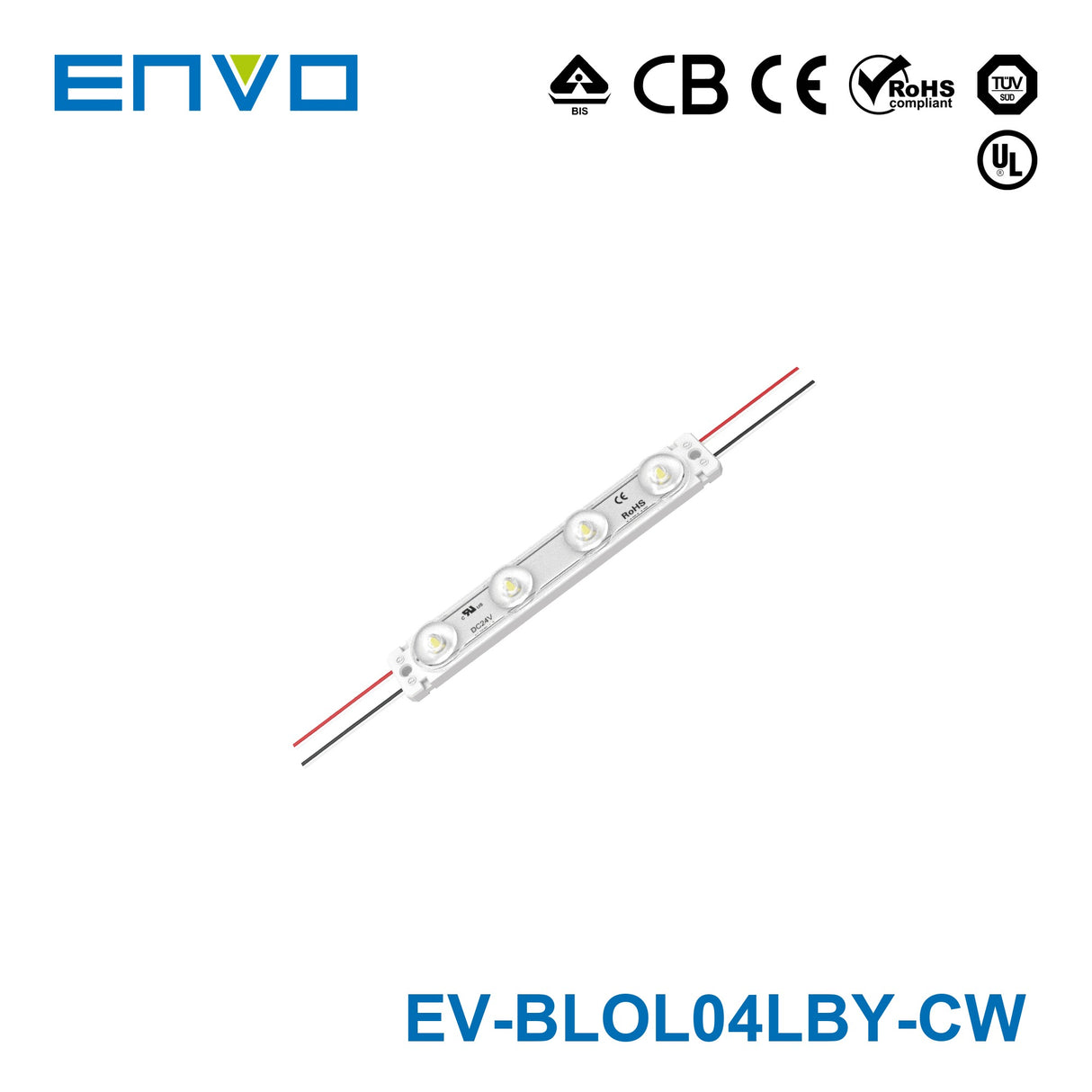

ENVO OptiLume LED Module Backlit - Quad LED

Name: ENVO OptiLume LED Module Backlit - Quad LED
Brand: Envo
SKU: EV-BLOL04LBY-CW
Price: 1.81 USD
Availability: InStock

24V1.32WIP67

SKU EV-BLOL04LBY-CW

$1.81 USD

Shipping calculated at checkout.

Configure — 3 variants

EV-BLOL04LBY-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

Powered by high output 2835.
Light efficacy more than 150LM/W.
Constant voltage, CC optional.
No Polarity limit input for CC and CV.
Dimmable
Integrated transparent 170°optic lens.
50/20 pcs per string.
CE, ROHS, UL, TUV, BIS, CB and LM-80 certified

Specifications

ENVO OptiLume LED Module Backlit - Quad LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour
EV-BLOL04LBY-CW	Cool White 6500K
EV-BLOL04LBY-NW	Natural White 4000K
EV-BLOL04LBY-WW	Warm White 3000K

Parameters

Beaming Angle (°): 170°
CRI (Ra): ≥70
Voltage (V): DC24
Power (W): 1.32
Driving Method: Constant Voltage
Dimension (mm): 108*17*10.6
Working Tem. (°C): -25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP67

Others

Warranty: 7 years

Certifications & ratings

Certification marks: CE, RoHS, UL, TÜV, BIS, CB, LM-80

Technical drawings

ENVO OptiLume LED Module Backlit - Quad LED Dimension (Unit:mm/inch) — Dimension (Unit:mm/inch)

ENVO OptiLume LED Module Backlit - Quad LED Beaming Angle — Beaming Angle

ENVO OptiLume LED Module Backlit - Quad LED Remark — Remark

ENVO OptiLume LED Module Backlit - Quad LED Wire Connection — Wire Connection

ENVO OptiLume LED Module Backlit - Quad LED Packing — Packing

ENVO OptiLume LED Module Backlit - Quad LED Self-provided tools & material — Self-provided tools & material

ENVO OptiLume LED Module Backlit - Quad LED Installation Guidance — Installation Guidance

ENVO OptiLume LED Module Backlit - Quad LED Installation Guidance (2) — Installation Guidance (2)

ENVO OptiLume LED Module Backlit - Quad LED Installation Guidance (3) — Installation Guidance (3)

ENVO OptiLume LED Module Backlit - Quad LED Installation Guidance (4) — Installation Guidance (4)

Typical applications

Apply to 6-20 cm depth illuminated letter or light box at airports,metros, banks, buildings and shopping malls, etc.

Downloads

Datasheet1

ENVO OptiLume LED Module Backlit - Quad LED datasheetEV_BLOL04LBY.pdf PDF Download

FAQ

What is the ENVO OptiLume LED Module Backlit - Quad LED designed for?

This LED module is designed for illuminating letters and light boxes in commercial and public settings. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even backlit signage is needed.

What sign depth is this LED module suitable for?

The OptiLume Quad LED module is suitable for illuminated letters and light boxes with depths from 6 cm to 20 cm. That makes it a practical option for a wide range of backlit signage formats.

What color temperature options are available in this product family?

This parent product family is available in three color temperature options: 3000K, 4000K, and 6500K. These options let buyers choose a warmer, neutral, or cooler light appearance while keeping the same core module format and performance.

Are the different variants equal in brightness and power?

Yes. Based on the variant data provided, each version delivers 200 lumens and uses 1.32 W of power. The main difference across the family is color temperature rather than output or wattage.

What are the main performance specifications of this LED module?

This module has a 170-degree beam angle, CRI 80, dimmable control, and a rated lifetime of 50,000 hours. It also carries a 5-year warranty, supporting long-term commercial signage use.

Is this LED module compatible with 24V signage systems?

Yes. The parent model is identified as a 24V power input product, and the category data also places it within 24V signage module groups. Buyers looking for 24V backlit signage modules can use this family as a relevant option.

What makes this module suitable for even backlighting?

The module uses wide 170-degree optics to spread light broadly across the sign face. This helps support more uniform illumination in letters and light boxes where consistent visual coverage is important.
