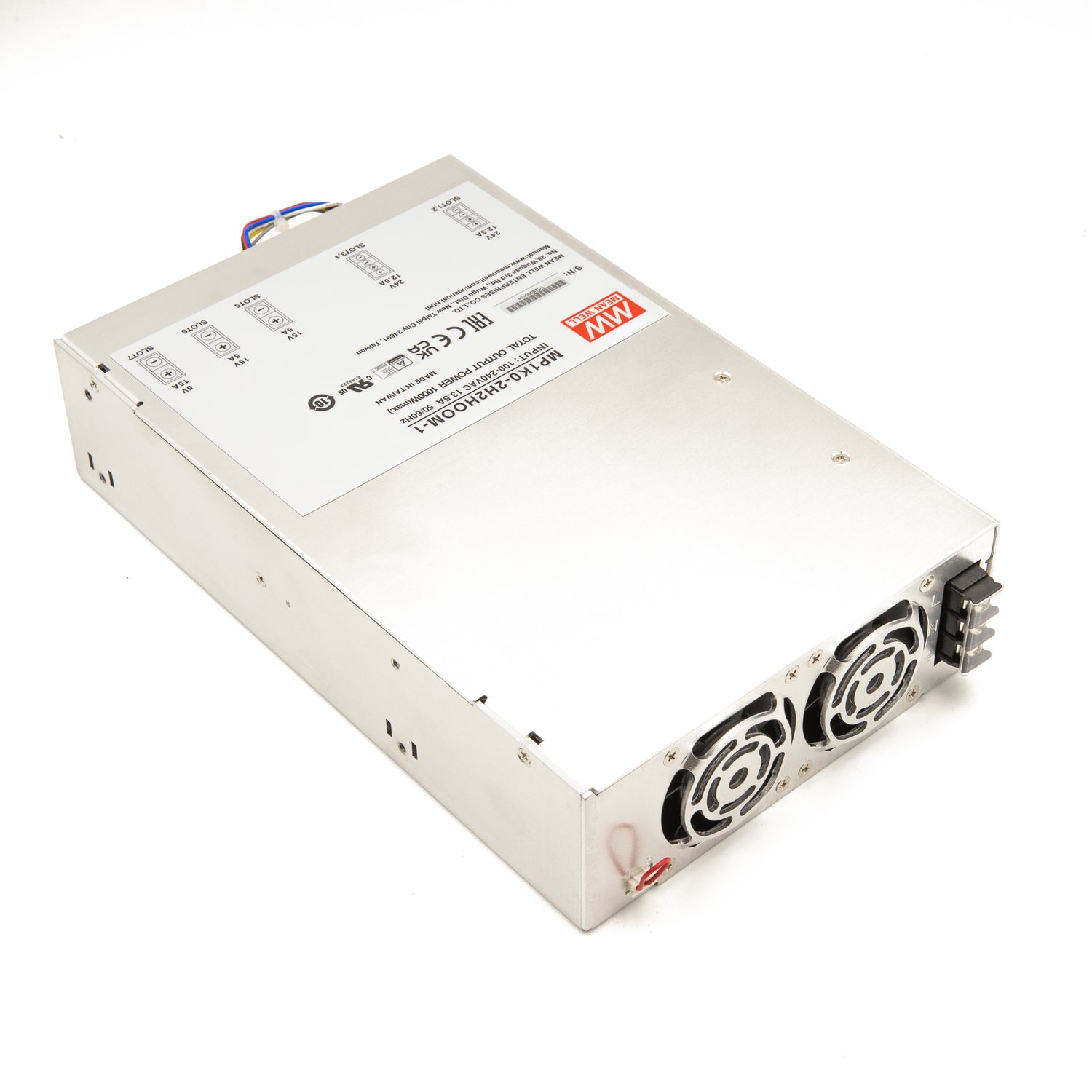

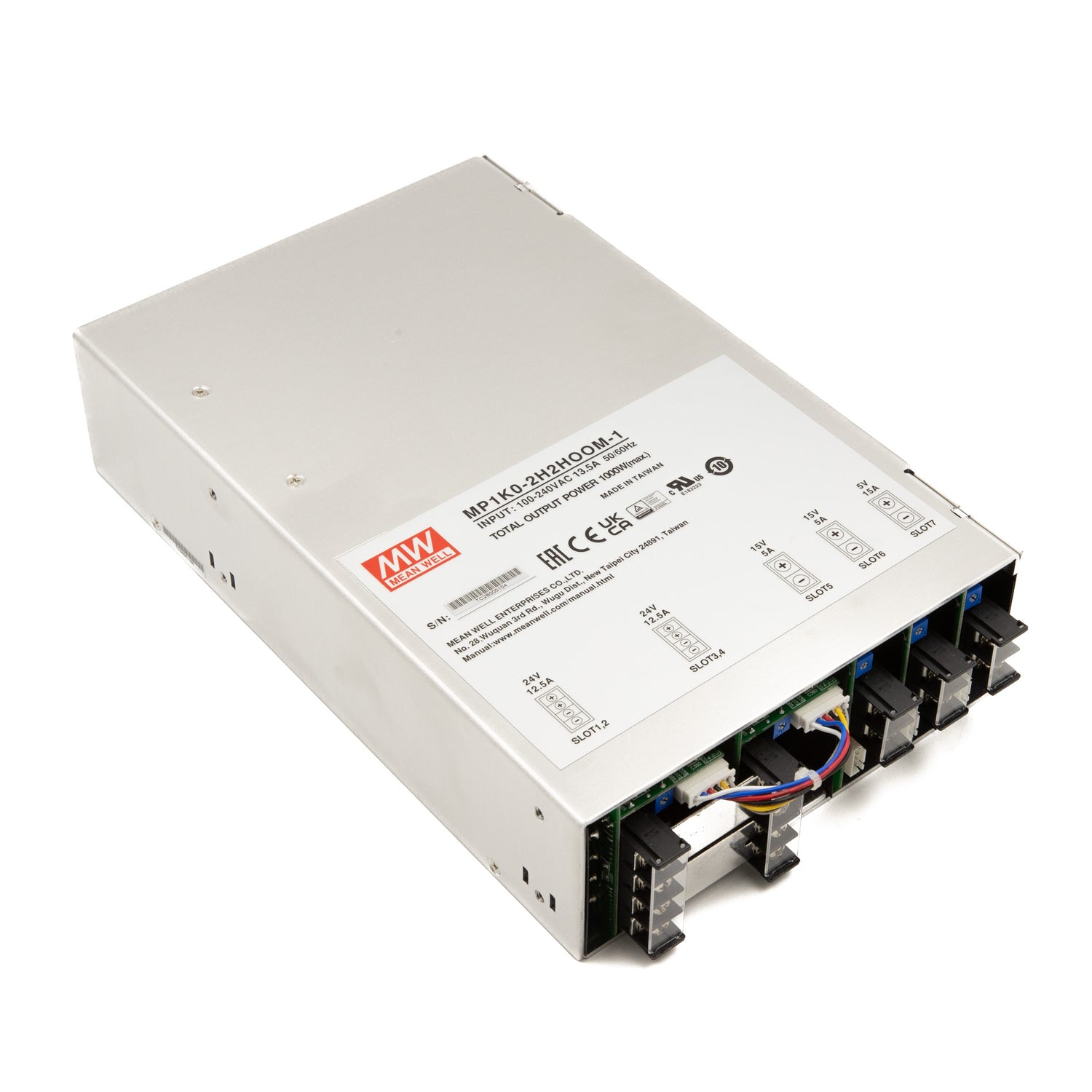

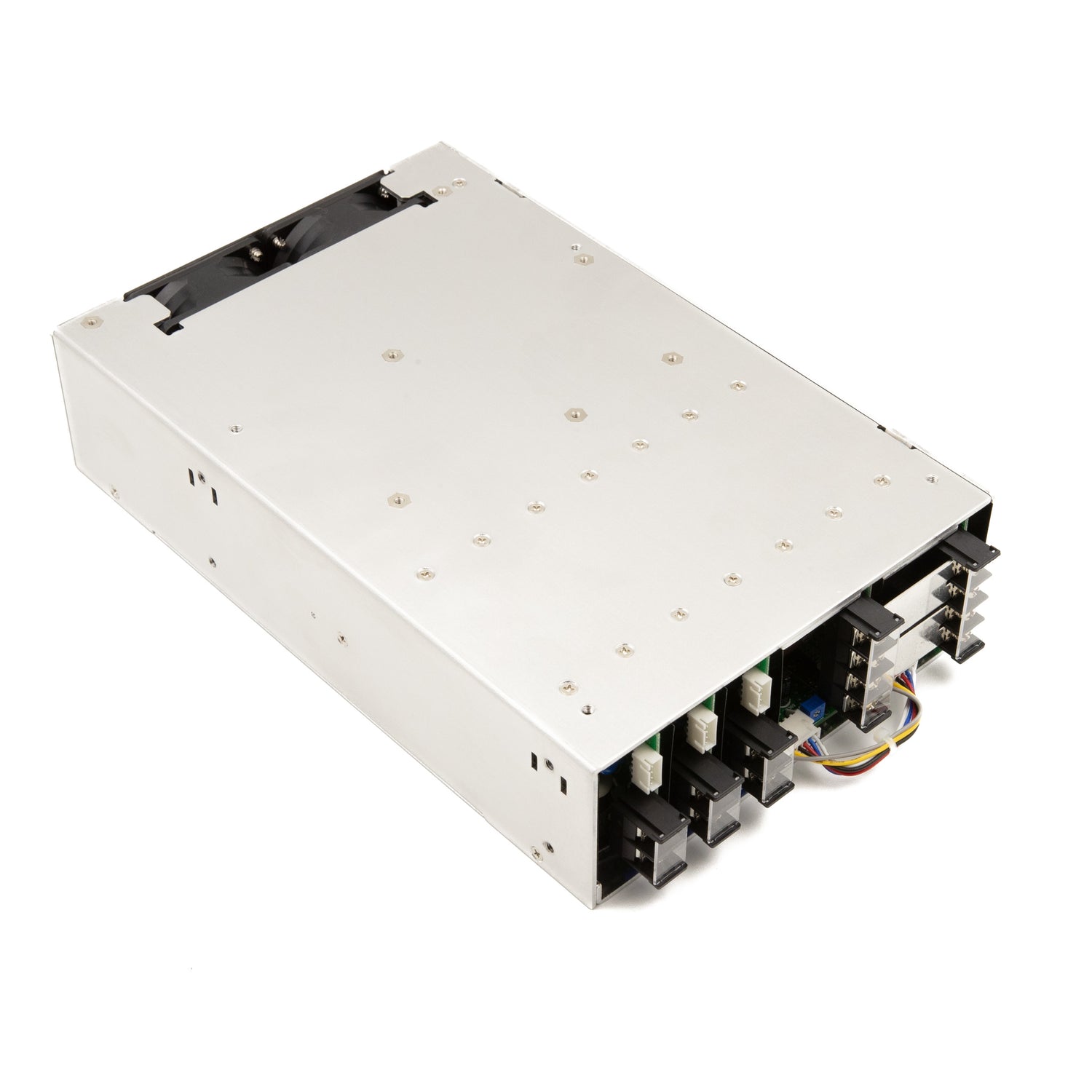

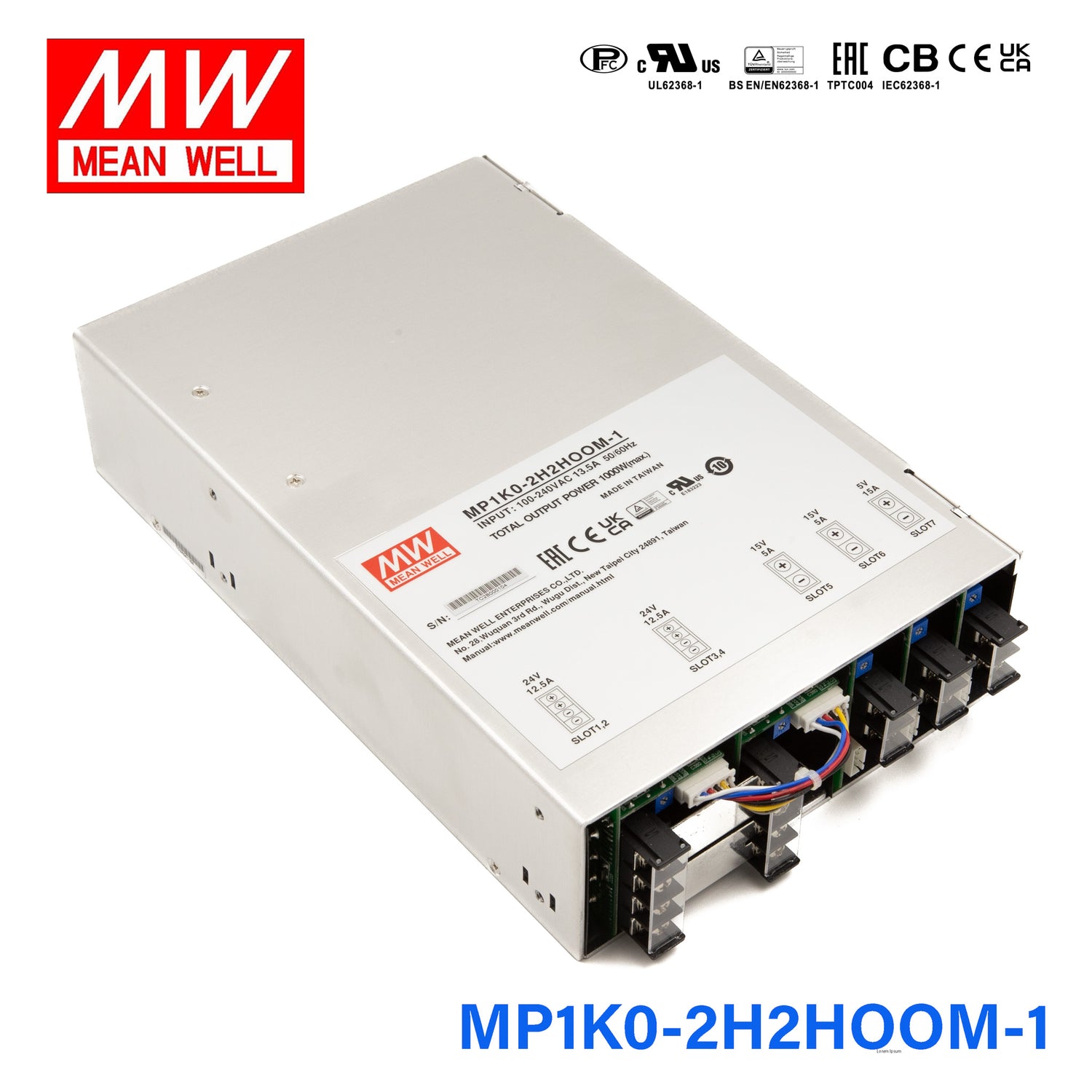

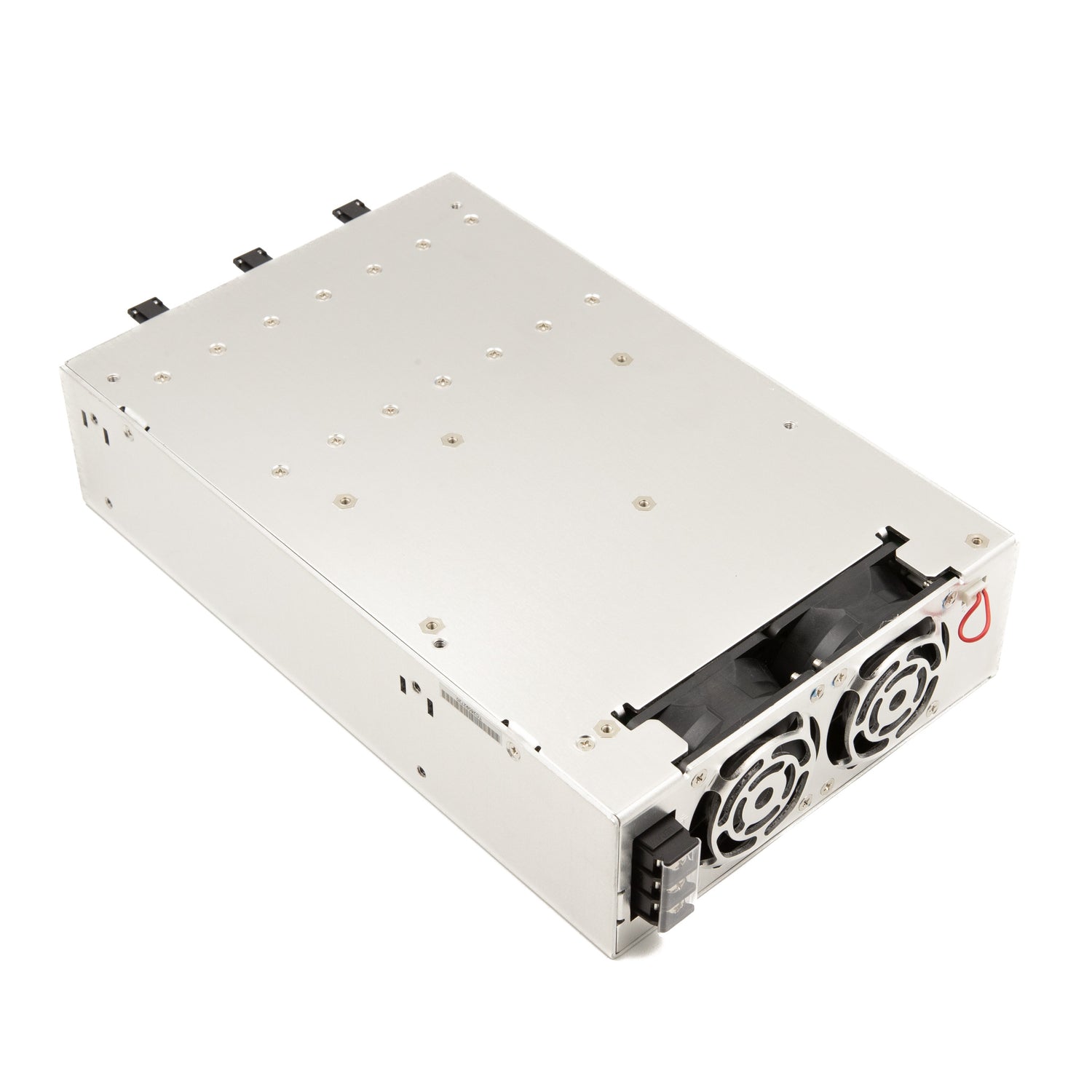

Mean Well MP1K0-2H2HOOM-1 Modular Power Supply, 1KW, 7 Slot Output, 24V * 4, 15V * 2, 5V * 1

$355.00 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Various output configuration is selectable
Built-in activa PFC function, PF>0.95
Universal AC input/full range
Remote Control on every individual output modules
Protections: Short circuit/Overload/Over voltage for all output modules
Additional 12V/0.1 auxiliary output for remote control
3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    MP Series
  • Power Rating
    1000 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    12.5 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    10.94 in
  • Width
    7 in
  • Height
    2.5 in
  • Weight
    6.61 lb

File Downloads
