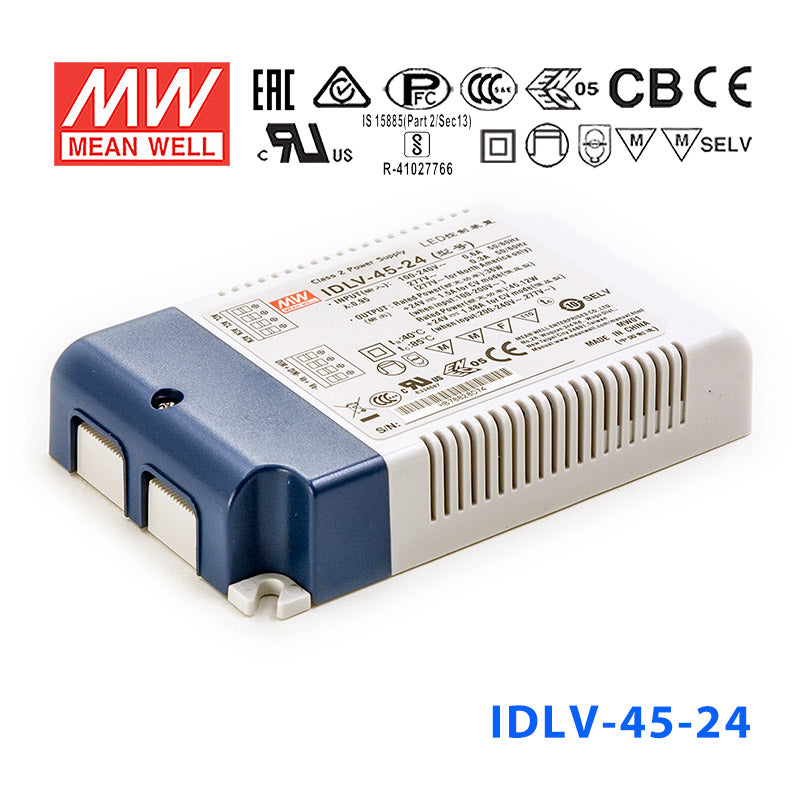

Mean Well IDLV-45-24 Power Supply 45W 24V, Dimmable
$23.69 USD
Unit price /
Unavailable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | UL8750,CSA C22.2 NO.250.13-12; BS EN/EN 61347-1 & BS EN/EN 61347-2-13 independent, BS EN/EN62384,BIS IS15885(for IDLV-45-12,24,48 only), EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 120*75*25mm |
| Packing | 0.22Kg;54pcs/13Kg/ 0.93CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLV Series
-
Power Rating45.12 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.72 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.49 lb
