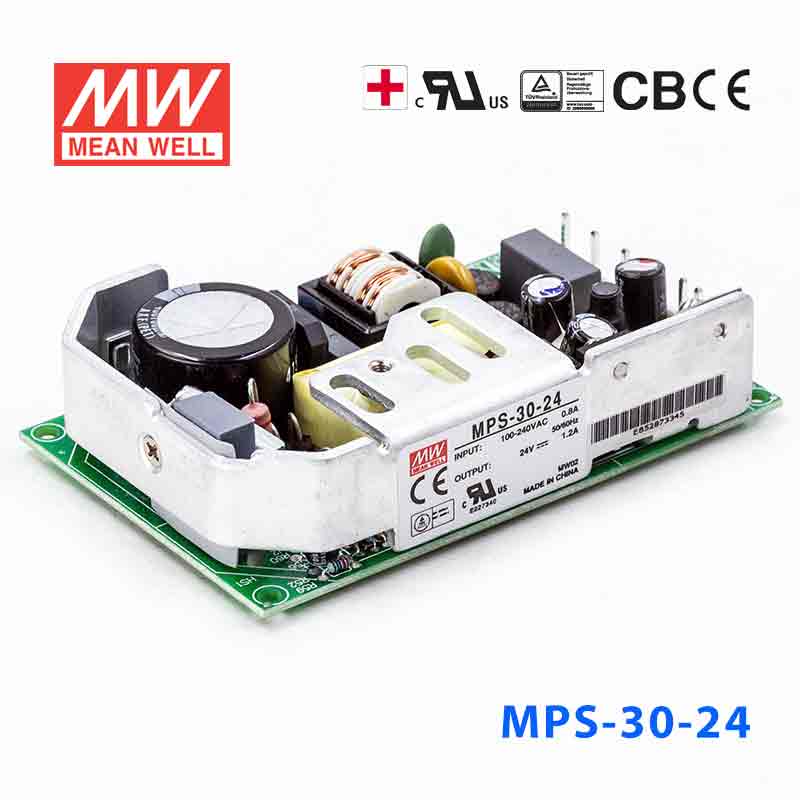

MEAN WELL MPS-30 Series Power Supplies are 30W singlel output medical type power supplies low cost ,high reliability with 3 years warranty.
Features
- Universal AC input / Full range
- Low leakage current <200pA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Medical safety approved (2 x MOPP between primary to secondary)
- Fixed switching frequency at 100KHz
- Low cost
- High reliability
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating28.8 Watt
-
Output Voltage24 Volt
-
Rated Current1.2 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length4 in
-
Width2.59 in
-
Height0.93 in
-
Weight0.35 lb
