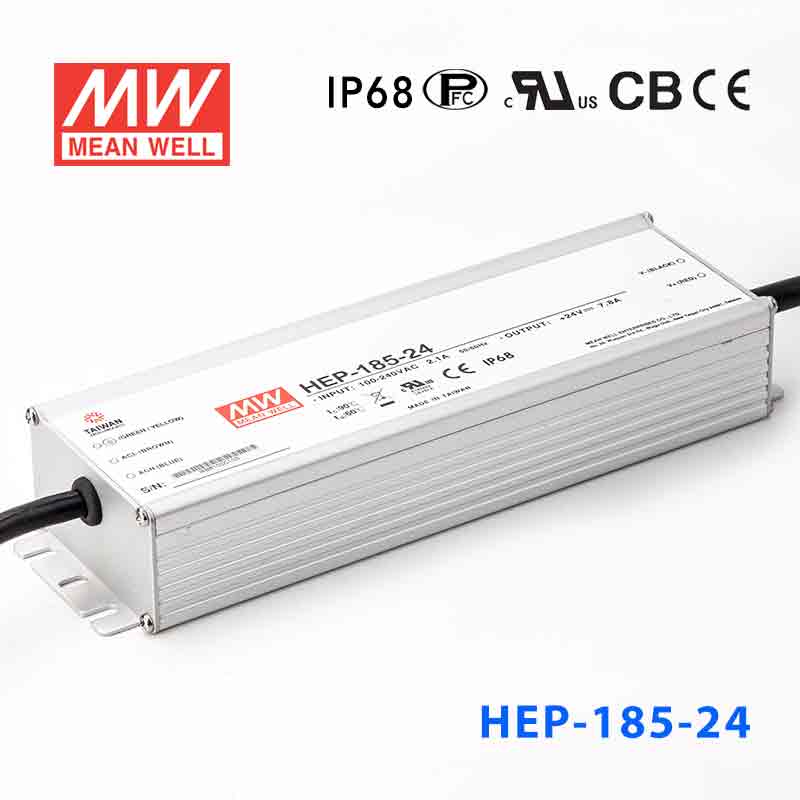

Mean Well HEP-185-24A Power Supply 187.2W 24V
$100.21 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 94% |
| Built-in active PFC function |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP65 design, optional IP68 rated model available |
| Cooling by free air convection |
| Meet 6KV surge immunity level |
| Aluminum case and filling with heat-conducted glue |
| Withstand 10G vibration test |
| Operating altitude up to 5000 meters |
| 6 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| DC adjustment range | -10%~+10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 105%~125% constant current limiting, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 50ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC |
| Working temperature | -55~+70ºC (refer to output derating curve) |
| Safety standards | UL62368-1, IEC62368-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EAC TP TC 020 |
| Connection Input | SJTW 18AWGx3C(30cm) |
| Connection Output | SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 228x 68 x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating187.2 Watt
-
Output Voltage24 Volt
-
Rated Current7.8 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
