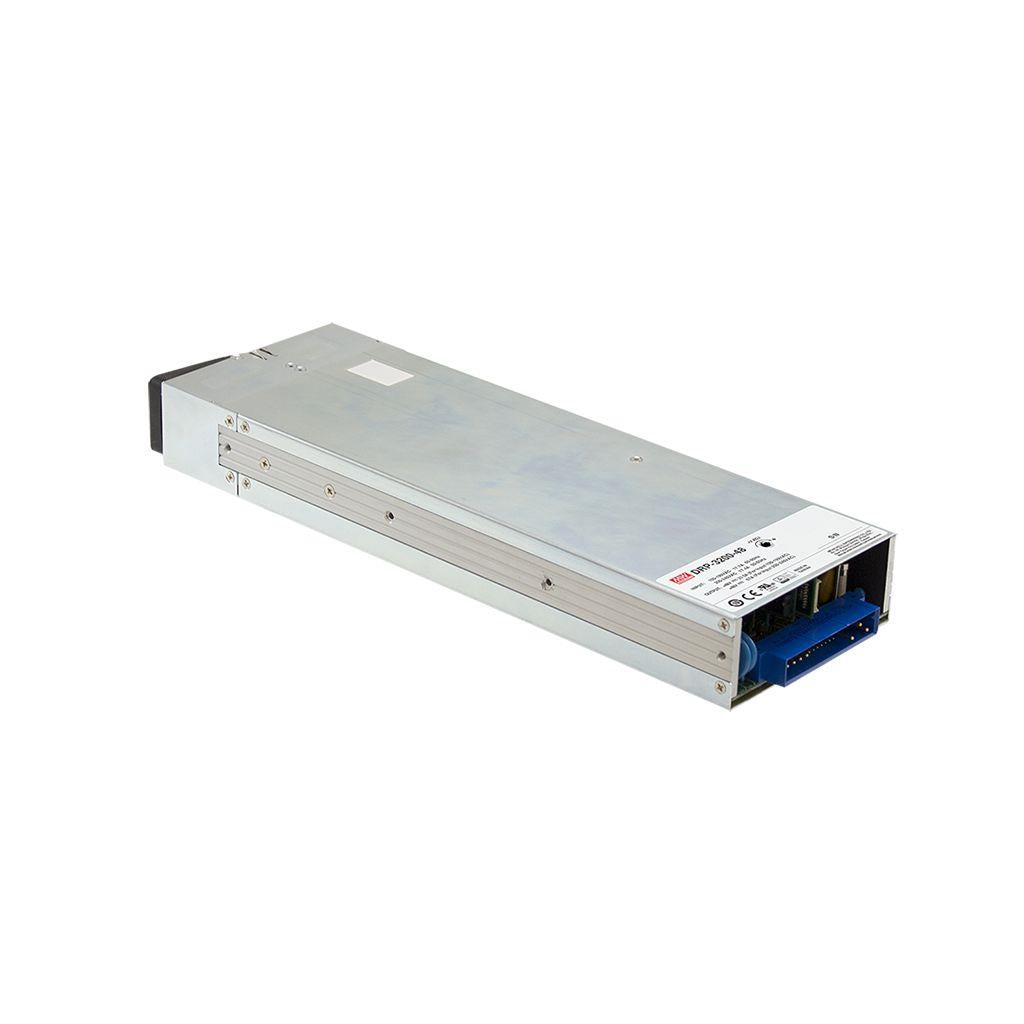

Mean Well DRP-3200-24 Power Supply 3200W 24V 133A

Name: Mean Well DRP-3200-24 Power Supply 3200W 24V 133A
Brand: Mean Well
SKU: DRP-3200-24
Price: 835.24 USD
Availability: InStock

high efficiency up to 94.5%built-in OR-ing FETsupport hot swapactive current sharing up to 12800W for one 19" rack shelf

SKU DRP-3200-24

$835.24 USD

Shipping calculated at checkout.

Available to order

Overview

DRP-3200-24 is the 24V output model of this series: rated current 133A, rated power 3192W, typical efficiency 93.5%. Type Blank: PMBus protocol.

DRP-3200 is a 3.2KW single output rack mountable front end AC/DC power supply with 1U low profile and high power density up to 37W/inch 3 . This series operates at 90~264VAC input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the built-in DC fan with fan speed control and working for the temperature up to 70℃. DRP-3200 provides vast design flexibility by equipping various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 25600W via two 19” rack shelves, DHP-1UT), remote ON/OFF control, auxiliary power, alarm signal, and etc. Maximum number that can be monitored by master controller in communication shall be 8 power supplies.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 12800W for one 19” rack shelf
Built-in I2C interface, support PMBus protocol (Optional CANBus protocol)
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

DRP-3200-24Specifications from the official datasheet (2024-09-04 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 133A
CURRENT RANGE: 0 ~ 133A
RATED POWER: 3192W
RIPPLE & NOISE (max.)^Note.2,3: 300mVp-p
VOLTAGE ADJ. RANGE: 23.5 ~ 30V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms / 230VAC at 75% load 9ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.)^Note.6: 93.5%
AC CURRENT (Typ.)^Note.5: 17A/230VAC
INRUSH CURRENT (Typ.): COLD START 55A/230VAC
LEAKAGE CURRENT: <1.5mA / 230VAC

PROTECTION

OVERLOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
OVER VOLTAGE: 31.5 ~ 37.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage Please refer to the Function Manual in following pages
CONSTANT CURRENT LEVEL PROGRAMMABLE(PC): Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual in following pages
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages
AUXILIARY POWER: 5V @ 0.3A, tolerance ±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance ±10%, ripple 450mVp-p
ALARM SIGNAL: Isolated TTL signal output for T-Alarm, AC-OK and DC-OK. Please refer to the Function Manual in following pages

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note 9}: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 535.5K hrs min. Telcordia SR-332 (Bellcore) ; 44.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 325*107*41mm (L*W*H)
PACKING: 2.65Kg;4pcs/11.6Kg/0.87CUFT

MODEL ENCODING

Blank (this model): PMBus protocol
CAN: CANBus protocol

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under variable load application or parallel operation ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the output load is more than 5%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The efficiency is measured at 75% load.
7. If use PV signal to adjust Vo, under certain operating conditions, ripple noise of Vo might slightly go over rating defined in this specification.
8. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

DRP-3200-24 BLOCK DIAGRAM — BLOCK DIAGRAM

DRP-3200-24 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

DRP-3200-24 DERATING CURVE — DERATING CURVE

DRP-3200-24 FUNCTION MANUAL — FUNCTION MANUAL

DRP-3200-24 D R P - 3 2 0 0 series (2) — D R P - 3 2 0 0 series (2)

DRP-3200-24 OUTPUTCURRENT(%) — OUTPUTCURRENT(%)

DRP-3200-24 4. Remote ON-OFF Control — 4. Remote ON-OFF Control

DRP-3200-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Datasheet1

DRP-3200-24 datasheetDRP-3200-SPEC.PDF · 2024-09-04 edition PDF Download

Certificates8

Mean Well E183223 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-CB(UL)-3nd Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-CB-(UL)-2nd Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-TUV-3nd Certificate PDF Download

Mean Well DPU-DRP-DBU-DBR-3200-DHP-12K1UT-CB Certificate PDF Download

Mean Well DRP-DBR-3200-CE-dec Certificate PDF Download

Mean Well DRP-DBR-3200-UK-dec Certificate PDF Download

Test reports1

Mean Well DRP-3200-24 Test Report PDF Download

FAQ

Can I use the DRP-3200-24 for a high-current 24V industrial control cabinet?

Yes. It is a constant voltage 24V power supply rated for 3192W and 133A, which fits large 24V industrial control, automation, and DC distribution loads. The -30°C to +70°C operating temperature range (with derating per the derating curve) also suits demanding indoor industrial environments.

Is the DRP-3200-24 suitable for 24V automation and PLC systems with heavy DC loads?

It can be a fit when the system requires a regulated 24V constant voltage source with very high available current. With 133A output current and 3192W total power, it is aimed at larger 24V automation loads rather than lighter-duty supplies.

Can this power supply support a rack-based 24V industrial or embedded platform?

Yes. The DRP-3200-24 is a rack mountable front end rectifier with a built-in ORing FET and DA/DB signals for parallel control. Its 325 x 107 x 41 mm size and 2.65 kg weight also align with high-power rack deployments.

Is the DRP-3200-24 appropriate for indoor or outdoor use?

The published data includes an operating temperature range of -30°C to +70°C, which supports use in a wide range of ambient conditions. However, no IP rating is listed in the provided specs, so outdoor or washdown suitability is not confirmed from this data alone.

How does the DRP-3200-24 compare with other DRP series models?

Within the DRP-3200 series, the DRP-3200-24 is 3192W at 24V and 133A with 93.5% typical efficiency, while the DRP-3200-48 is 3216W at 48V and 67A with 94.5% typical efficiency. Both share the same 90-264VAC input, PMBus interface, and 325 x 107 x 41 mm case.
