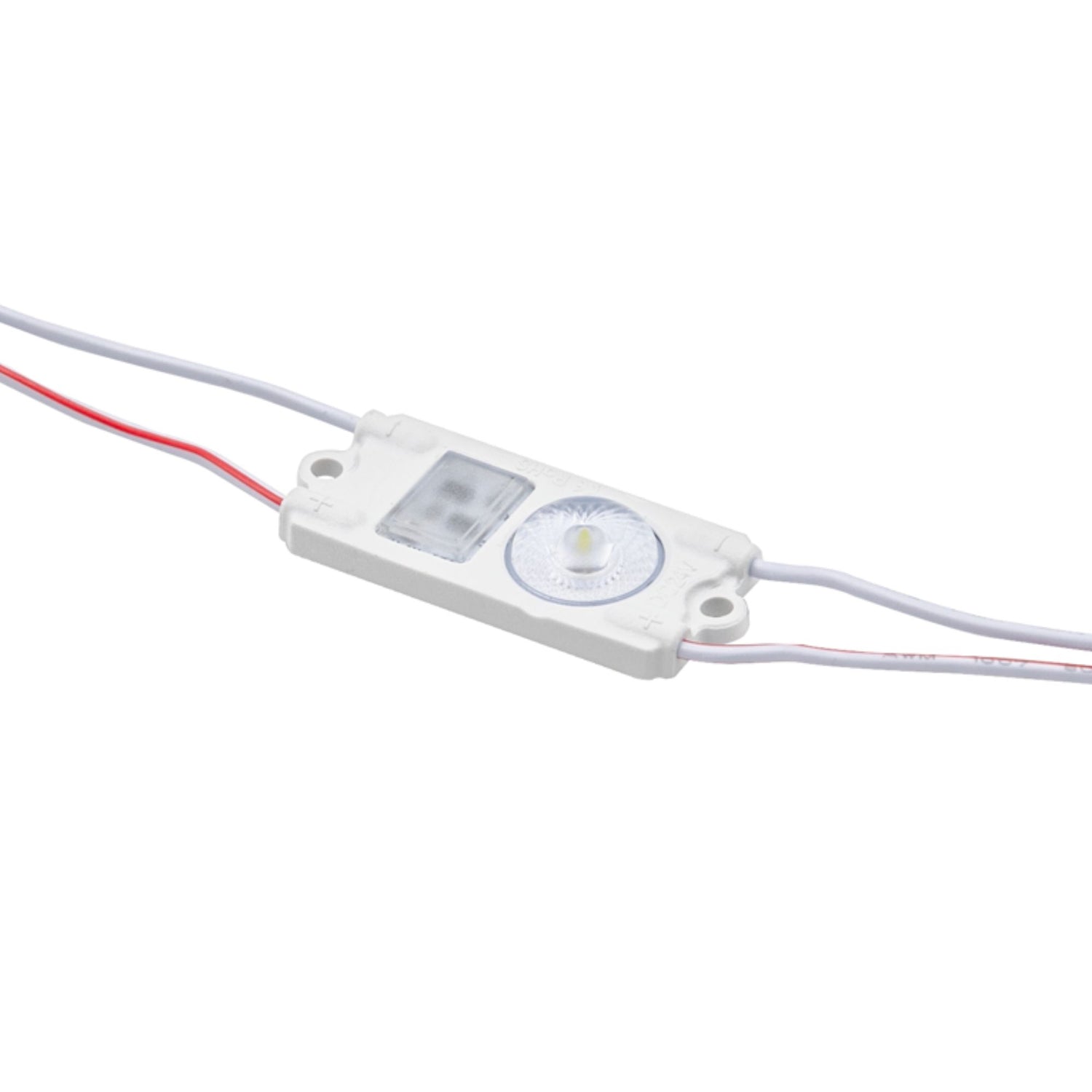

ENVO HydroLume LED Module Backlit - Single LED

Name: ENVO HydroLume LED Module Backlit - Single LED
Brand: Envo
SKU: EV-BLHL01SS-CW
Price: 0.39 USD
Availability: InStock

$0.39 USD

Shipping calculated at checkout.

LED Colour

Cool White 6500K

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO HydroLume Backlit Single LED module is a high-output 24V backlighting module engineered for large-format channel letters and deep backlit sign cabinets demanding elevated lumen output per module. Powered by a Philips LED chip, it delivers a wide 180° beam for bright, uniform illumination across deep sign cavities, making it effective in installations where lower-wattage modules would require denser string layouts to achieve the same face brightness. Running on a 24V DC constant voltage supply and fully dimmable, it carries IP67 ingress protection for exposed outdoor sign installations, backed by CB, CE, cUL, RoHS, TÜV, and UL certifications.

Key Features

✓ Input voltage: 24V DC
✓ Power: 0.48W per module
✓ Beam angle: 180°
✓ Module dimensions: 42 × 20 × 7 mm
✓ Max modules per series: 80
✓ Rated current: 0.02A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −40°C to +70°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
✓ 7 year warranty

Specifications

Brand

Envo
Operating Temperature

-40°C~70°C
Length

1.65 in
Width

0.79 in
Height

0.28 in

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":10218045178176, "variants" :[{ "context":"default", "variant_id": 52881672208704, "sku":"EV-BLHL01SS-CW", "inventory_qty" : 0, "customer" : true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$0.39\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e\n", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage: 24V DC

✓ Power: 0.48W per module

✓ Beam angle: 180°

✓ Module dimensions: 42 × 20 × 7 mm

✓ Max modules per series: 80

✓ Rated current: 0.02A

✓ CRI: 80

✓ Dimmable

✓ Ingress protection: IP67

✓ Operating temperature: −40°C to +70°C

✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)

✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL

✓ 7 year warranty
