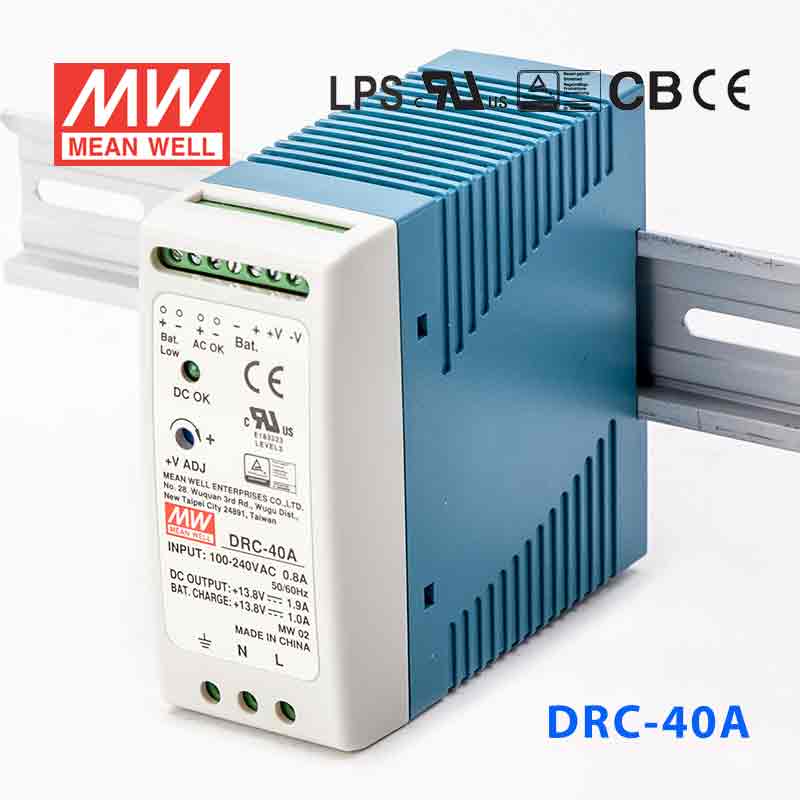

Mean Well DRC-40A Power Supply 40.02W 13.8V 1.9A
Overview
DRC-40A is the CH1: 13.8V / CH2: 13.8V output model of this series: rated current CH1: 1.9A / CH2: 1A, rated power 40.02W, typical efficiency 86%.
DRC-40 is a 40W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-40 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 87%, it can operate with air convection cooling under -30℃ through 70℃. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via TTL open collector output for the standard model ( via relay contact output as the optional model), to facilitate the system design.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protection / Battery reverse polarity protection by fuse
- Can be installed on DIN rail TS-35/7.5 or 15
- Alarm signal for AC OK and Battery low (via TTL open collector, optional via relay)
- Cooling by free air convection
- Pass LPS
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- CH1: 13.8V / CH2: 13.8V
- RATED CURRENT
- CH1: 1.9A / CH2: 1A
- CURRENT RANGE
- CH1: 0 ~ 2.9A / CH2: --------
- RATED POWER
- 40.02W
- RIPPLE & NOISE (max.)Note.2
- CH1: 120mVp-p / CH2: --------
- VOLTAGE ADJ. RANGE
- CH1:12 ~ 15V
- VOLTAGE TOLERANCENote.3
- CH1: ±1.0% / CH2: --------
- LINE REGULATION
- CH1: ±0.5% / CH2: --------
- LOAD REGULATION
- CH1: ±0.5% / CH2: --------
- SETUP, RISE TIMENote.4
- 400ms, 50ms/230VAC 800ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 10ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 86%
- AC CURRENT (Typ.)
- 0.8A/115VAC 0.6A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1:14.49 ~ 18.63V Protection type : Shut down o/p voltage, re-power on to recover
- BATTERY CUT OFF
- 10±0.5V
FUNCTION
- AC OK
- Open collector output, CONTACT : AC OK ; CUT OFF : AC Fail ; max. rating : 50V/30mA
- BATTERY LOW
- Open collector output, CUT OFF : Battery ; CONTACT : Battery Low ; max. rating : 50V/30mA; Battery low voltage : < 11V
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 55℃) on CH1 output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61204-3, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2496.2K hrs min. Telcordia SR-332 (Bellcore) ; 536.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 40*90*100mm (W*H*D)
- PACKING
- 0.3Kg; 42pcs/13.6Kg/0.82CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8.The battery voltage is lower than the CUTOFF voltage and cannot perform AC reset charging.
Technical drawings
Typical applications
- Security system
- Emergency lighting system
- Alarm system
- DC UPS system
- Central monitoring system
- Access systems
Downloads
Datasheet1
Certificates6
Test reports1
Catalogues1
FAQ
Can I use the DRC-40A for a small 13.8V PLC or relay panel load?
Yes, if the load needs 13.8V constant voltage and stays within 1.9A. The DRC-40A is rated for 40.02W, which makes it suitable for lower-power industrial control and automation loads. It is a DIN rail unit, so it aligns with panel-based applications.
Is the DRC-40A appropriate for compact embedded control systems running on 13.8V DC?
It can be, provided the system requires 13.8V constant voltage and draws no more than 1.9A. The total output rating is 40.02W. That makes it more appropriate for lighter-duty embedded or control electronics than higher-current loads.
Can the DRC-40A be used for low-power security or communications control hardware?
Yes, when the hardware is designed for 13.8V operation and its demand is within 1.9A and 40.02W. The model also includes UPS function, which can matter in backup-oriented control applications. The key requirement is matching the 13.8V constant voltage output.
Is the DRC-40A suitable for indoor panels exposed to low or high temperatures?
Its operating temperature range is -30°C to +70°C, with output derating at higher ambient temperatures per the sheet's derating curve, which supports use across a wide indoor temperature range. No IP rating is listed in the provided specs. That means the product data does not confirm suitability for exposed outdoor or wet environments.
How does the DRC-40A differ from the other DRC series options?
The DRC-40A is the 13.8V, 1.9A, 40.02W version in the DRC-40 series. Its sibling, the DRC-40B, delivers 27.6V at 0.95A with the same 40.02W rating, for 24V battery backup systems instead of 12V ones.
