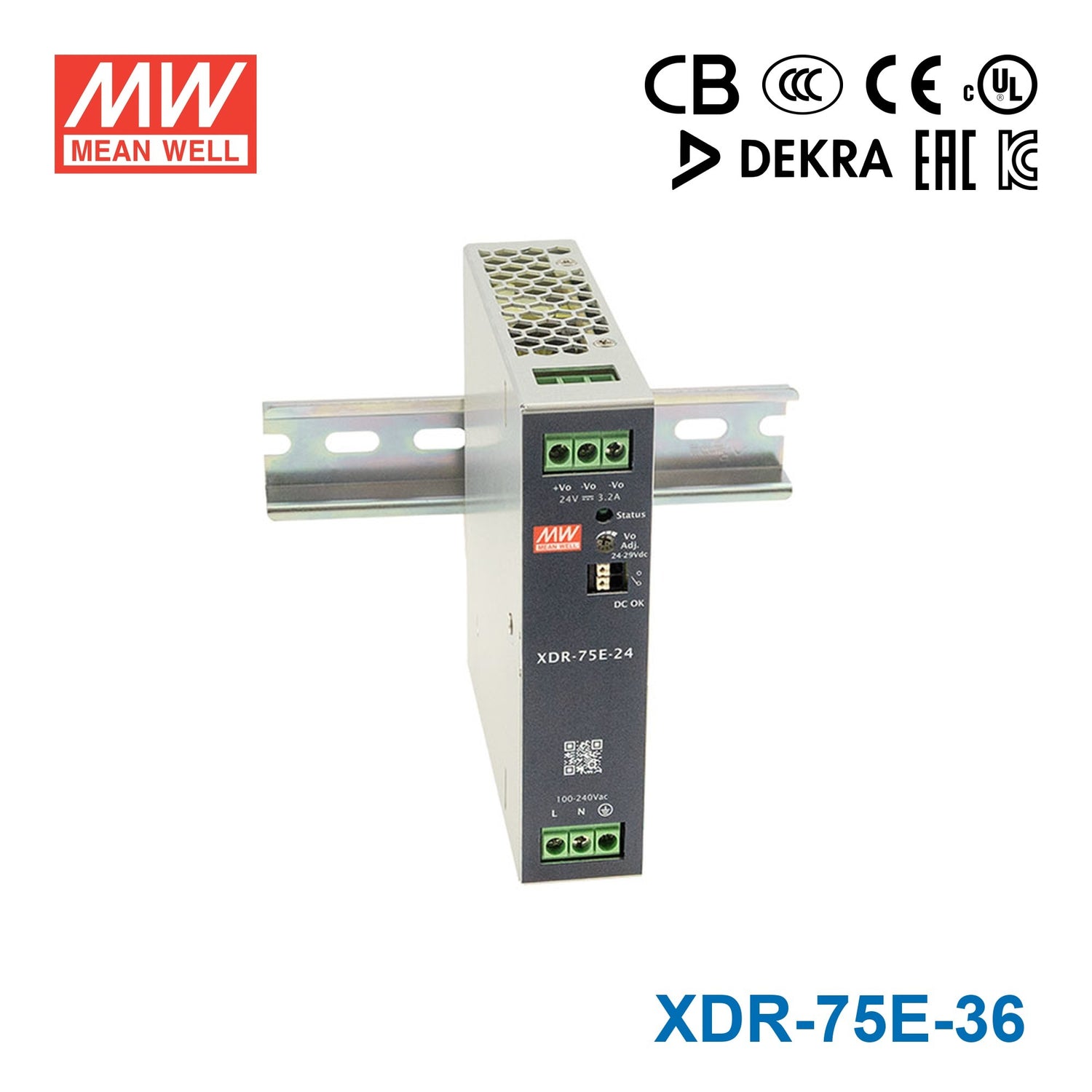

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well XDR-75E-36 Economical Ultra Slim Din Rail Power Supply 75...
$25.17 USD
Unit price /
Unavailable
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in [constant current limiting circuit](constant current limiting circuit)
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.88 lb
