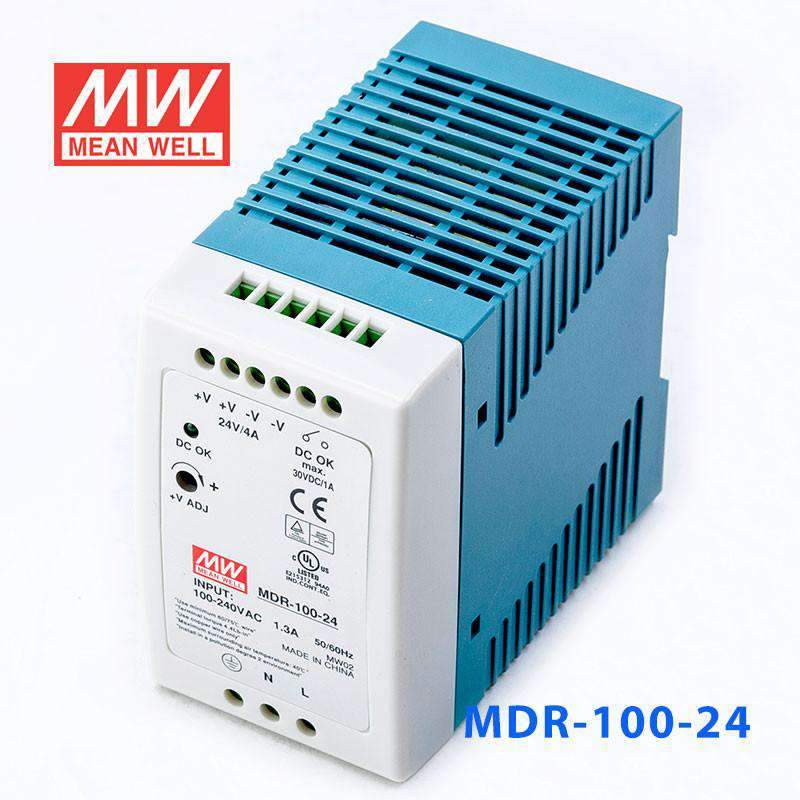

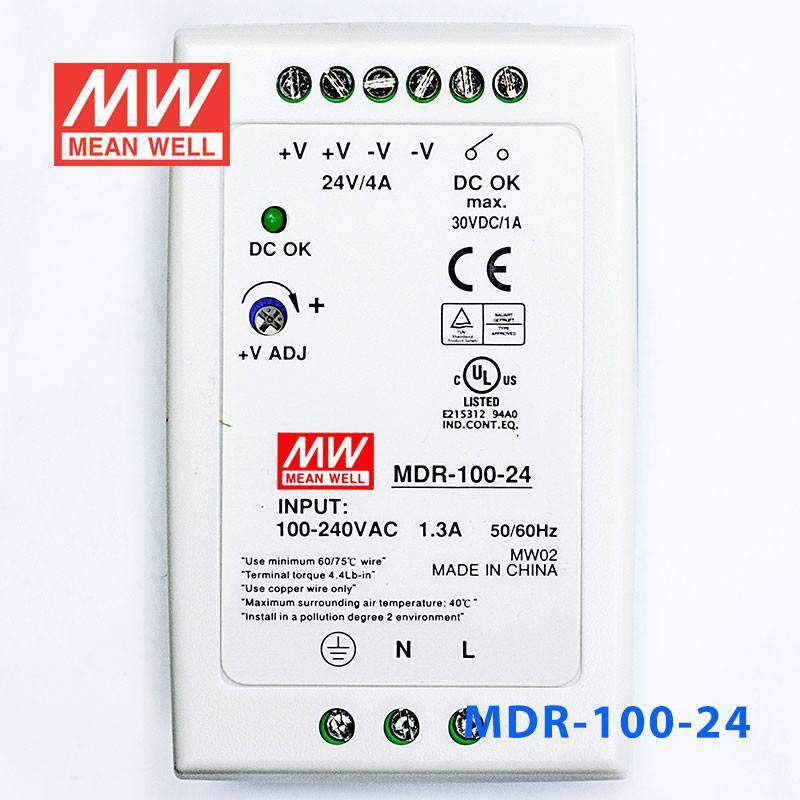

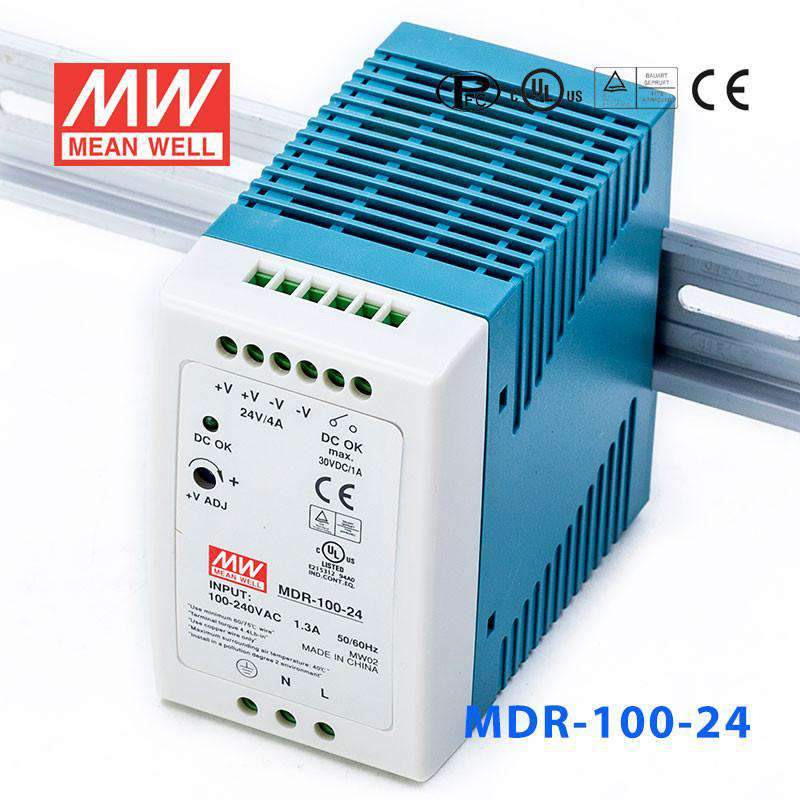

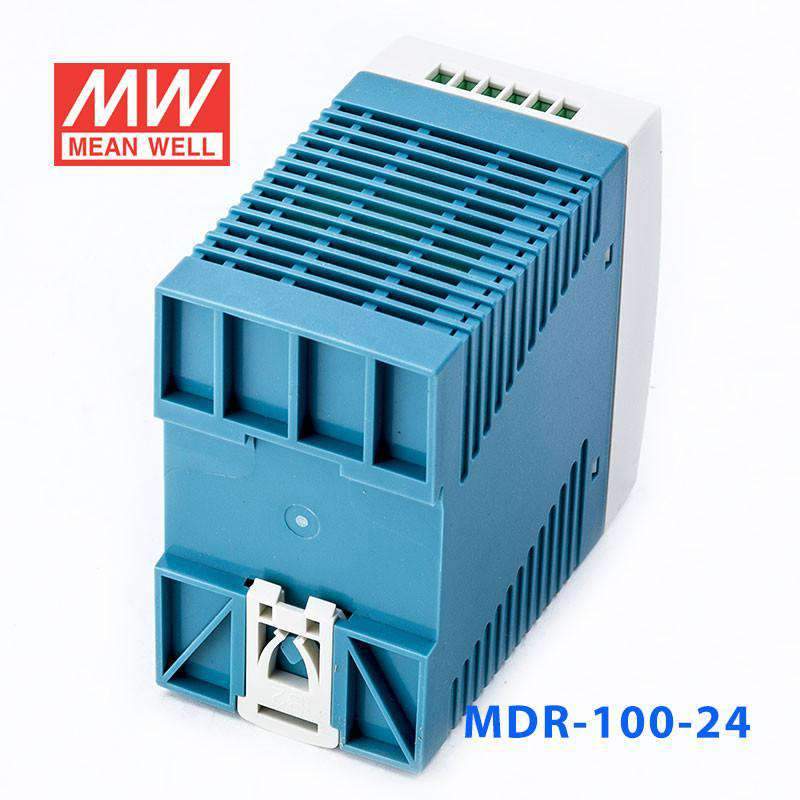

Mean Well MDR-100-24 Single Output Industrial Power Supply 100W 24V - DIN Rail

$44.53 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

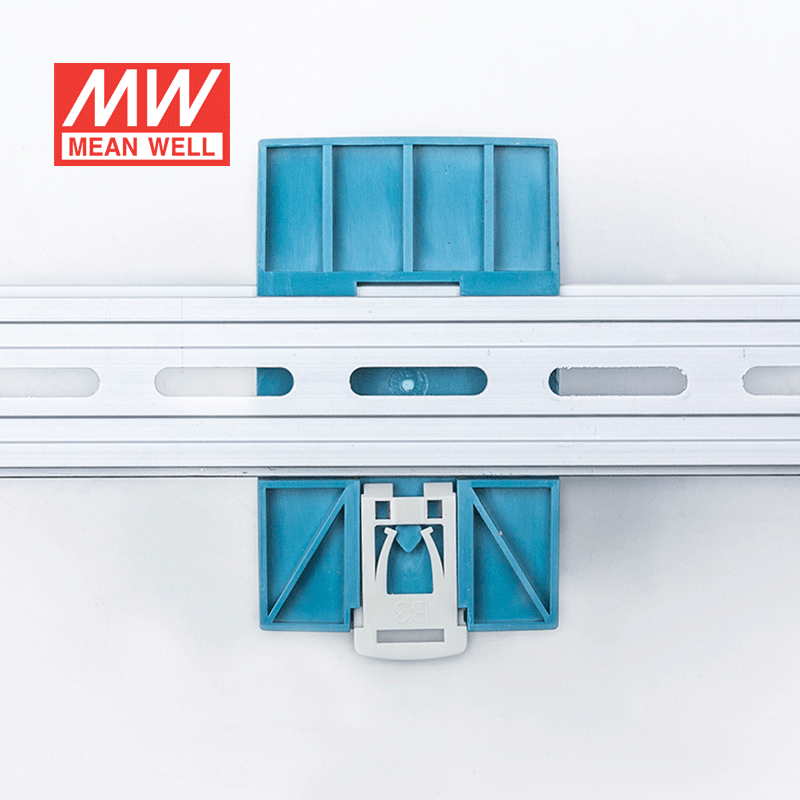

Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <1W
LED indicator for power on
DC OK relay contact
Cooling by free air convection
100% full load burn-in test
Built-in active PFC and over temp. protection
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start, 30A at 115VAC, 60A at 230VAC
DC adjustment range 0~+20% rated output voltage
Overload protection 105%~150% constant current limiting, auto-recovery
Over voltage protection 125%~150% rated output voltage
Setup, rise, hold up time 3000ms, 50ms, 50ms
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature -10~+60°C
DC OK signal Relay contact
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level
Connection IP: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (LxWxH) 55x90x100
Packing 30pcs / 13.6kg

Specifications

  • Brand
    Mean Well
  • Series
    MDR Series
  • Power Rating
    96 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CE,cUL,EAC,RCM,TUV
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    3.94 in
  • Width
    3.54 in
  • Height
    2.17 in
  • Weight
    0.93 lb
