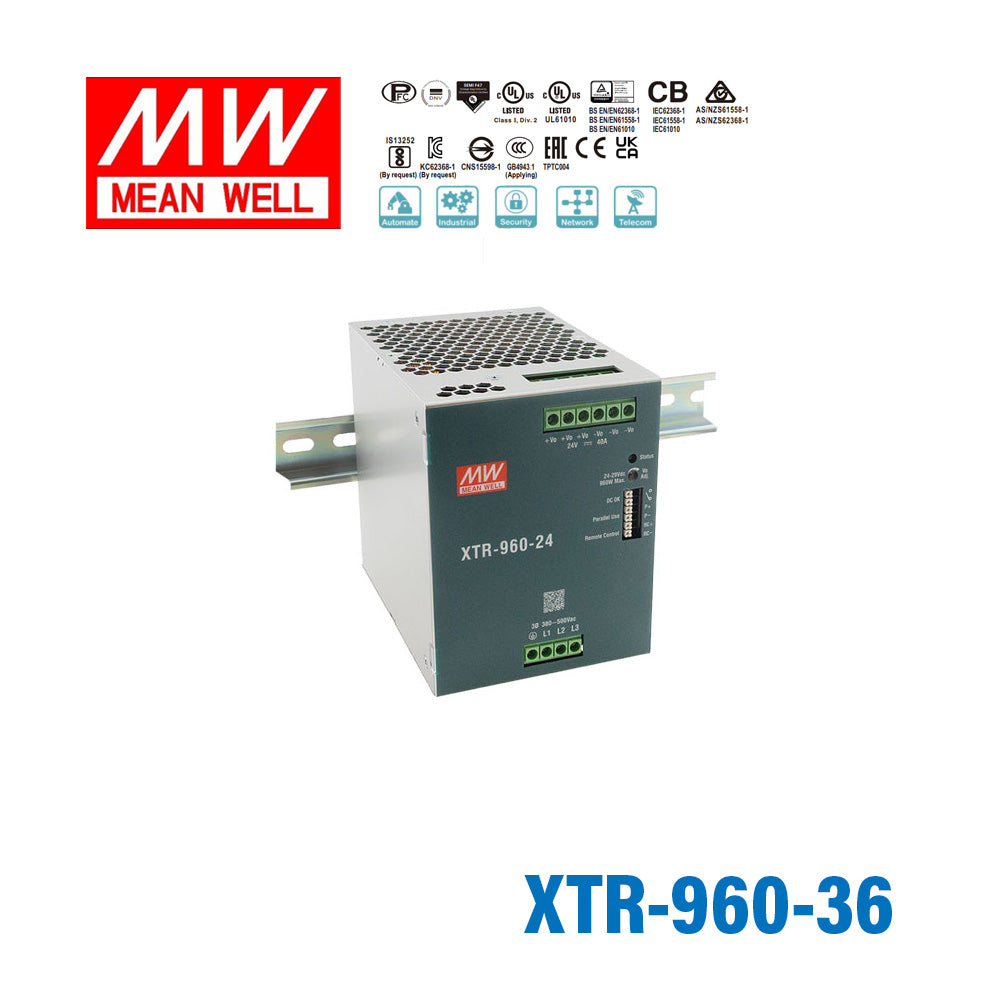

Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - S...
$228.20 USD
Unit price /
Unavailable
Description
Description
The XTR-960 is a 960W Mean Well DIN rail power supply (input: 320~600VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 320~600VAC
- ✓ Output voltage (max): 36V
- ✓ Rated output current: 26.66A
- ✓ DIN rail TS-35 mountable
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, EN, KC
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage36 Volt
-
Rated Current26.66 Ampere
-
Input Voltage320V~600V
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
-
Weight3.97 lb
