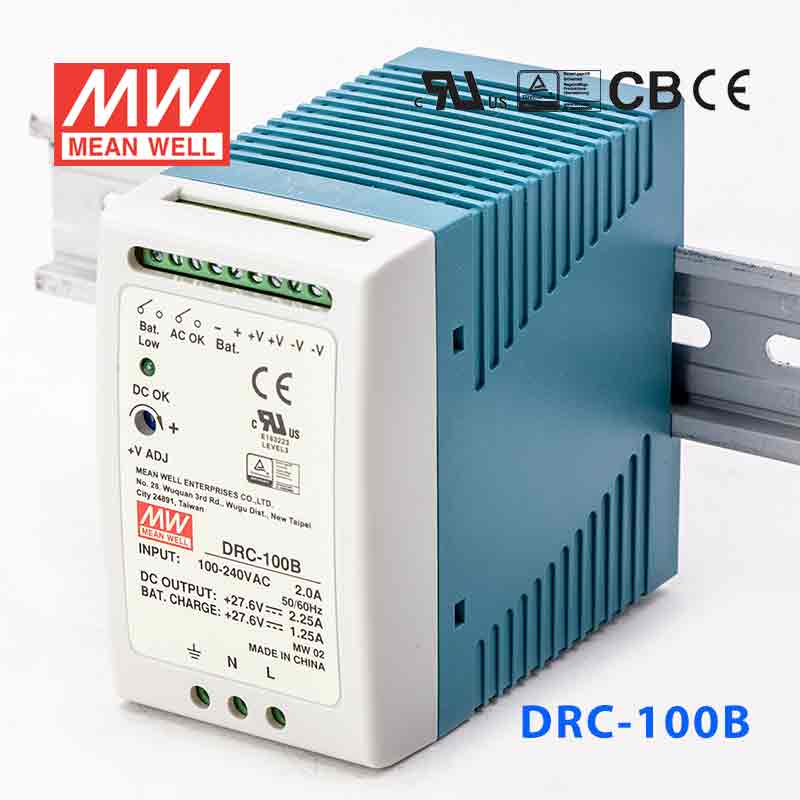

Mean Well DRC-100B Power Supply 96.6W 27.6V
$62.26 USD
Unit price /
Unavailable
Description
Description
Features
|
Universal AC input / Full range Protections: Short circuit / Overload / Over voltage |
| Battery low protection/ Battery reverse polarity protection by fuse |
| Can be installed on DIN rail TS-35/7.5 or 15 |
| Alarm signal for AC OK and Battery low(via relay) |
| Cooling by free air convection |
|
LED indicator for power on 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start 30A at 115VAC, 60A at 230VAC |
| DC adjustment range | ±8.6% rated output voltage |
| Overload protection | 105%~150% constant current limiting, auto-recovery |
| Over-voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 2400ms, 50ms, 50ms |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 3 poles, O/P: 8 poles screw DIN terminal |
| Dimension (LxWxH) | 55x90x100 |
| Packing | 30pcs / 12.1kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesDRC Series
-
Power Rating96.6 Watt
-
Output Voltage27.6 Volt
-
Rated Current2.25 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height2.17 in
-
Weight0.82 lb
