Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

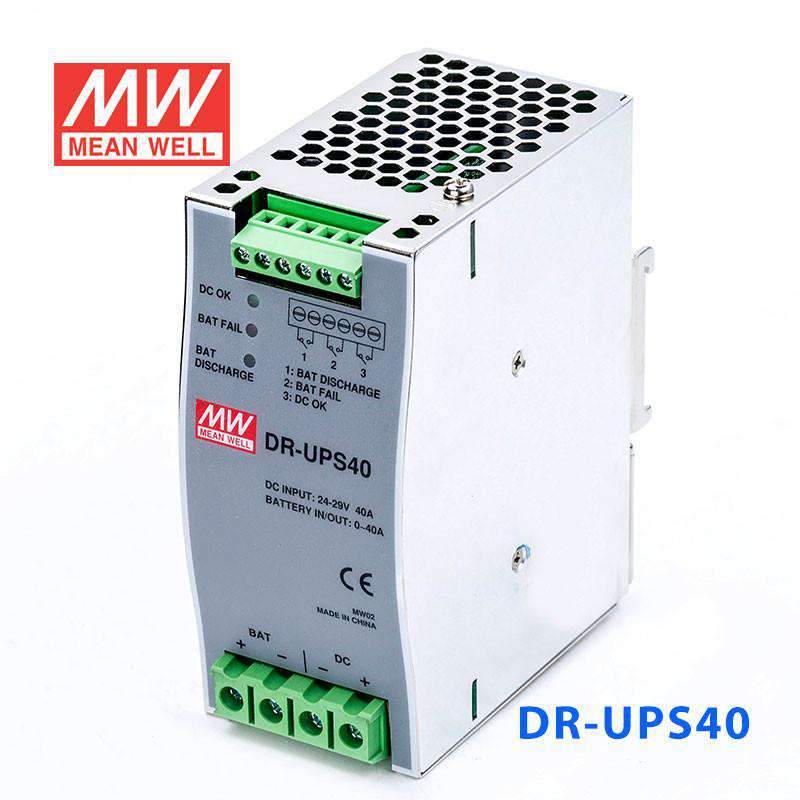

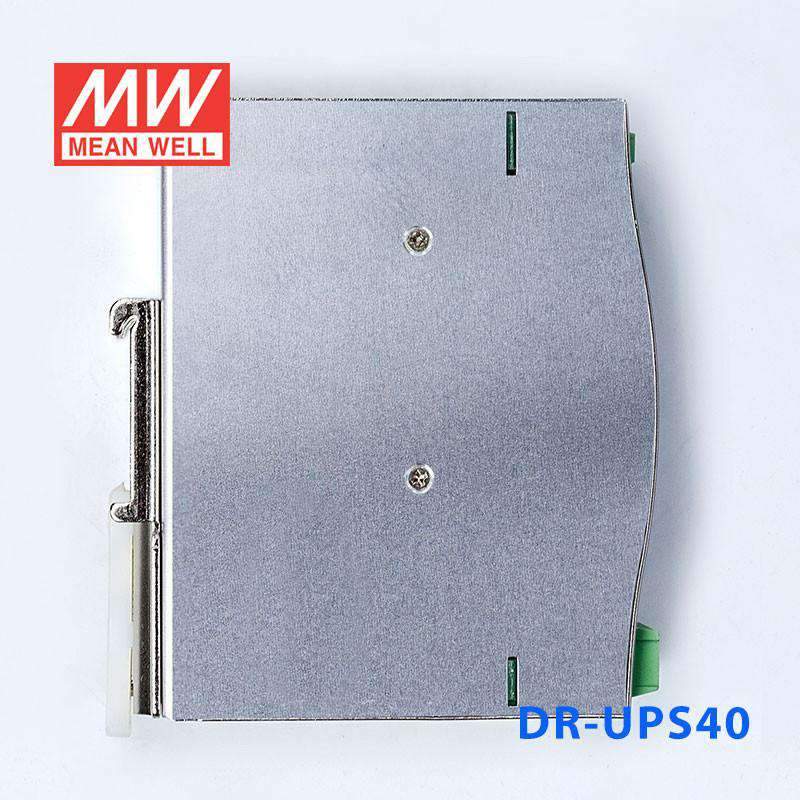

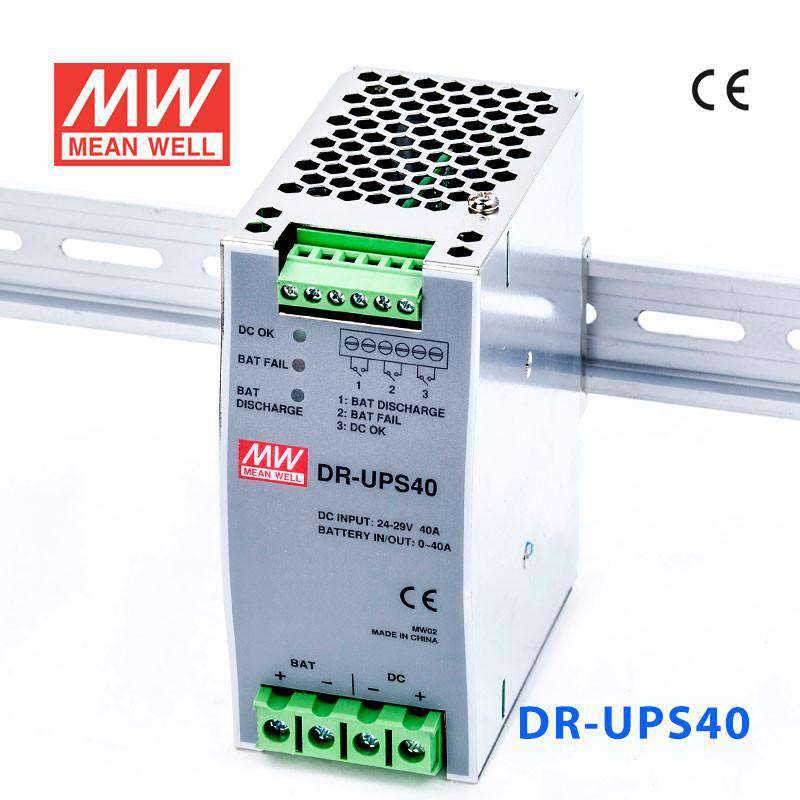

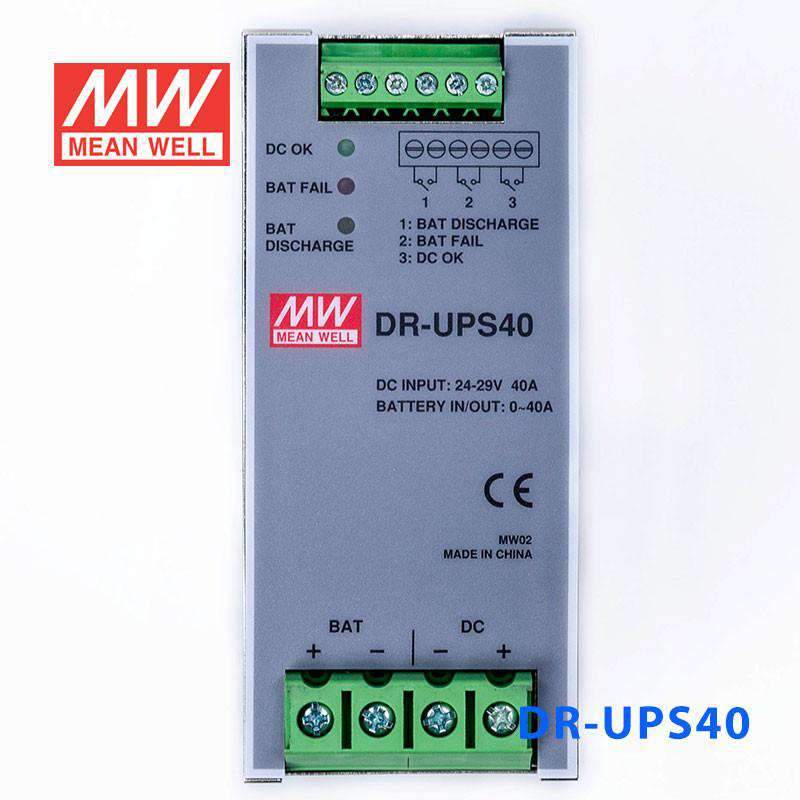

Mean Well DR-UPS40 DC UPS Module Power 40A Supply - DIN Rail
$57.47 USD
Unit price /
Unavailable
Description
Description
Features
| Battery controller for DIN rail UPS system |
| Parallel connected to DC BUS |
| Suitable for 24V system up to 40A |

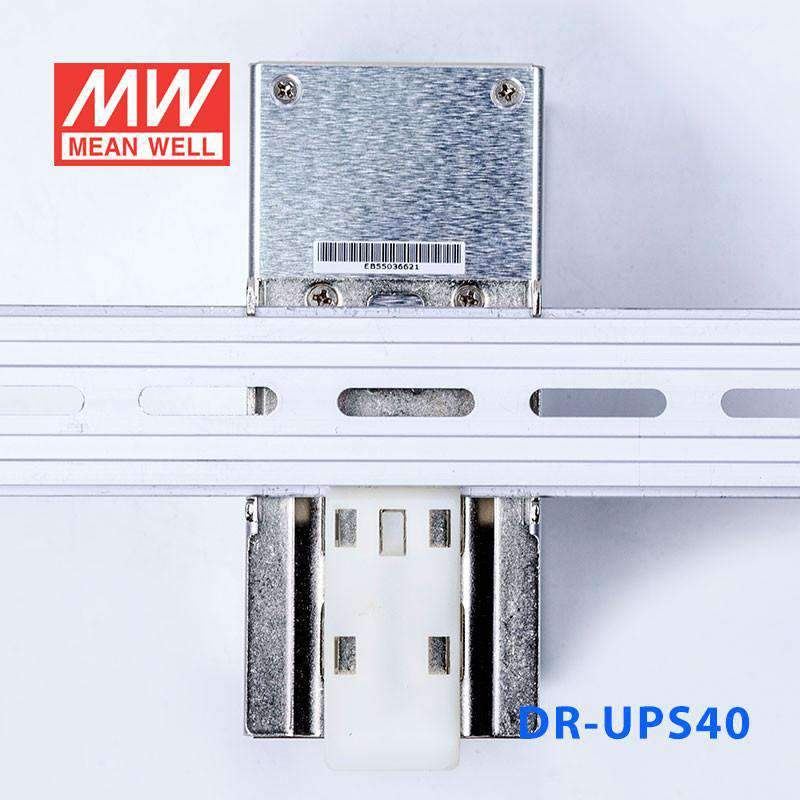

| Installed on DIN Rail TS35 / 7.5 or 15 |
| Built-in battery test function |
| Battery polarity protection |
| Relay contact signal output and LED indicator for DC BUS OK, Battery Fail, and Battery Discharge |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| DC input / DC bus | 24~29V, 40A max. |
| Battery input voltage | 21~29V |
| Battery input Current | 0~40A |
| Charge current (typ.) | 2A |
| External battery (typ.) | 24V, 4AH / 7AH / 12AH |
| DC bus ok | Relay status : Short when DC voltage between 21~29V(±3%), relay contacts LED(Green) : DC bus OK : light; DC bus fail : dark |
| Battery fail | Relay status : Short when battery failure is observed through the battery test function, relay contacts LED(Red) : Battery over-discharge warning or battery broken: light; Battery OK: dark |
| Battery discharge | Relay status : Short when battery in discharge condition, relay contacts LED(Yellow) : Battery discharging: light; Battery is not discharging or discharging current <2A: dark |
| Working temperature | -20~+70°C |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 2 poles, O/P: 2 poles screw DIN terminal, Single output: 6 poles |
| Dimension (LxWxH) | 55.5x 125.2x 100 mm |
| CASE | 923D |
Specifications
Specifications
-
BrandMean Well
-
SeriesDR-UPS
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage24V~29V
-
Standards MetCE,EAC
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width3.94 in
-
Height2.19 in
-
Weight1.21 lb
