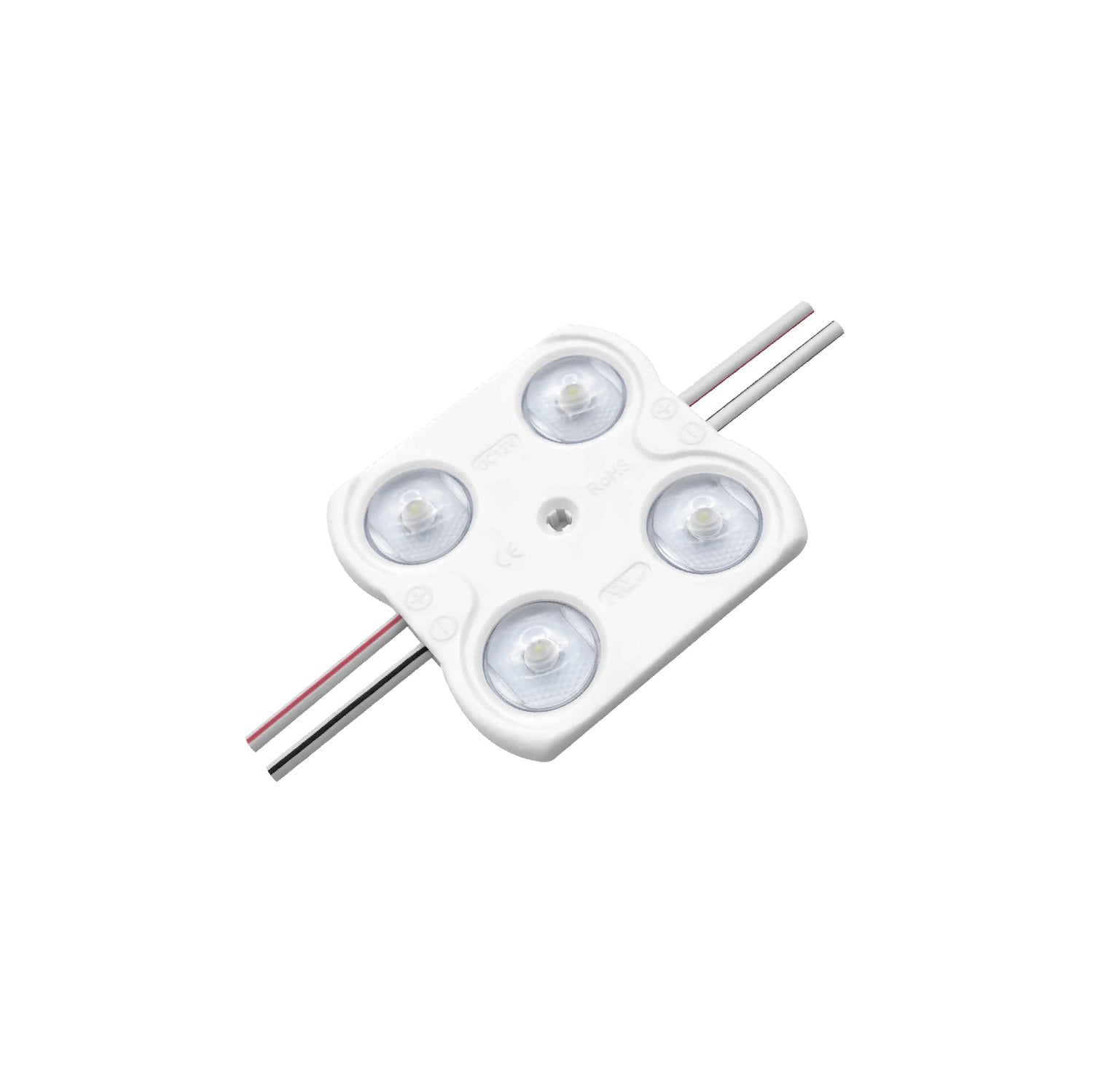

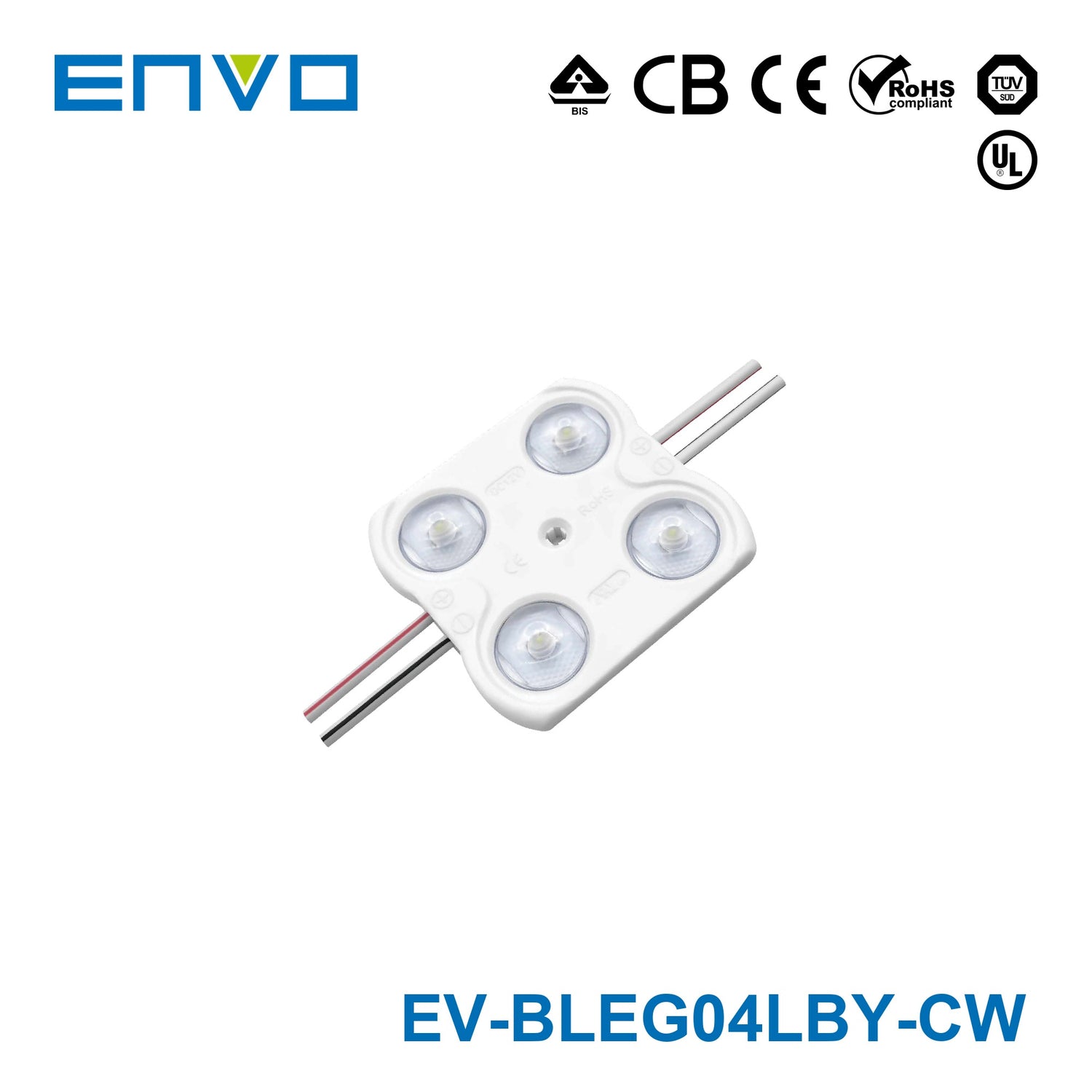

ENVO EcoGlo LED Module Backlit - Quad LED

Name: ENVO EcoGlo LED Module Backlit - Quad LED
Brand: Envo
SKU: EV-BLEG04LBY-CW
Price: 1.25 USD
Availability: InStock

$1.25 USD

Shipping calculated at checkout.

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO EcoGlo Backlit Quad LED module is a cost-effective 12V backlighting solution engineered for illuminated channel letters and wider backlit sign cabinets, delivering higher output from four LEDs across a broad range of sign depths and cabinet sizes. Its wide 170° beam angle disperses light evenly across the sign face, minimising bright spots directly above each module and reducing the number of strings required for consistent, uniform illumination throughout the sign cavity. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 water and dust resistance making it suitable for both indoor and covered outdoor installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 1.6W per module
✓ Beam angle: 170°
✓ Module dimensions: 45 × 43 × 6.2 mm
✓ Max modules per series: 20
✓ Rated current: 0.13A
✓ CRI: 75
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Specifications

Brand

Envo
Series

EcoGlo
Power Rating

1.6 Watt
Rated Current

0.13 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

1.77 in
Width

1.69 in
Height

0.24 in
Weight

0.03 lb

File Downloads

::specification::
