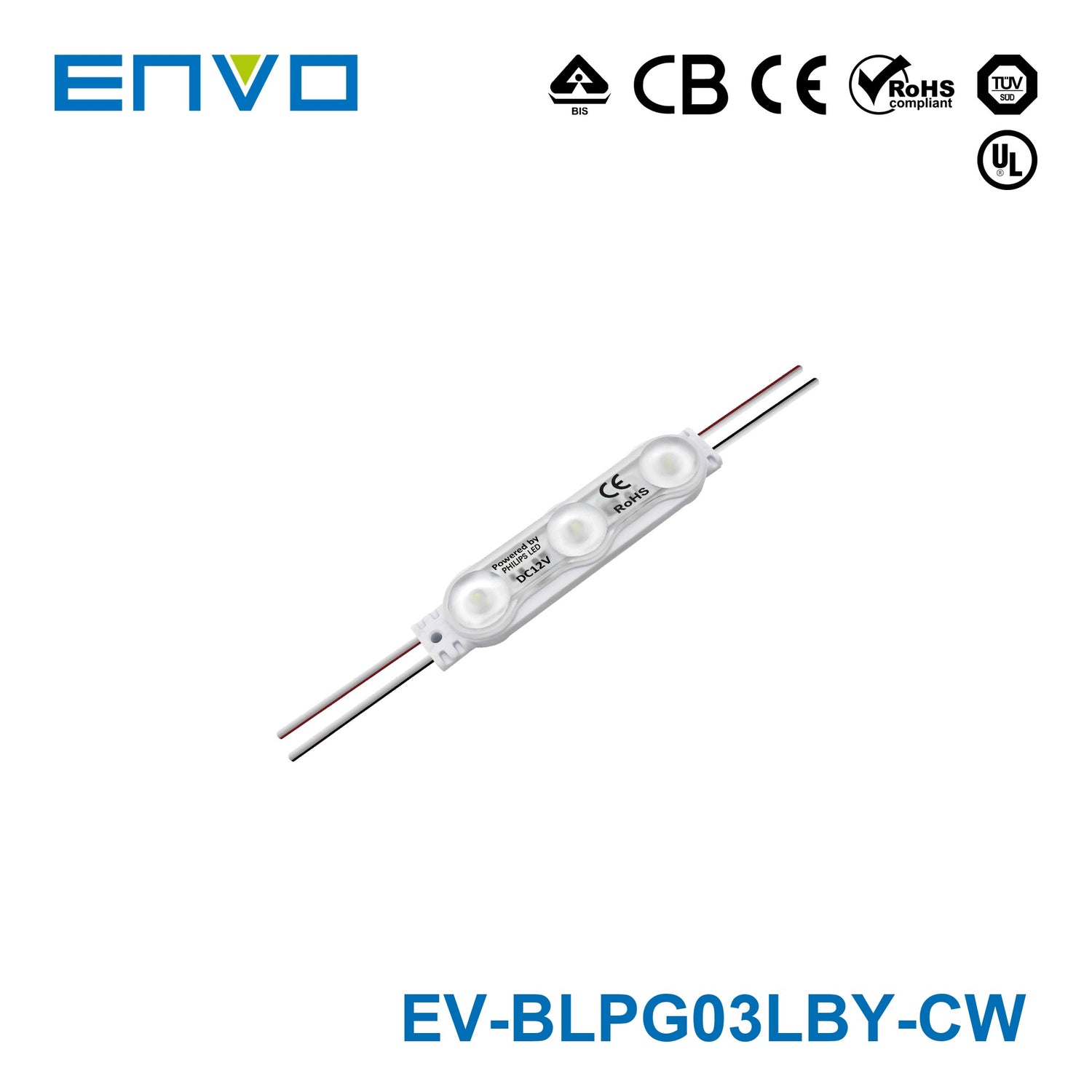

ENVO ProGlo LED Module Backlit - Triple LED

Name: ENVO ProGlo LED Module Backlit - Triple LED
Brand: Envo
SKU: EV-BLPG03LBY-CW
Price: 1.47 USD
Availability: InStock

$1.47 USD

Shipping calculated at checkout.

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO ProGlo Backlit Triple LED module is a commercial-grade 12V backlighting module engineered for illuminated channel letters and backlit sign cabinets where consistent, high-quality output and long service life are essential. Powered by Philips LED chips, it delivers a wide 170° beam that illuminates the sign face evenly and reliably across three LEDs, minimising hotspots above each module and maintaining colour consistency across long runs. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 water and dust resistance making it well suited to both indoor and exposed outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 1.1W per module
✓ Beam angle: 170°
✓ Module dimensions: 78 × 18.5 × 9.6 mm
✓ Module pitch: 173 mm
✓ Max modules per series: 20
✓ Rated current: 0.09A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 7 year warranty

Specifications

Brand

Envo
Series

ProGlo
Power Rating

1.08 Watt
Rated Current

0.09 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

3.07 in
Width

0.73 in
Height

0.38 in
Weight

0.04 lb

File Downloads

::specification::
