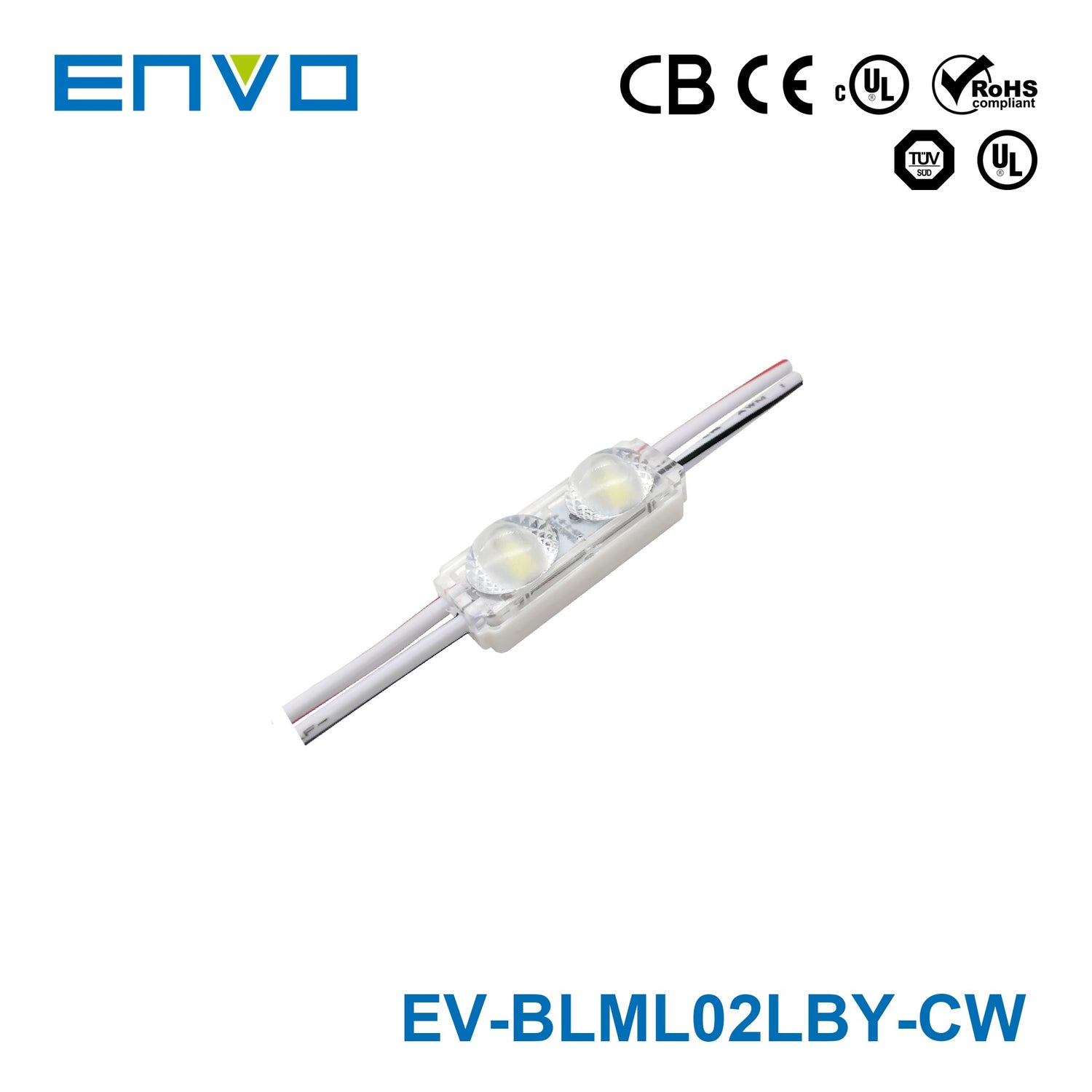

ENVO MiniLux LED Module Backlit - Duo LED

Name: ENVO MiniLux LED Module Backlit - Duo LED
Brand: Envo
SKU: EV-BLML02LBY-CW
Price: 0.76 USD
Availability: InStock

$0.76 USD

Shipping calculated at checkout.

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO MiniLux Backlit Duo LED module is engineered for shallow illuminated channel letters and backlit sign cabinets where space is at a premium, with a recommended lightspace depth of 30–80 mm targeting the tight cavities where standard modules would overcrowd the build or create uneven hotspots. The proprietary Diamondback lens produces a wide 180°×140° dual-axis beam from dual LEDs that spreads light uniformly across the sign face, while the compact footprint and consistent 64 mm pitch provide a predictable layout grid for straightforward string planning in narrow letter returns. Running on a standard 12V DC supply, fully dimmable and IP67 rated, certified to CB, CE, cUL, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 0.48W per module
✓ Beam angle: 180°×140°
✓ Module dimensions: 26 × 9 × 9 mm
✓ Module pitch: 91 mm
✓ Max modules per series: 40
✓ Rated current: 0.04A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, cUL, RoHS, TÜV, UL
✓ 7 year warranty

Specifications

Brand

Envo
Series

MiniLux
Power Rating

0.48 Watt
Rated Current

0.04 Ampere
Standards Met

CB,CE,cUL,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

1.02 in
Width

0.35 in
Height

0.35 in
Weight

0.01 lb

File Downloads

::specification::
