Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

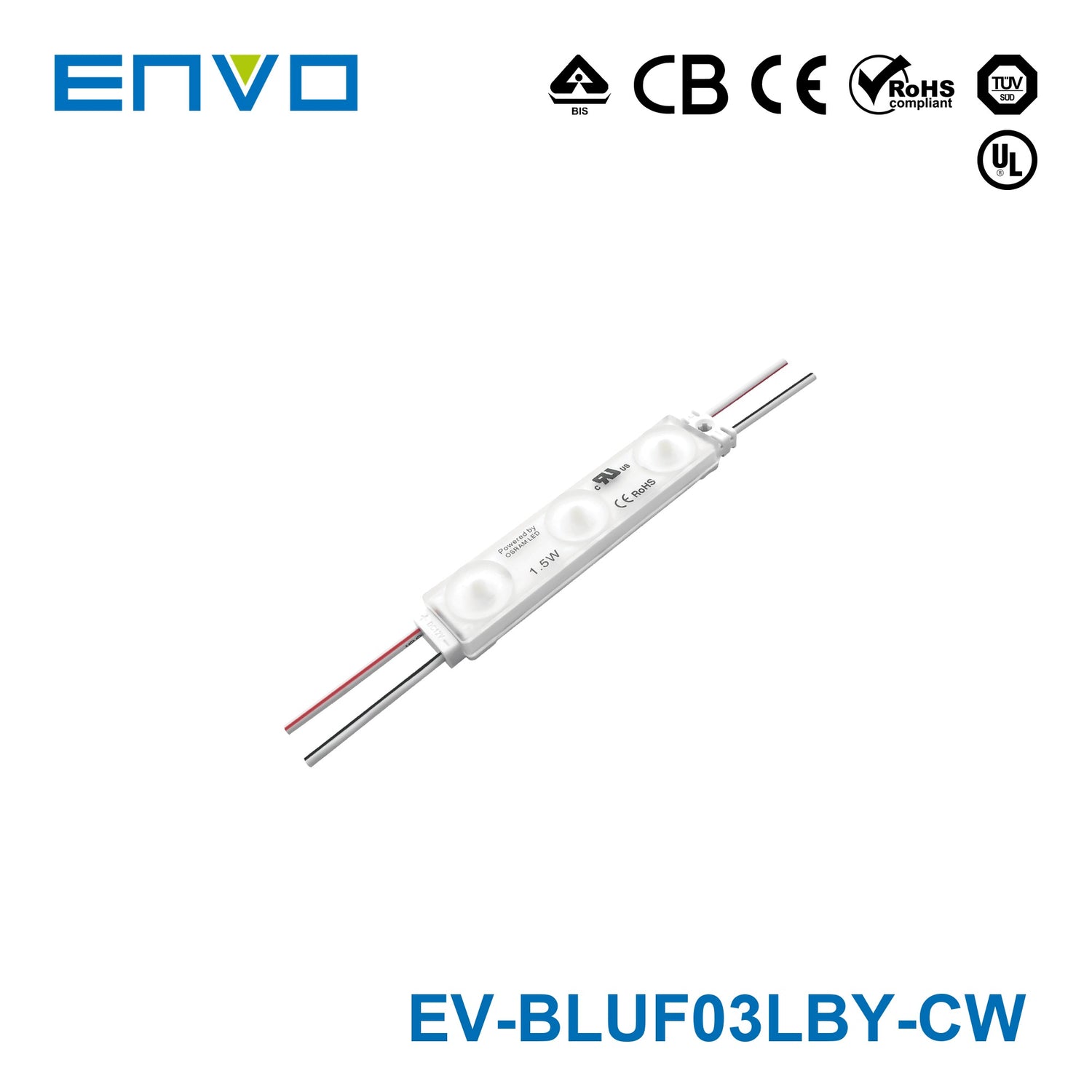

ENVO UltraFlare LED Module Backlit - Triple LED

Name: ENVO UltraFlare LED Module Backlit - Triple LED
Brand: Envo
SKU: EV-BLUF03LBY-CW
Price: 1.63 USD
Availability: InStock

$1.63 USD

Shipping calculated at checkout.

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO UltraFlare Backlit Triple LED module is a high-brightness 12V backlighting module engineered for large channel letters and deep backlit sign cabinets where maximum lumen output per module is required. Its three Osram LEDs produce a wide 170° beam that delivers intense, uniform illumination across wide sign faces, enabling greater spacing between modules and fewer strings without sacrificing evenness or creating hotspots above each unit. Running on a standard 12V DC constant voltage supply and fully dimmable, it carries IP67 ingress protection for demanding indoor and outdoor sign installations, certified to CB, CE, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 1.5W per module
✓ Beam angle: 170°
✓ Module dimensions: 77.8 × 15.4 × 10.4 mm
✓ Module pitch: 209 mm
✓ Max modules per series: 50
✓ Rated current: 0.13A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 8 year warranty

Specifications

Brand

Envo
Series

UltraFlare
Power Rating

1.5 Watt
Rated Current

0.13 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

7 Year
Length

3.06 in
Width

0.61 in
Height

0.41 in
Weight

0.04 lb

File Downloads

::specification::
