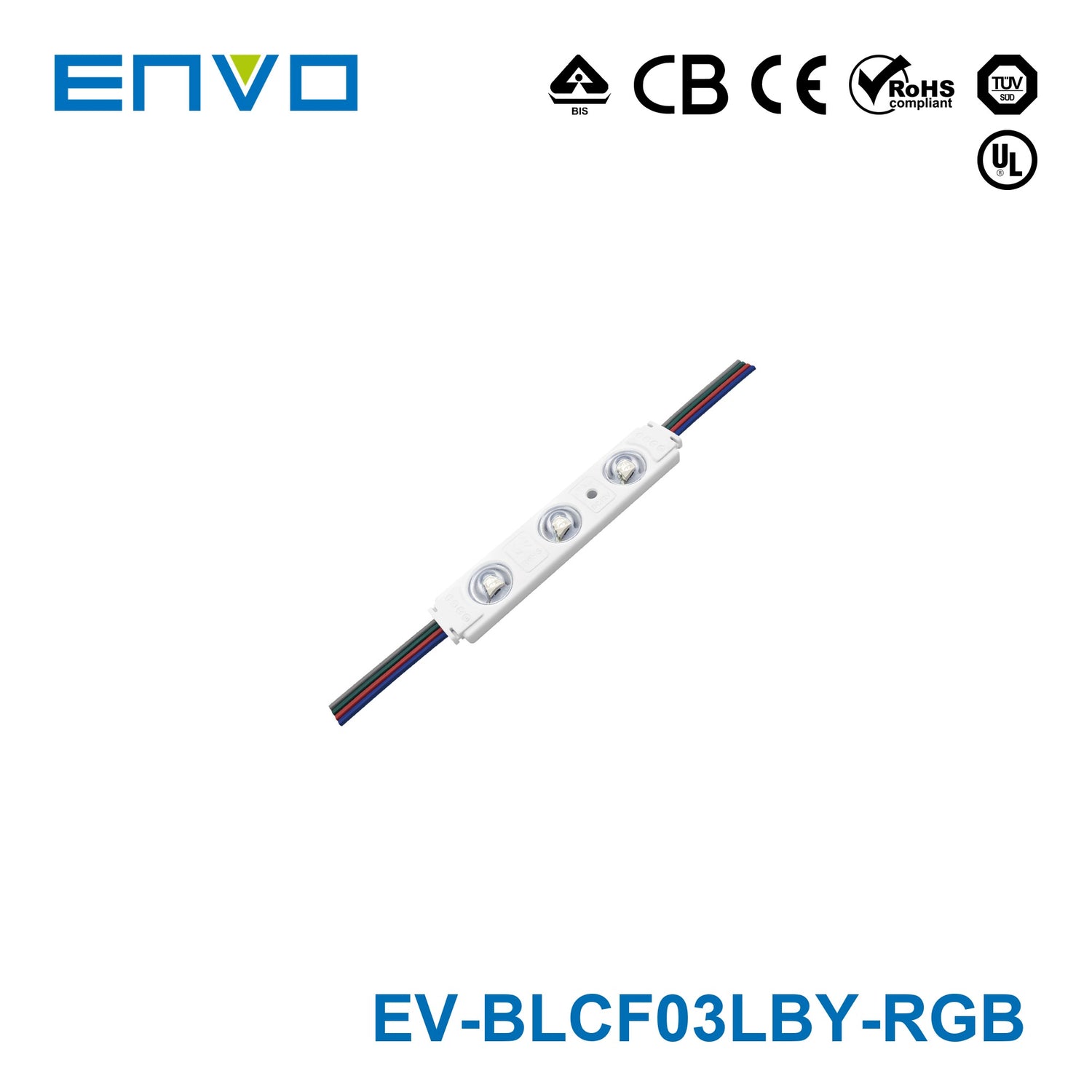

ENVO ChromaFlux LED Module Backlit - Triple LED

Name: ENVO ChromaFlux LED Module Backlit - Triple LED
Brand: Envo
SKU: EV-BLCF03LBY-RGB
Price: 1.44 USD
Availability: InStock

$1.44 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO ChromaFlux Backlit Triple LED RGB module is a 12V colour-changing backlighting module engineered for dynamic illuminated signage and colour-mixed channel letters where vibrant, controllable hues are central to the design. Its three RGB LEDs produce a wide 160° beam that delivers rich, even colour mixing across the sign face, with full dimmability enabling seamless colour transitions, animated sequences, and static colour holds from a single module string. Carrying IP65 water and dust resistance for indoor and outdoor sign installations, it is certified to CB, CE, RoHS, TÜV, and UL standards, making it a reliable platform for architectural, retail, and entertainment signage applications.

Key Features

✓ Input voltage: 12V DC
✓ Power: 0.65W per module
✓ Lumen output: 33 lm
✓ Beam angle: 160°
✓ Module dimensions: 87 × 17.5 × 8.4 mm
✓ Module pitch: 173 mm
✓ Max modules per series: 20
✓ Rated current: 0.054A
✓ CRI: 75
✓ DMX / SPI dimmable
✓ Ingress protection: IP65
✓ Operating temperature: -25°C to +60°C
✓ Colour type: RGB
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Specifications

Brand

Envo
Series

ChromaFlux
Power Rating

0.65 Watt
Rated Current

0.05 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

3.43 in
Width

0.69 in
Height

0.33 in
Weight

0.04 lb

File Downloads
