Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

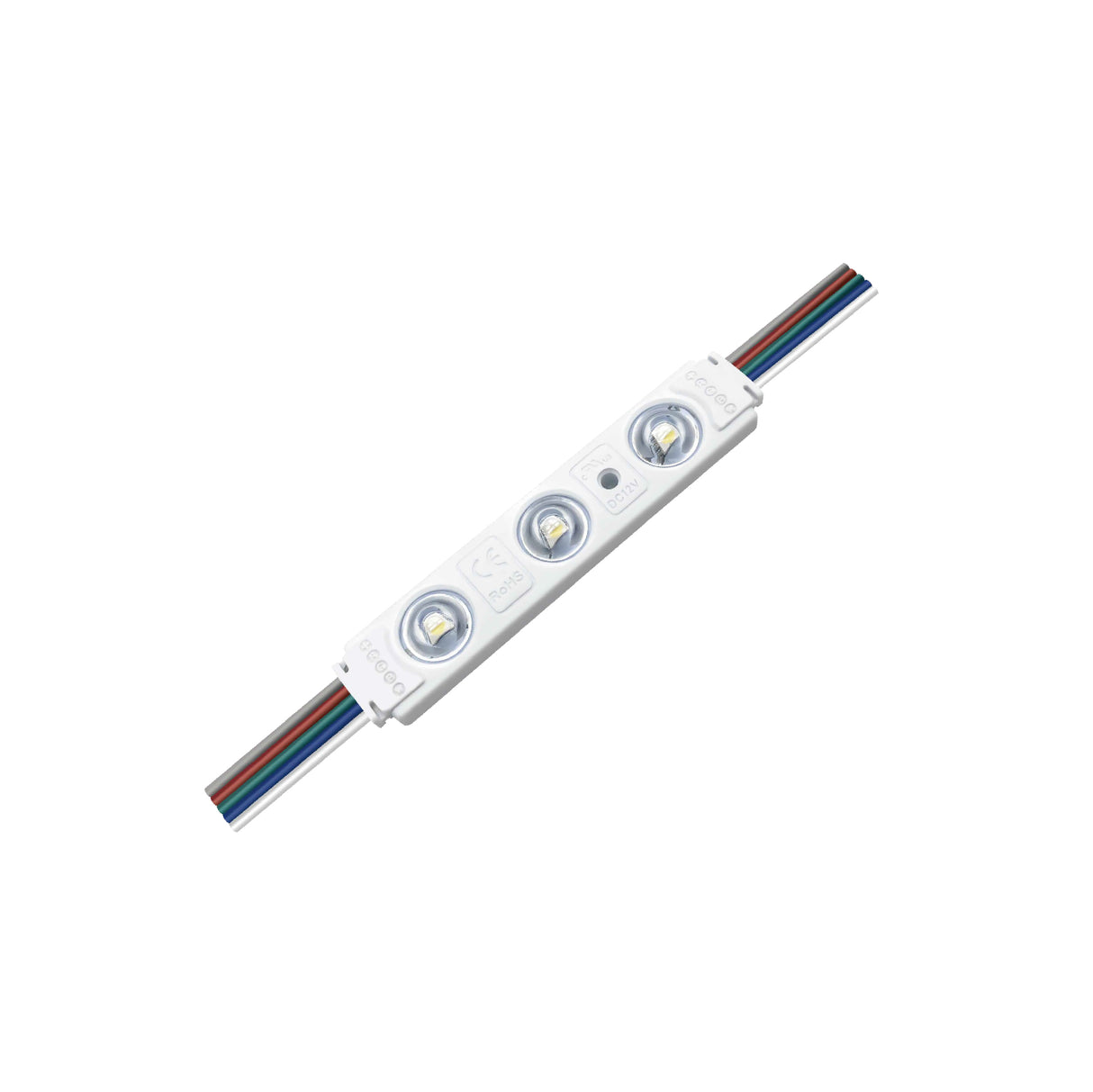

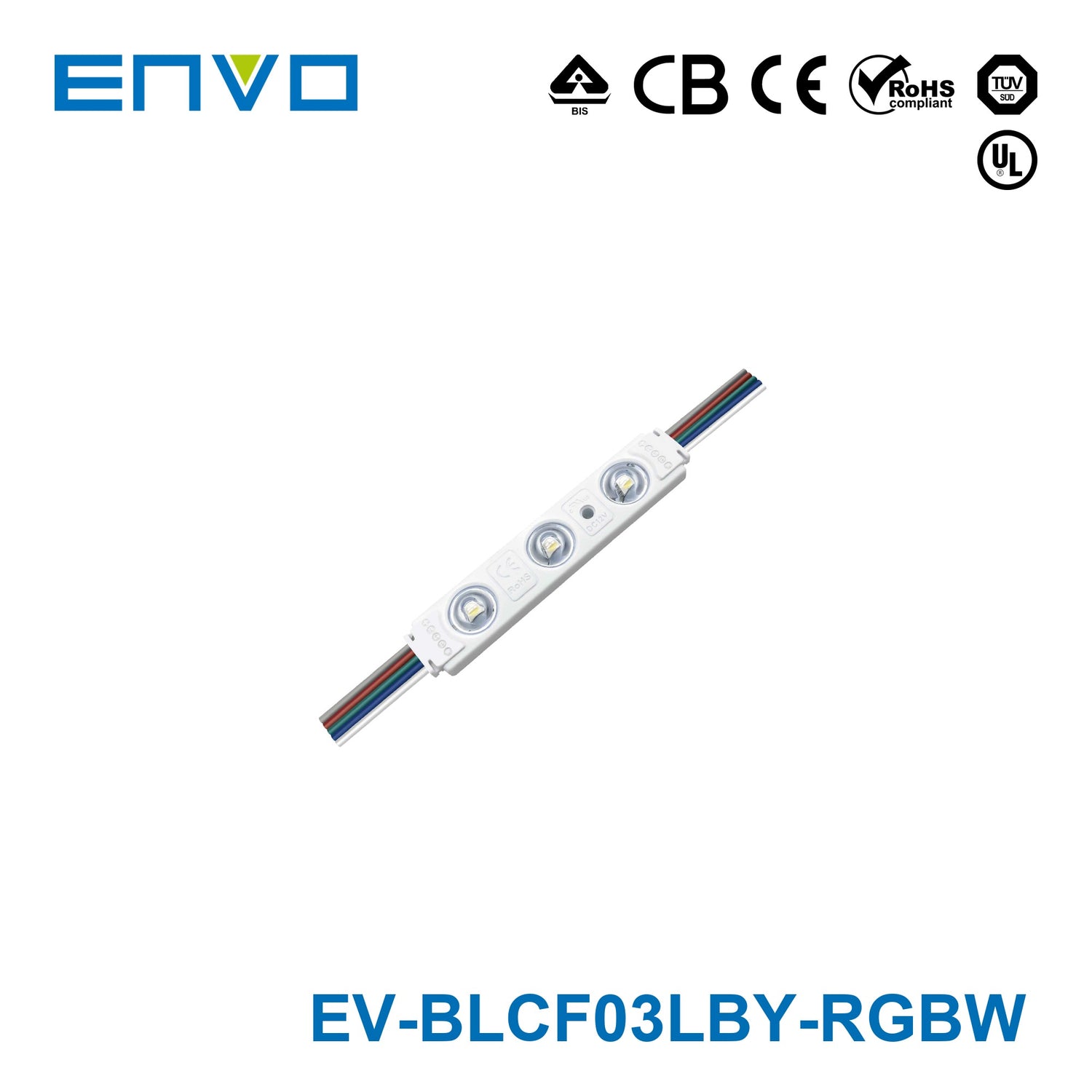

ENVO ChromaFlux LED Module Backlit - Triple LED

Name: ENVO ChromaFlux LED Module Backlit - Triple LED
Brand: Envo
SKU: EV-BLCF03LBY-RGBW
Price: 1.54 USD
Availability: InStock

$1.54 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO ChromaFlux Backlit Triple LED RGBW module is a 12V colour-changing backlighting module engineered for dynamic illuminated signage and colour-mixed channel letters where both saturated hues and clean white tones are required within the same installation. Its three RGBW LEDs produce a wide 160° beam that delivers rich, even colour mixing across the sign face, with the dedicated white element enabling accurate whites and pastel tones that pure RGB modules cannot achieve. Carrying IP65 water and dust resistance for indoor and outdoor sign installations, it is certified to CB, CE, RoHS, TÜV, and UL standards, making it suitable for architectural, retail, and display signage applications.

Key Features

✓ Input voltage: 12V DC
✓ Power: 0.96W per module
✓ Lumen output: 53 lm
✓ Beam angle: 160°
✓ Module dimensions: 87 × 17.5 × 8.4 mm
✓ Module pitch: 173 mm
✓ Max modules per series: 20
✓ Rated current: 0.08A
✓ CRI: 75
✓ DMX / SPI dimmable
✓ Ingress protection: IP65
✓ Operating temperature: -25°C to +60°C
✓ Colour type: RGBW
✓ Safety certifications: CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Specifications

Brand

Envo
Series

ChromaFlux
Power Rating

0.96 Watt
Rated Current

0.08 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

3.43 in
Width

0.69 in
Height

0.33 in
Weight

0.03 lb
