Mean Well

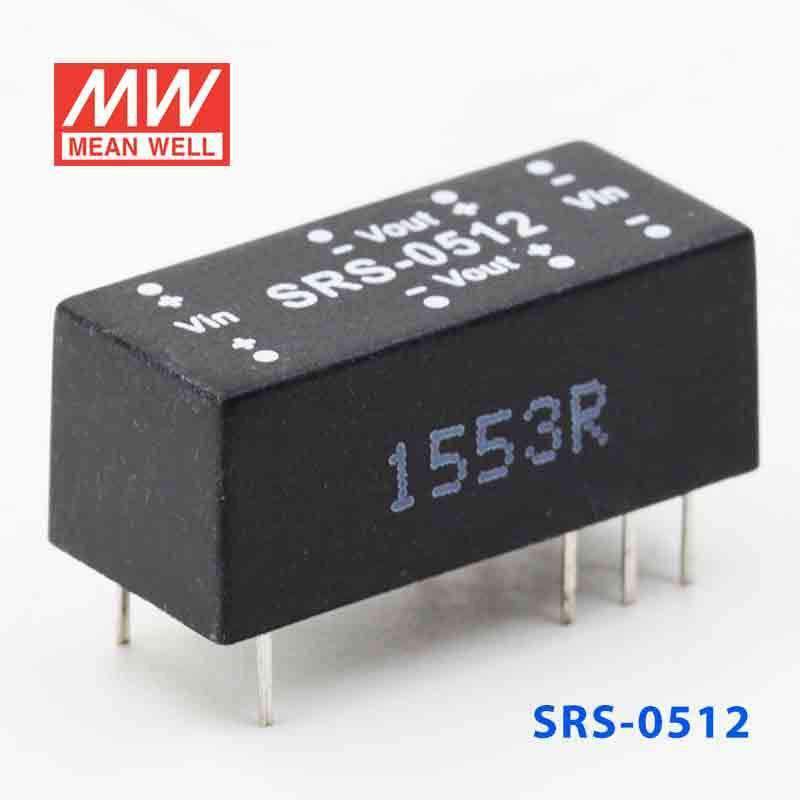

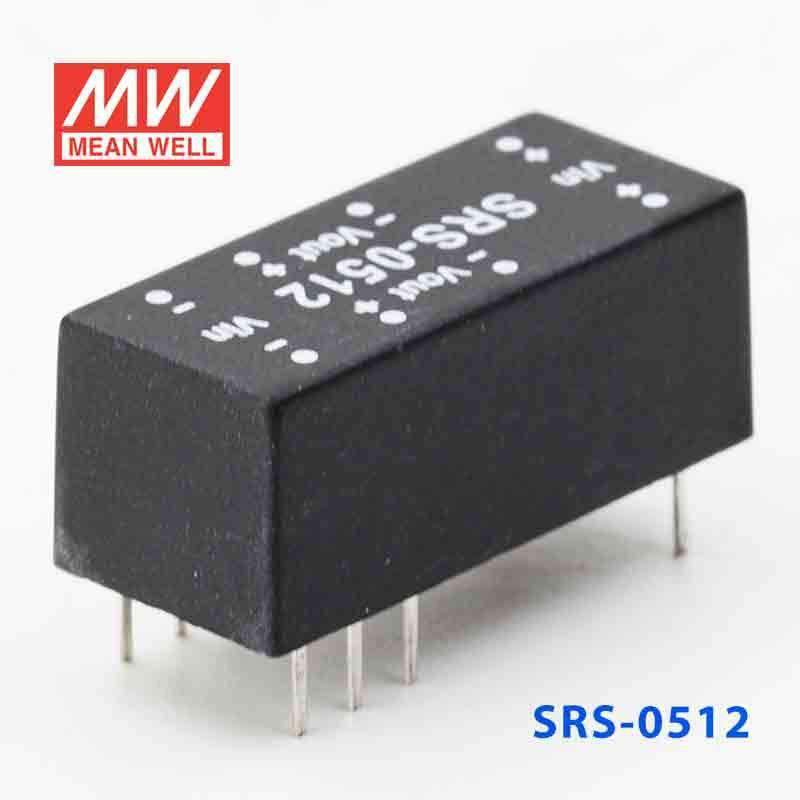

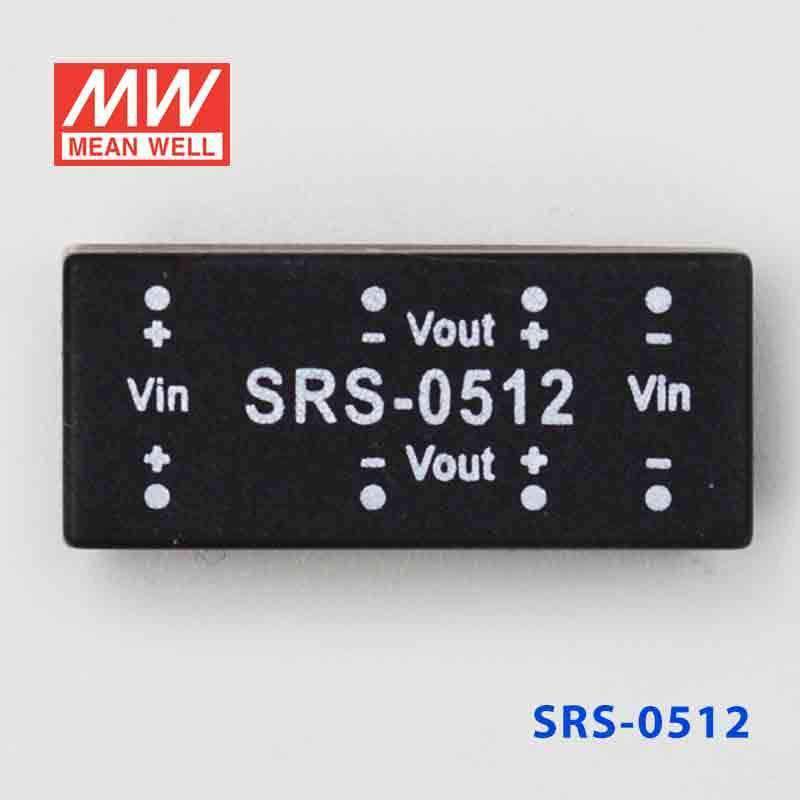

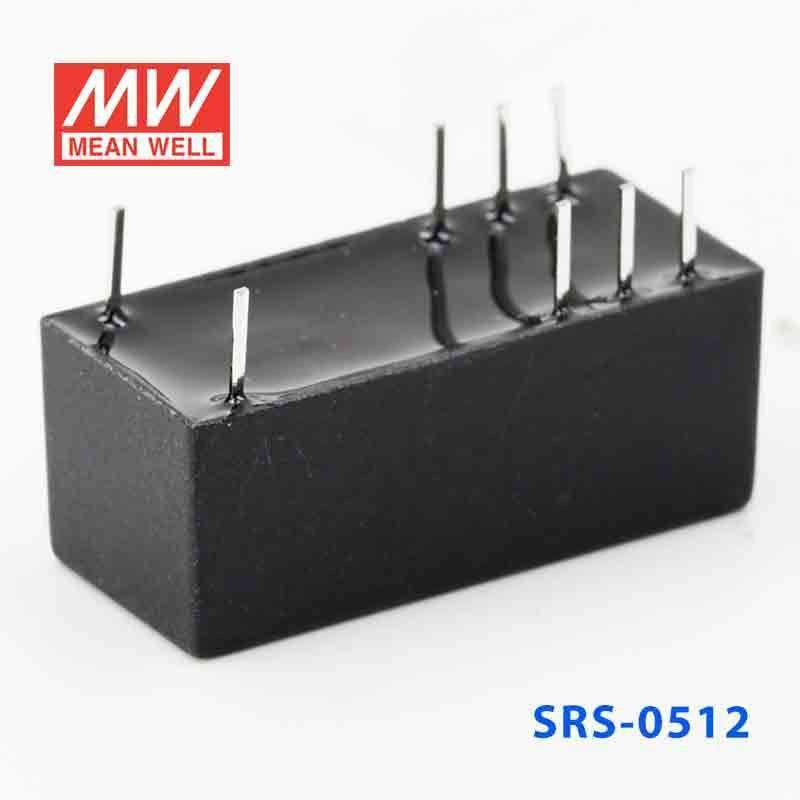

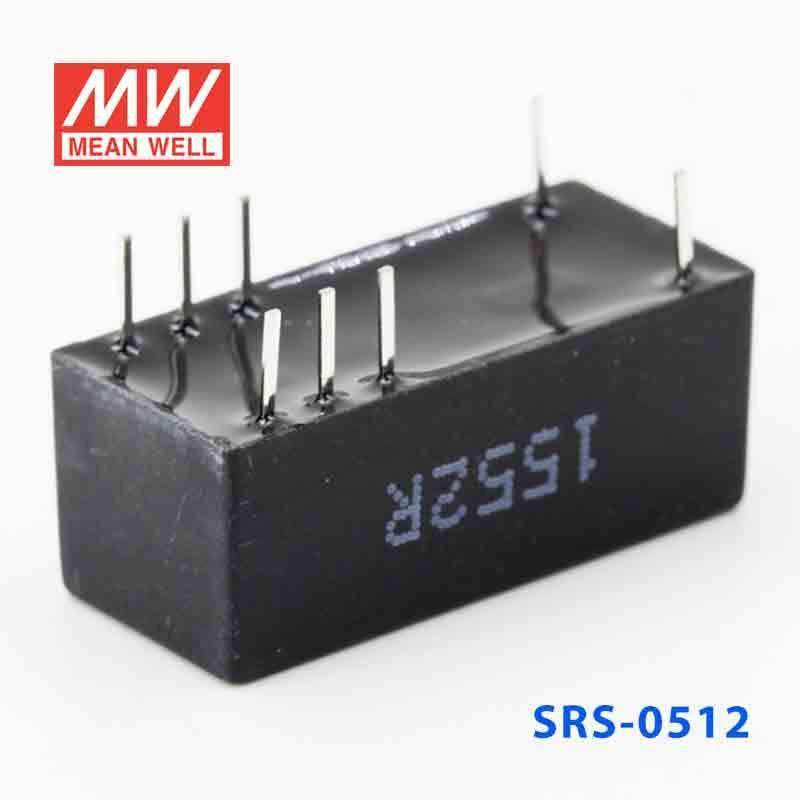

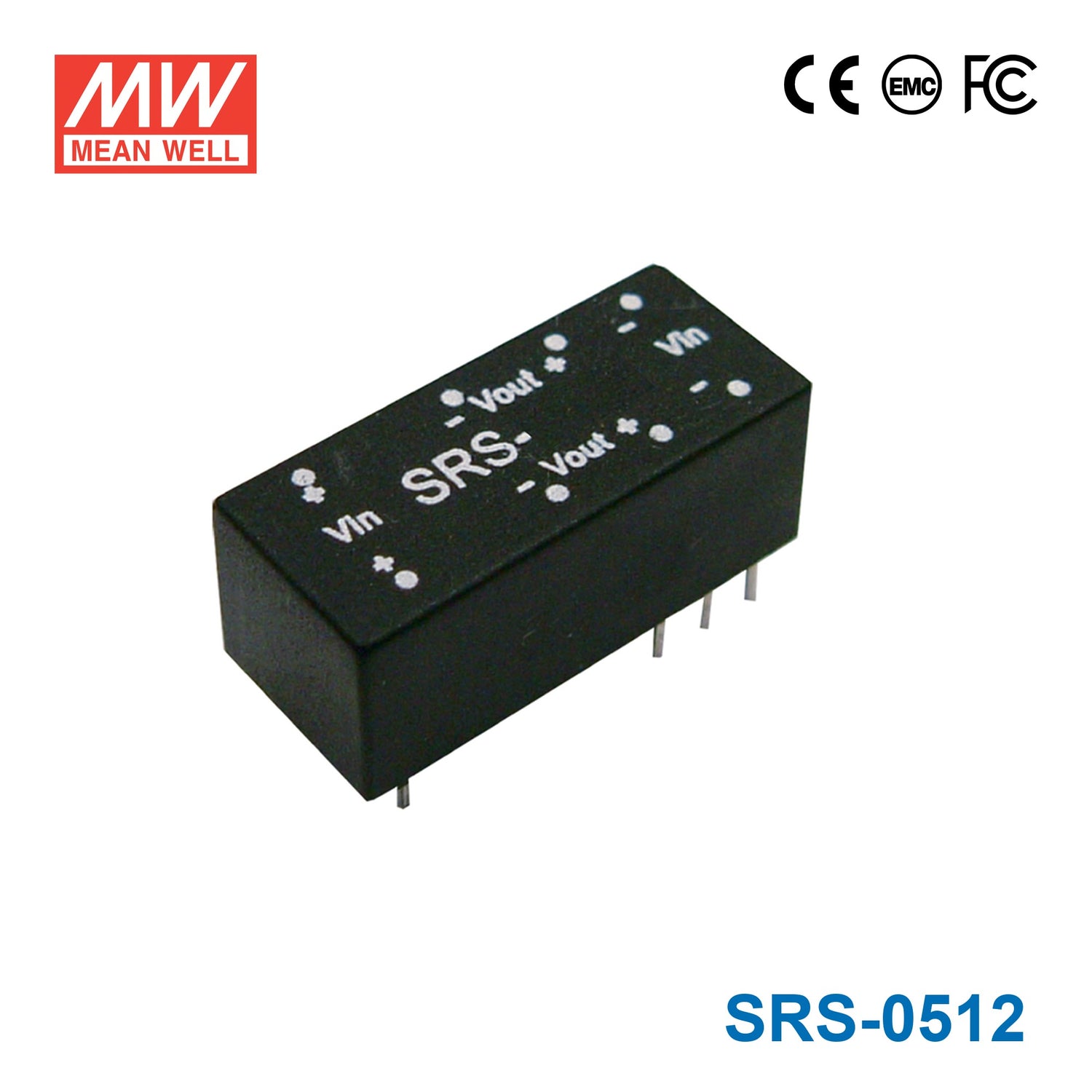

Mean Well SRS-0512 DC-DC Converter - 0.5W - 4.5~5.5V in 12V out

SKU SRS-0512
$4.96 USD
Shipping calculated at checkout.
In stock
|

Overview

SRS-0512 is the 12V output model of this series: rated power 0.5W, typical efficiency 60%.

Features

  • 1500VDC I/O isolation
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • Dual in line package
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

SRS-0512Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
12V
CURRENT RANGE
0 ~ 42mA
EFFICIENCY (TYP.)
60%
RATED POWER
0.5W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATION
±1.0%
LOAD REGULATIONNote.3
±1.0%
VOLTAGE ACCURACY
±2.0%(Typ.) ±3.0%(max.)
SWITCHING FREQUENCY
50KHz min.

INPUT

VOLTAGE RANGE
4.5 ~ 5.5V
NORMAL VOLTAGE
5V
INPUT CURRENT Full load
175mA
INPUT CURRENT No load
37mA
FILTER
Capacitor type
PROTECTION
Fuse recommended

PROTECTION (Note. 4)

OVERLOAD
150 ~ 350% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃(0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
600khrs min. MIL-HDBK-217F(25℃)
DIMENSION
22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
PACKING
3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Load regulation is measured from 10% to 100% rated load.
  4. 4.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SRS-0512 Mechanical Specification
Mechanical Specification
SRS-0512 Packing
Packing

Downloads

FAQ

Can I use the SRS-0512 to generate 12V for a small embedded control circuit from a 4.5~5.5V source?

Yes, this model is intended for low-power constant-voltage conversion from 4.5~5.5V input to 12V output. Its output is limited to 0.5W and 0.04A, so it fits small embedded, signal-conditioning, or control-bias tasks rather than higher-load 12V equipment.

Is the SRS-0512 suitable for industrial sensor or interface boards that only need a light 12V rail?

It can fit that type of use when the 12V side stays within 0.04A and 0.5W. The constant-voltage output makes it better suited to low-demand auxiliary rails on compact industrial or automation electronics than to devices needing more 12V current.

Can the SRS-0512 be used in compact IT or telecom subcircuits where board space is tight?

Its 22.6 × 9.9 × 8.9 mm body is sized for very compact electronics, and the unit weighs 3.1g. That makes it practical for dense low-power support circuitry where a small 12V rail is needed from a 4.5~5.5V input range.

Is the SRS-0512 appropriate for outdoor or harsh-environment use?

The published specs show an operating range of -25°C to +71°C, but no IP rating is listed. That supports use inside protected equipment or enclosures, not exposed outdoor locations where ingress protection would need to be specified.

How does the SRS-0512 compare with other SRS output options?

The SRS series offers 0.5W models at 5V, 9V, 12V, and 15V outputs. For the 12V output, the SRS-0512 (5V input) has a current range of 0 ~ 42mA. Other 12V models include SRS-1212 (12V input), SRS-2412 (24V input), and SRS-4812 (48V input), all with the same 0 ~ 42mA current range.
