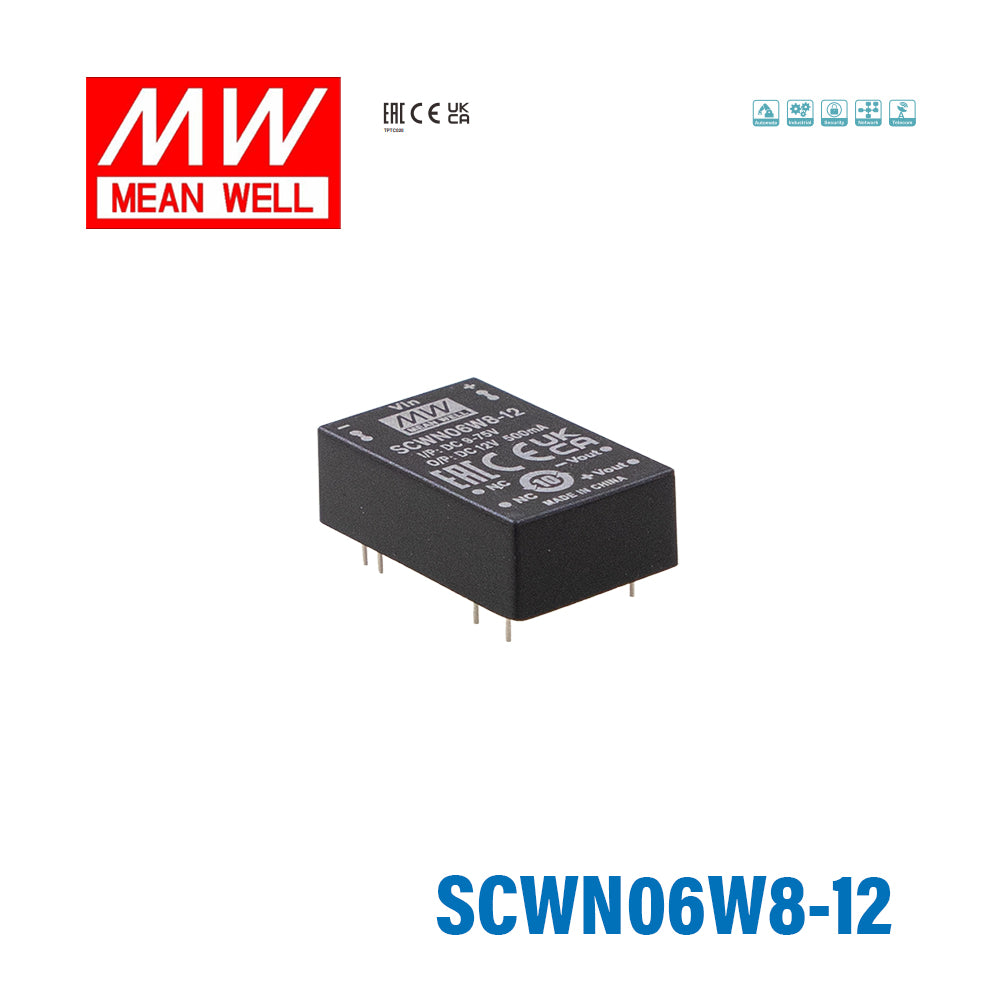

Mean Well SCWN06W8-12 DC-DC Converter - 6W 9~75V DC in 12V out 500mA

Name: Mean Well SCWN06W8-12 DC-DC Converter - 6W 9~75V DC in 12V out 500mA
Brand: Mean Well
SKU: SCWN06W8-12
Price: 10.7 USD
Availability: InStock

$10.70 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well SCWN06W8-12 is a 6W isolated and regulated DC-DC converter in a DIP-24 package, supplying 12V DC. Its ultra-wide 9~75VDC input spans a broad range in a single part number, simplifying designs that must tolerate an unstable or widely-varying DC supply.

Rated from -40°C to 95°C with free-air convection cooling, it includes short circuit, overload and over-voltage protection and carries CE and EAC approvals. Backed by a 3-year warranty.

Key Features

✓DIP24 package with industry standard pinout
✓8:1(9-75Vdc) ultra-wide input range
✓Operating temperature range -40 - +95℃
✓No minimum load required
✓Comply to BS EN/EN55032 radiated Class B without additional components
✓High efficiency up to 86%
✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
✓Remote ON/OFF control (Optional)
✓3KVdc I/O isolation
✓3 years warrantyGeneral Specification:

Specifications

Brand

Mean Well
Series

SCWN Series
Power Rating

6 Watt
Output Voltage

12 Volt
Rated Current

0.00 Ampere
Input Voltage

9V~75V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~95°C
Warranty

3 Year
Length

1.25 in
Width

0.8 in
Height

0.4 in
Weight

0.03 lb

File Downloads

::specification::
