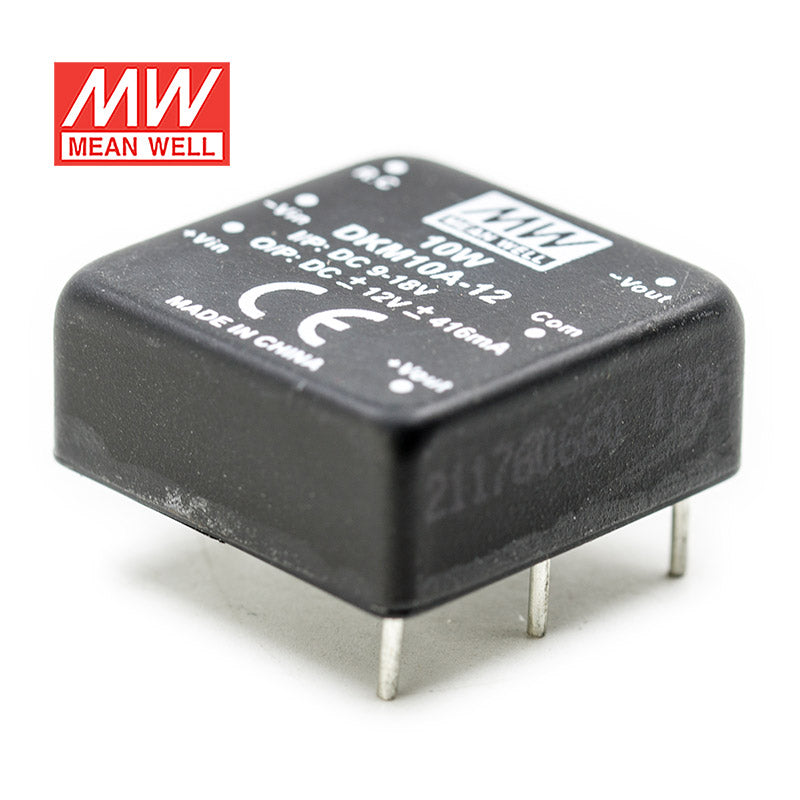

Mean Well DKM10A-12 DC-DC Converter - 10W - 9~18V in ±12V out

Name: Mean Well DKM10A-12 DC-DC Converter - 10W - 9~18V in ±12V out
Brand: Mean Well
SKU: DKM10A-12
Price: 23.93 USD
Availability: InStock

$23.93 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to EN55032 radiated Class A without additional components
High efficiency up to 90%
Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output (±10%)
3 years warranty

Applications

Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch

Specifications

Brand

Mean Well
Series

DKM Series
Power Rating

10 Watt
Output Voltage

12 Volt
Rated Current

0.41 Ampere
Input Voltage

9V~18V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

1 in
Width

1 in
Height

0.4 in
Weight

0.04 lb
